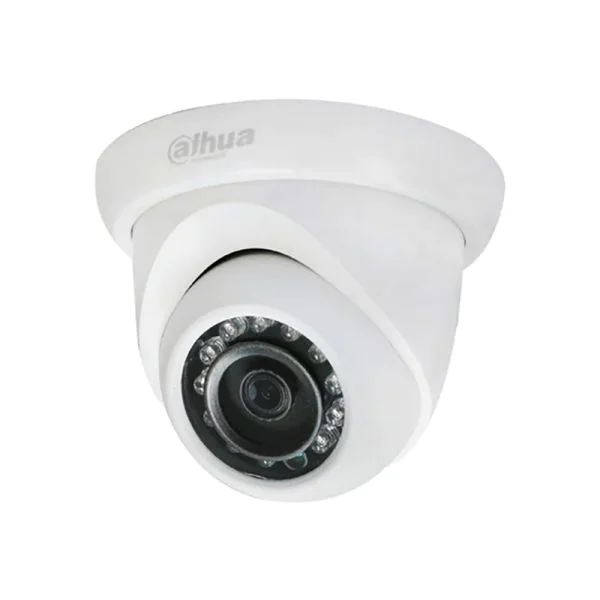

The Dahua IPC-HDW1230S-S2 is a high-performance 2MP IR Eyeball Network Camera designed for superior surveillance and security applications. Known for its reliable and advanced network capabilities, this model ensures clear and high-quality video footage even in low light conditions, making it a versatile choice for various environments. Enhance your security setup with this feature-rich, dependable camera from Dahua.
Quick Spec
| Resolution | 2MP (1920×1080) |
| Lens Type | 3.6mm fixed lens |
| IR Range | Up to 30 meters |
| Video Compression | H.265+/H.265 |
| Power Supply | DC 12V/PoE |
Product Features
- 2MP high resolution for clear and detailed images
- IR LED for improved night vision up to 30 meters
- Durable IP67 weather-proof housing
- Supports H.265+ video compression for efficient storage
- Easy installation with PoE (Power over Ethernet) support
Product Applications
- Home security for monitoring entrances and outdoor areas
- Commercial properties needing reliable day/night surveillance
- Public spaces such as parks or streets for enhanced security
Supported Options
| Mounting Bracket | PFB203W |
| Junction Box | PFA130-E |
| Wall Mount | PFB204W |
Compare to Similar Items
| Model | Differences |
| IPC-HDW1230T-S2 | Turret design, similar specs, different form factor |
| IPC-HDW2231R-ZS | Higher 3MP resolution, motorized lens for zoom |

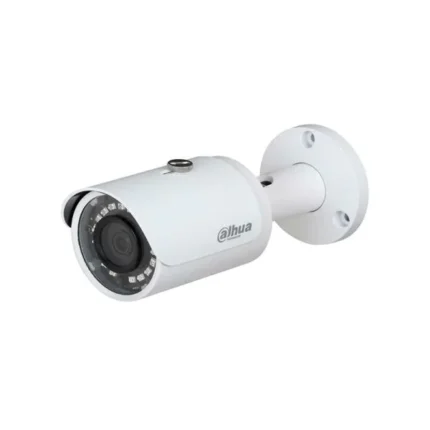

| IPC-HFW1230S-S4 | Bullet design, similar resolution, extended IR range |
Get more information
Check Dahua IPC-HDW1230S-S2 price and IPC-HDW1230S-S2 datasheet, buy Dahua IPC-HDW1230S-S2 with best price and fast shipping. Free Live Chat are supported. For further details and pricing, please get in touch via Live Chat or email us at sales@router-switch.com.
Dahua HDW1230S-S2 Specification
IPC-HDW1230S-S2 Specifications |
|
| Brand | Dahua |
| Model | IPC-HDW1230S-S2 |
| Camera Type | IR Eyeball Network Camera |
| Resolution | 2MP (1920 x 1080) |
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Lens Type | Fixed lens, 2.8mm |
| Field of View | Horizontal: 103��, Vertical: 54��, Diagonal: 125�� |
| Minimum Illumination | 0.01 Lux@F2.0 (Color), 0 Lux with IR |
| Infrared Distance | Up to 30 meters (98 ft) |
| Day/Night | Auto(ICR) / Color / B/W |
| WDR | Digital WDR |
| Noise Reduction | 3D DNR |
| Ethernet | RJ-45 (10/100Base-T) |
| Power Supply | DC12V, PoE (802.3af) |
| Power Consumption | Max 3.8W (12V DC, IR on), Max 5.5W (PoE, IR on) |
| Operating Temperature | -30��C to +60��C (-22��F to 140��F) |
| Ingress Protection | IP67 |
| Dimensions | ��110mm x 96mm (��4.33″ x 3.78″) |
| Audio Interface | N/A |
| Alarm Interface | N/A |
| Video Compression | H.265, H.264 |
| Smart Features | Motion Detection, Region of Interest (RoI), Smart IR |
