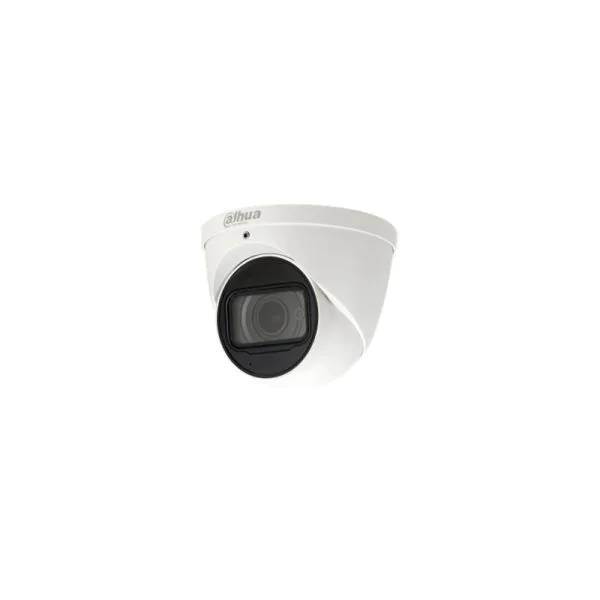

IPC-HDW5231R-ZE,with upgraded H.265 encoding technology, Eco-savvy series brings high efficient video compression capability. It can save bandwidth and storage. Meanwhile, the series features starlight, smart IR technology and intelligent image analysis techniques. This series supports reminder function, meanwhile fully protected from dust and water, certified to IP67 and vandal resistant to IK10 standard.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
IPC-HDW5231R-ZE |
|
Image Sensor |
1/2.8” 2Megapixel progressive scan CMOS |
|
Effective Pixels |
1920(H) x 1080(V) |
|
RAM/ROM |
256MB/32MB |
|
Electronic Shutter Speed |
Auto/Manual, 1/3~1/100000s |
|
Minimum Illumination |
0.006Lux/F1.6 ( Color,1/3s,30IRE) 0.05Lux/F1.6 ( Color,1/30s,30IRE) 0Lux/F1.6 (IR on) |
|
Casing |
Metal |
|
Dimensions |
��122mmx104mm( 4.8”x4.09”) |
Product Details
TheIPC-HDW5231R-ZE provides these features:
* 1/2.8”2Megapixel progressive scan STARVISTMCMOS
* H.265&H.264 triple-stream encoding
* 50/60fps@1080(1920×1080)
* Smart Detection supported
* WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
* Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
* 2.7mm ~13.5mm motorized lens
* Max. IR LEDs Length 50m
* Micro SD card memory, IP67, PoE
Compare to Similar Items
Table 2shows the comparison.
|
Product Code |
IPC-HDW5231R-ZE |
|
|
Image Sensor |
1/3″3Megapixel progresive CMOS |
1/2.8” 2Megapixel progressive scan CMOS |
|
Effective Pixels |
2304(H) x1536(V) |
1920(H) x 1080(V) |
|
RAM/ROM |
256MB/16MB |
256MB/32MB |
|
Minimum Illumination |
0.1Lux/F2.0(Color), 0Lux/F2.0(IR on) |
0.006Lux/F1.6 ( Color,1/3s,30IRE) 0.05Lux/F1.6 ( Color,1/30s,30IRE) 0Lux/F1.6 (IR on) |
|
IR Distance |
Distance up to 30m(98ft) |
Distance up to 50m(164ft) |
|
IR On/Off Control |
Auto/ Manual |
Auto/ Manual |
|
IR LEDs |
18 |
2 |
|
Lens Type |
Fixed |
Motorized/ Auto Iris(DC) |
|
Focal Length |
3.6mm |
2.7mm~13.5mm |
|
Max Aperture |
F2.0 |
F1.6 |
|
Angle of View |
H:77��,V:40.5�� |
H: 101��~31��, V:54��~17�� |
|
Focus Control |
Fixed |
Motorized |
|
Close Focus Distance |
N/A |
0.3m |
|
Compression |
H.264+/H.264 |
H.265+/H.265/H.264+/H.264 |
|
Streaming Capability |
2 Streams |
3 Streams |
|
Casing |
Metal+Plastic |
Metal |
|
Dimensions |
��108mmx84.9mm(4.25”x3.15”) |
��122mmx104mm(4.8”x4.09”) |
GetMoreInformation
Do you have anyquestionabouttheIPC-HDW5231R-ZE
Contact us now via Live Chat or sales@router-switch.com.
Dahua HDW5231R-ZE Specification
IPC-HDW5231R-ZE Specification |
|||||
|
Camera |
|||||
|
Image Sensor |
1/2.8” 2Megapixel progressive scan CMOS |
||||
|
Effective Pixels |
1920(H) x 1080(V) |
||||
|
RAM/ROM |
256MB/32MB |
||||
|
Scanning System |
Progressive |
||||
|
Electronic Shutter Speed |
Auto/Manual, 1/3~1/100000s |
||||
|
Minimum Illumination |
0.006Lux/F1.6 ( Color,1/3s,30IRE) 0.05Lux/F1.6 ( Color,1/30s,30IRE) 0Lux/F1.6 (IR on) |
||||
|
S/N Ratio |
More than 50dB |
||||
|
IR Distance |
Distance up to 50m(164ft) |
||||
|
IR On/Off Control |
Auto/ Manual |
||||
|
IR LEDs |
2 |
||||
|
Lens |
|||||
|
Lens Type |
Motorized/ Auto Iris(DC) |
||||
|
Mount Type |
Board-in |
||||
|
Focal Length |
2.7mm~13.5mm |
||||
|
Max. Aperture |
F1.6 |
||||
|
Angle of View |
H: 101°~31°, V:54°~17° |
||||
|
Optical Zoom |
5x |
||||
|
Focus Control |
Motorized |
||||
|
Close Focus Distance |
0.3m |
||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
|
W |
44m(144ft) |
18m(59ft) |
9m(29ft) |
4m(13ft) |
|
|
T |
143m(469ft) |
57m(187ft) |
28m(92ft) |
14m(46ft) |
|
|
Pan/Tilt/Rotation |
|||||
|
Pan/Tilt/Rotation Range |
Pan:0˚~360˚; Tilt:0˚~78˚; Rotation:0˚~360˚ |
||||
|
Intelligence |
|||||
|
IVS (optional) |
Tripwire, Intrusion, Object Abandoned/Missing |
||||
|
Advanced Intelligent Functions |
Face Detection |
||||
|
Video |
|||||
|
Compression |
H.265+/H.265/H.264+/H.264 |
||||
|
Streaming Capability |
3 Streams |
||||
|
Resolution |
1080P(1920×1080)/1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)/VGA(640×480)/CIF(352×288/352×240) |
||||
|
Frame Rate
|
Main Stream: 1080P(1~50/60fps) |
||||
|
Sub Stream: D1(1~50/60fps) |
|||||
|
Third Stream: 1080P(1~25/30fps) |
|||||
|
Bit Rate Control |
CBR/VBR |
||||
|
Bit Rate |
H.264: 24~9472Kbps H.265: 14~5632Kbps |
||||
|
Day/Night |
Auto(ICR) / Color / B/W |
||||
|
BLC Mode |
BLC / HLC / WDR(120dB) |
||||
|
White Balance |
Auto/Natural/Street Lamp/Outdoor/Manual |
||||
|
Gain Control |
Auto/Manual |
||||
|
Noise Reduction |
3D DNR |
||||
|
Motion Detection |
Off / On (4 Zone, Rectangle) |
||||
|
Region of Interest |
Off / On (4 Zone) |
||||
|
Electronic Image Stabilization (EIS) |
N/A |
||||
|
Smart IR |
Support |
||||
|
Defog |
N/A |
||||
|
Digital Zoom |
16x |
||||
|
Flip |
0°/90°/180°/270° |
||||
|
Mirror |
Off / On |
||||
|
Privacy Masking |
Off / On (4 Area, Rectangle) |
||||
|
Audio |
|||||
|
Compression |
G.711a/ G.711Mu/ AAC/ G.726 |
||||
|
Network |
|||||
|
Ethernet |
RJ-45 (10/100Base-T) |
||||
|
Protocol |
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;IGMP; SNMP |
||||
|
Interoperability |
ONVIF, PSIA, CGI |
||||
|
Streaming Method |
Unicast / Multicast |
||||
|
Max. User Access |
10 Users /20 Users |
||||
|
Edge Storage |
NAS Local PC for instant recording Mirco SD card 128GB |
||||
|
Web Viewer |
IE, Chrome, Firefox, Safari |
||||
|
Management Software |
Smart PSS, DSS, Easy4ip |
||||
|
Smart Phone |
IOS, Android |
||||
|
Certifications |
|||||
|
Certifications
|
CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B |
||||
|
Interface |
|||||
|
Video Interface |
N/A |
||||
|
Audio Interface |
Built-in Mic |
||||
|
RS485 |
N/A |
||||
|
Alarm |
N/A |
||||
|
Electrical |
|||||
|
Power Supply |
DC12V, PoE(802.3af)(Class 0) |
||||
|
Power Consumption |
<8.5W |
||||
|
Environmental |
|||||
|
Operating Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
||||
|
Strorage Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
||||
|
Ingress Protection |
IP67 |
||||
|
Vandal Resistance |
N/A |
||||
|
Construction |
|||||
|
Casing |
Metal |
||||
|
Dimensions |
Φ122mmx104mm( 4.8”x4.09”) |
