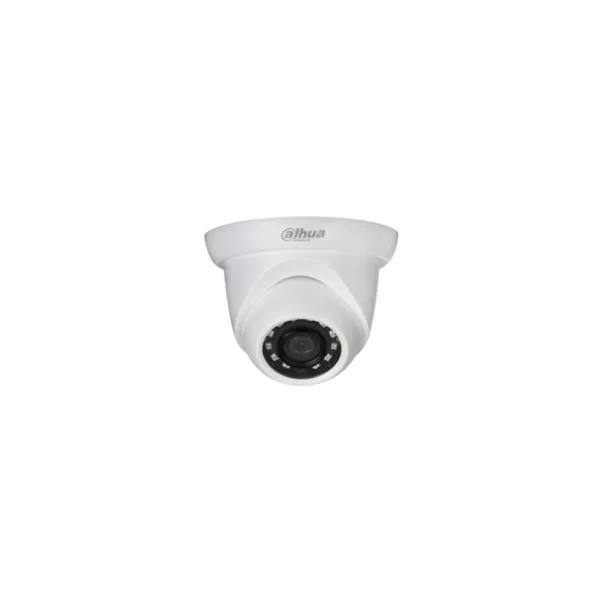

IPC-HDW1320S,the IR Megapixel Fixed Eyeball camera delivers 3MP resolution with a choice of 3.6mm lens options. The camera’s elegant blend of aesthetics combined with its compact form factor provides an excellent choice for a variety of small to mid-size, indoor/outdoor applications at an affordable price.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
IPC-HDW1320S |
|
Image Sensor |
1/3″3Megapixel progresive CMOS |
|
Effective Pixels |
2304(H) x1536(V) |
|
RAM/ROM |
256MB/16MB |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
0.1Lux/F2.0(Color), 0Lux/F2.0(IR on) |
|
Casing |
Metal+Plastic |
|
Dimensions |
��108mmx84.9mm(4.25”x3.15”) |
Product Details
TheIPC-HDW1320S provides these features:
* 1/3″ 3Megapixel progressive CMOS
* H.264+ & H.264 dual-stream encoding
* 20fps@3M(2048×1536) &25/30fps@2M(1920×1080)
* DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
* Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
* Max IR LEDs Length 30m
* IP67, PoE
Compare to Similar Items
Table 2shows the comparison.
|
Product Code |
IPC-HDW1320S |
|
|
Image Sensor |
1/3″3Megapixel progresive CMOS |
1/2.8” 2Megapixel progressive scan CMOS |
|
Effective Pixels |
2304(H) x1536(V) |
1920(H) x 1080(V) |
|
RAM/ROM |
256MB/16MB |
256MB/32MB |
|
Minimum Illumination |
0.1Lux/F2.0(Color), 0Lux/F2.0(IR on) |
0.006Lux/F1.6 ( Color,1/3s,30IRE) 0.05Lux/F1.6 ( Color,1/30s,30IRE) 0Lux/F1.6 (IR on) |
|
IR Distance |
Distance up to 30m(98ft) |
Distance up to 50m(164ft) |
|
IR On/Off Control |
Auto/ Manual |
Auto/ Manual |
|
IR LEDs |
18 |
2 |
|
Lens Type |
Fixed |
Motorized/ Auto Iris(DC) |
|
Max Aperture |
F2.0 |
F1.6 |
|
Angle of View |
H:77��,V:40.5�� |
H: 101��~31��, V:54��~17�� |
|
Focus Control |
Fixed |
Motorized |
|
Close Focus Distance |
N/A |
0.3m |
|
Compression |
H.264+/H.264 |
H.265+/H.265/H.264+/H.264 |
|
Streaming Capability |
2 Streams |
3 Streams |
|
Casing |
Metal+Plastic |
Metal |
|
Dimensions |
��108mmx84.9mm (4.25”x3.15”) |
��122mmx104mm ( 4.8”x4.09”) |
GetMoreInformation
Do you have anyquestionabouttheIPC-HDW1320S
Contact us now via Live Chat or sales@router-switch.com.
Dahua HDW1320S Specification
IPC-HDW1320SÂ Specification |
|
|
Camera |
|
|
Image Sensor |
1/3″Â 3Megapixel progresive CMOS |
|
Effective Pixels |
2304(H) x1536(V) |
|
RAM/ROM |
256MB/16MB |
|
Scanning System |
Progressive |
|
Minimum Illumination |
0.1Lux/F2.0(Color), 0Lux/F2.0(IR on) |
|
S/N Ratio |
More than 50dB |
|
IR Distance |
Distance up to 30m(98ft) |
|
IR On/Off Control |
Auto/ Manual |
|
IR LEDs |
18 |
|
Lens |
|
|
Lens Type |
Fixed |
|
Mount Type |
Board-in |
|
Max Aperture |
F2.0 |
|
Angle of View |
H:77°,V:40.5° |
|
Focus Control |
Fixed |
|
Close Focus Distance |
N/A |
|
PTZ |
|
|
Pan/Tilt Range |
Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360° |
|
Video |
|
|
Compression |
H.264+/H.264 |
|
Streaming Capability |
2 Streams |
|
Resolution |
3M(2048×1536(2304×1296)/1080P(1920×1080)/Â 720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240) |
|
Frame Rate  |
3M(1 ~ 20fps)/2M (1 ~ 25/30fps) |
|
D1/CIF(1 ~ 25/30fps) |
|
|
Bit Rate Control |
CBR/VBR |
|
Bit Rate |
H264:24K ~ 8192Kbps |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
BLC Mode |
BLC / HLC / DWDR |
|
White Balance |
Auto/Natural/Street Lamp/Outdoor/Manual |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
3D DNR |
|
Motion Detection |
Off / On (4 Zone, Rectangle) |
|
Region of Interest |
Off / On (4 Zone) |
|
Electronic Image |
Support |
|
Smart IR |
Support |
|
Digital Zoom |
16x |
|
Flip |
0°/90°/180°/270° |
|
Mirror |
Off / On |
|
Privacy Masking |
Off / On (4 Area, Rectangle) |
|
Audio |
|
|
Compression |
N/A |
|
Network |
|
|
Ethernet |
RJ-45 (10/100Base-T) |
|
Protocol |
HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;Bonjour;802.1x;Multicast;ICMP;IGMP; |
|
Interoperability |
ONVIF, PSIA, CGI |
|
Streaming Method |
Unicast / Multicast |
|
Max. User Access |
10 Users /20 Users |
|
Edge Storage |
NAS(Network Attached Storage),Local PC for instant recording |
|
Web Viewer |
IE, Chrome, Firefox, Safari |
|
Management Software |
Smart PSS, DSS,Easy4ip |
|
Smart Phone |
iPhone, iPad, Android Phone |
|
Certifications |
|
|
Certifications  |
CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B |
|
Interface |
|
|
Video Interface |
N/A |
|
Audio Interface |
N/A |
|
RS485 |
N/A |
|
Alarm |
N/A |
|
Electrical |
|
|
Power Supply |
DC12V PoE (802.3af)(Class 0) |
|
Power Consumption |
<6.4W |
|
Environmental |
|
|
Operating Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|
Strorage Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|
Ingress Protection |
IP67 |
|
Vandal Resistance |
N/A |
|
Construction |
|
|
Casing |
Metal+Plastic |
|
Dimensions |
Φ108mmx84.9mm(4.25”x3.15”) |
