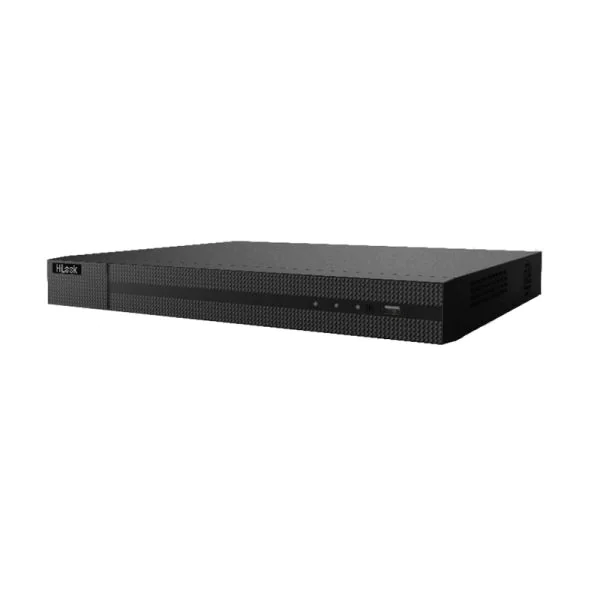

The Hikvision DVR-224G-K2 is a versatile 24-channel DVR designed to deliver superior surveillance solutions for both residential and commercial use. Featuring 1080p Lite resolution and advanced H.265 video compression technology, this 1U DVR offers efficient storage management without compromising on video quality. The DVR-224G-K2 ensures comprehensive security monitoring with its robust performance and reliable construction.
Quick Spec
| Channels | 24 |
| Resolution | 1080p Lite |
| Video Compression | H.265 |
| Form Factor | 1U |
| Storage Capacity | Up to 10TB |
Product Features
- Supports 24 video channels for extensive coverage
- 1080p Lite resolution providing clear and crisp video playback
- Advanced H.265 video compression for optimized storage usage
- 1U form factor allowing easy installation in rack mounts
- Compatible with various PTZ protocols enabling flexible control and monitoring
Product Applications
- Residential security systems for monitoring homes, garages, and perimeters
- Commercial surveillance in retail stores, offices, and warehouses
- Public area monitoring such as parks, schools, and community centers
Supported Options
| Hard Disk Drive | WD Purple 6TB |
| Camera | Hikvision DS-2CE56H5T-ITM |
| Power Supply | Hikvision DS-1H18 |
Compare to Similar Items
| Model | Differences |
| Hikvision DVR-216G-K1 | 16 channels, H.264 video compression, 1U |
| Hikvision DVR-232G-K3 | 32 channels, H.265+, 2U |
| Hikvision DS-7208HUHI-K1 | 8 channels, 4K UHD support, 1U |
Get more information
For more information about the Hikvision DVR-224G-K2, feel free to contact us via Live Chat or email us at sales@router-switch.com. Check Hikvision DVR-224G-K2 price and DVR-224G-K2 datasheet, buy Hikvision DVR-224G-K2 with best price and fast shipping. Free Live Chat is supported.
Hikvision DVR-224G-K2 Specification
DVR-224G-K2 Specifications |
|
| Brand | Hikvision |
| Model | DVR-224G-K2 |
| Channels | 24 |
| Resolution | 1080p Lite |
| Form Factor | 1U |
| Compression | H.265 |
| Video Input | 24 channels |
| Video Output | 1 HDMI, 1 VGA |
| Audio Input | 1 Channel |
| Audio Output | 1 Channel |
| Network Interface | 1 RJ-45 10/100 Mbps Ethernet Interface |
| USB Interface | 2 x USB 2.0 |
| Power Supply | 12V DC |
| Operating Temperature | -10C to 55C (14F to 131F) |
| Dimensions (W x D x H) | 315 x 242 x 45 mm |
| Storage Capacity | Up to 4TB per Disk |
| Alarm In/Out | 4/1 |
| Supported HDD | 2 SATA Interface |
| Max Remote Connection | 128 |
| Playback Resolution | 720p, 1080p Lite |
| Backup Mode | USB Device/Network |
| Operating System | Embedded Linux |
