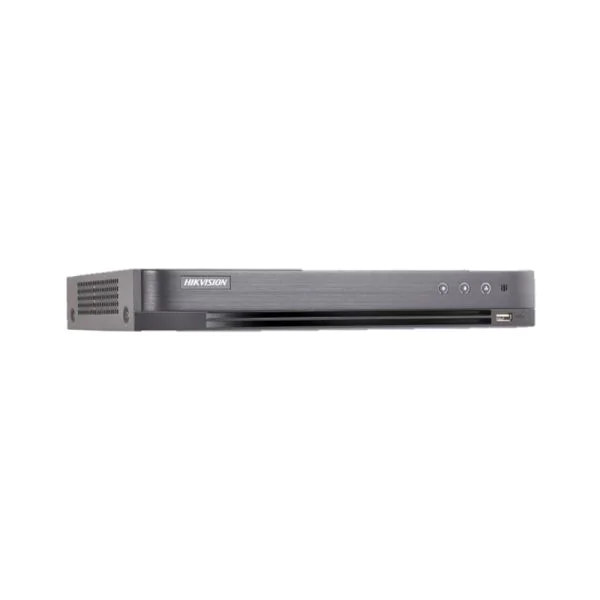

The Hikvision DS-7224HQHI-K2 is a high-performance 24-channel 1080p 1U H.265 DVR designed for robust video surveillance applications. Offering crystal clear recording with efficient H.265 compression, this DVR is perfect for a variety of demanding environments and ensures prolonged recording time through its advanced video encoding technology.
Quick Spec
| Brand | Hikvision |
| Model | DS-7224HQHI-K2 |
| Channels | 24 |
| Resolution | 1080p |
| Compression | H.265 |
Product Features
- Supports 1080p lite and 720p lite recording
- HDMI and VGA output at up to 19201080 resolution
- Advanced motion detection recording and smart search
- Up to 4-ch synchronous playback
- 1U chassis design saves rack space
Product Applications
- Retail stores requiring multi-camera security setups
- Office buildings for centralized surveillance management
- Industrial facilities needing high-quality video for monitoring
Supported Options
| Remote Controller | DS-RC001 |
| Hard Disk Drive | DS-SD001 |
| HDMI Cable | DS-HDMI010 |
Compare to Similar Items
| Model | Difference |
| DS-7208HQHI-K1 | 8 channels, lower storage capacity |
| DS-7216HQHI-K2 | 16 channels, compact form factor |
| DS-7324HQHI-K4 | 4K resolution support, higher cost |
Get more information
Get more information about the Hikvision DS-7224HQHI-K2 by contacting us through Live Chat or at sales@router-switch.com. Check Hikvision DS-7224HQHI-K2 price and DS-7224HQHI-K2 datasheet, buy Hikvision DS-7224HQHI-K2 DVR with the best price and fast shipping. Free Live Chat support is available.
Hikvision DS-7224HQHI-K2 Specification
DS-7224HQHI-K2 Specifications |
|
| Brand | Hikvision |
| Model | DS-7224HQHI-K2 |
| Channels | 24 |
| Recording Resolution | 1080p |
| Compression | H.265 |
| Form Factor | 1U |
| Video Input Interface | BNC |
| HDMI Output Resolution | 4K (3840 2160) |
| VGA Output Resolution | 1920 1080 |
| Audio Input | 4 Channel |
| Audio Output | 1 Channel |
| Storage Capacity | Up to 16 TB |
| SATA Interfaces | 2 SATA Interfaces |
| Network Interface | 1 RJ-45 10/100/1000 Mbps Ethernet Interface |
| USB Interfaces | 2 USB 2.0 |
| Power Supply | 12 VDC, 2.5 A |
| Power Consumption | 20 W (without HDD) |
| Operating Temperature | -10C to +55C (14F to 131F) |
| Operating Humidity | 10% to 90% |
| Dimensions (WDH) | 380 320 45 mm (15.0 12.6 1.8 inch) |
