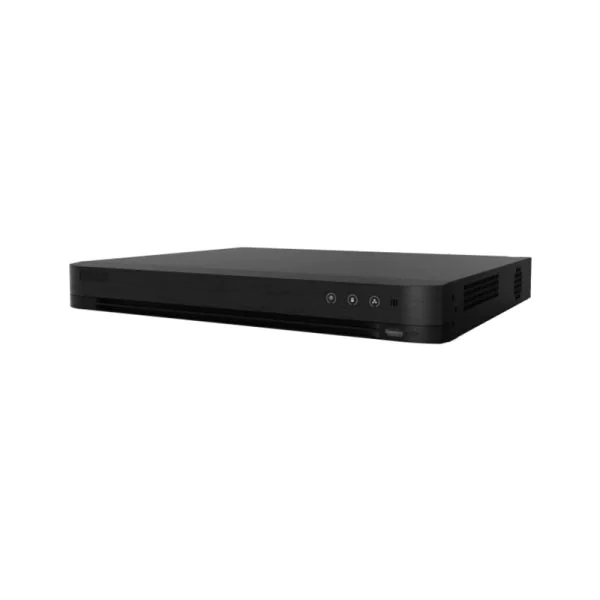

The Hikvision DS-7224HGHI-K2 is a professional-grade 24-channel 1080p Lite 1U H.265 DVR designed to deliver efficient and reliable video surveillance. This device leverages advanced H.265 video compression technology to provide superior quality while minimizing storage requirements. Its perfect for various surveillance scenarios, offering comprehensive security solutions for both small and large-scale installations.
Quick Spec
| Brand | Hikvision |
| Product Name | DS-7224HGHI-K2 |
| Channels | 24 |
| Resolution | 1080p Lite |
| Compression | H.265 |
Product Features
- 24-Channel input for comprehensive surveillance coverage.
- Supports H.265 compression for efficient storage usage.
- 1080p Lite resolution for clear and detailed video footage.
- Real-time recording with up to 15 fps per channel.
- 1U chassis design, ideal for space-constrained installations.
Product Applications
- Retail Stores: Monitor activities across multiple sections to enhance security and prevent theft.
- Warehouses: Maintain high-quality surveillance over vast areas and stock sections for loss prevention.
- Office Buildings: Ensure secure access and monitor critical areas with high-definition video recording.
Supported Options
| Accessory | Model |
| HDD | WD30EFRX |
| Power Supply | PS5VDC2A |
| Rack Mount Kit | RAIK1U |
Compare to Similar Items
| Model | Differences |
| DS-7216HGHI-K1 | 16 channels, no 1080p Lite support. |
| DS-7232HGHI-K2 | 32 channels, same compression but larger storage needs. |
| DS-7208HGHI-F1 | 8 channels, supports only H.264 compression. |
Get more information
For further information about the Hikvision DS-7224HGHI-K2, including pricing and datasheets, please contact us through Live Chat or email us at sales@router-switch.com. Check Hikvision DS-7224HGHI-K2 price and DS-7224HGHI-K2 datasheet, buy Hikvision DS-7224HGHI-K2 with the best price and fast shipping. Free Live Chat is supported.
Hikvision DS-7224HGHI-K2 Specification
DS-7224HGHI-K2 Specifications |
|
| Brand | Hikvision |
| Model | DS-7224HGHI-K2 |
| Channels | 24 |
| Max Resolution | 1080p Lite |
| Video Compression | H.265 |
| Form Factor | 1U |
| Interface Type | BNC |
| Video Input Interface | 24 BNC Interface (1.0Vp-p, 75 ) |
| Audio Input | 4-ch RCA (2.0Vp-p, 1K) |
| Audio Output | 1-ch RCA (Linear, 1K) |
| HDMI Output | 1-ch, 1920×1080/60Hz |
| VGA Output | 1-ch, 1920×1080/60Hz |
| Network Interface | 1 RJ-45 10/100/1000 Mbps Ethernet Interface |
| SATA | 2 SATA Interfaces |
| USB Interface | 2 USB 2.0 Ports |
| Power Supply | 12V DC |
| Power Consumption | 40W (without HDD) |
| Working Temperature | -10C ~ +55C (14F ~ 131F) |
| Dimensions | 315 242 45 mm (12.4 9.5 1.8 inch) |
| Alarm Input | 16-ch |
| Alarm Output | 4-ch |
