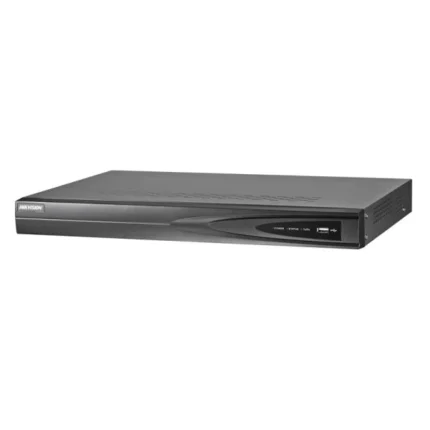

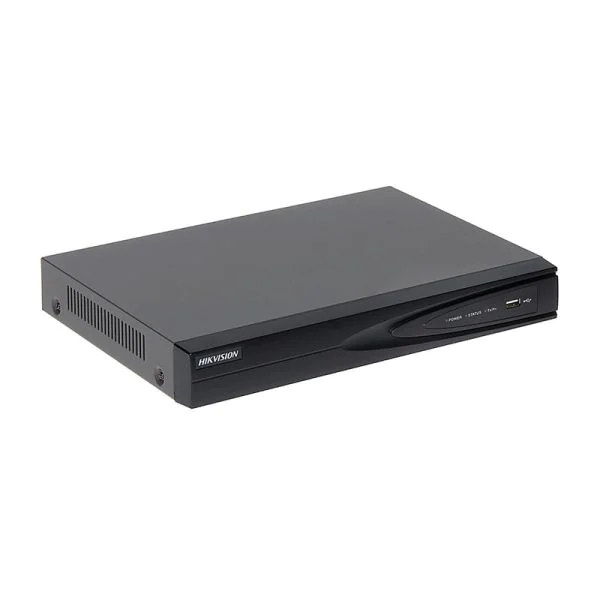

4-ch 1U 4 PoE 4K NVR
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
DS-7604NI-K1/4P |
|
IP Video Input |
4-ch |
|
Incoming Bandwidth |
40 Mbps |
|
Outgoing Bandwidth |
80 Mbps |
|
Power Supply |
48 VDC, 1.35 A |
|
Consumption |
10 W (without enabling PoE) |
|
Dimension (W D H) |
320 240 48 mm (12.4″ 9.4″ 1.9″) |
Product Details
DS-7604NI-K1/4P provides these features and benefits:
Up to 4-ch IP camera inputs
H.265+/H.265/H.264+/H.264 video formats
Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
Up to 40 Mbps incoming bandwidth
Get More Information
Do you have any question about the DS-7604NI-K1/4P
Contact us now via Live Chat or sales@router-switch.com.
Hikvision DS-7604NI-K1/4P Specification
DS-7604NI-K1/4P Specification |
|
|
Model |
DS-7604NI-K1/4P |
|
Video And Audio |
|
|
IP Video Input |
4-ch |
|
Incoming Bandwidth |
40 Mbps |
|
Outgoing Bandwidth |
80 Mbps |
|
HDMI Output |
4K??span>4096×2160??span>/30Hz??span>4K (3840Ă—2160) /30Hz, 2K??span>2560Ă—1440??span>/60Hz??span>1920Ă—1080/60Hz??span>1600Ă—1200/60Hz??span>1280Ă—1024/60Hz??span>1280Ă—720/60Hz |
|
VGA Output |
1920*1080/60Hz??span>1280*1024/60Hz??span>1280*720/60Hz |
|
Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
|
Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1kΩ) |
|
Decoding |
|
|
Decoding Format |
H.265+/H.265/H.264+/H.264 |
|
Decoding Capability |
1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) |
|
Synchronous Playback |
4-ch |
|
Recording Resolution |
8MP/6MP/5MP/4MP/ 3MP/1080p/UXGA/720p/ VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
Network |
|
|
Network Protocol |
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP?? HTTPS |
|
Network Interface |
1, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
|
PoE |
|
|
Interface |
4-ch |
|
Power |
??span> 50 W |
|
Standard |
IEEE 802.3 af/at |
|
RAID |
|
|
RAID Type |
No |
|
Auxiliary Interface |
|
|
SATA |
1 |
|
Capacity |
Up to 8TB capacity for each disk |
|
USB Interface |
2 Ă— USB 2.0 |
|
Alarm In/Out |
N/A (4/1 is optional) |
|
General |
|
|
Power Supply |
48 VDC, 1.35 A |
|
Consumption |
??span> 10 W (without enabling PoE) |
|
Working Temperature |
-10 to +55° C (14 to 131° F) |
|
Working Humidity |
10 to 90 % |
|
Chassis |
1U |
|
Dimension (W Ă— D Ă— H) |
320 Ă— 240 Ă— 48 mm (12.4″ Ă— 9.4″ Ă— 1.9″) |
