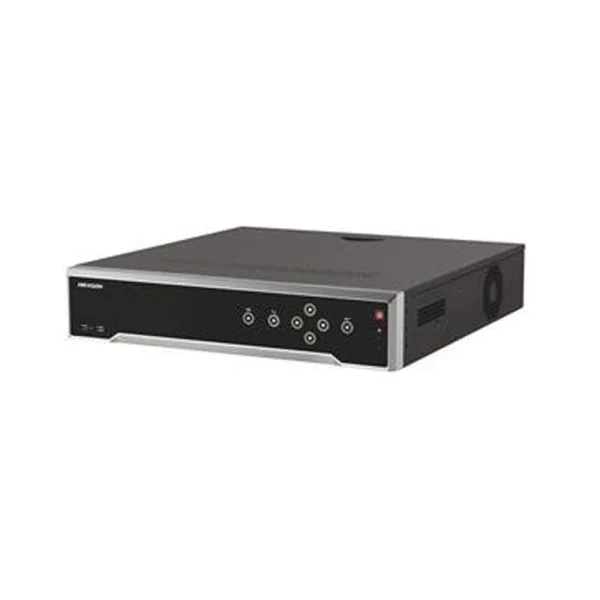

Professional DS-86 I Series, 256/256 Mbps In/Out Bandwidth, 1080p@30fps/ 8-ch 4MP@30fps/ 4-ch 8MP@25fps/ 2-ch 12MP@20fps Max Resolution, Video output: 2*VGA & 2*HDMI + Audio I/O: 1 In/ 2 Out + Alarm I/O: 16 In/ 4 Out, 8 x 6TB SATA.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
DS-8616NI-I8 |
|
Processor |
Quad-core embedded processor |
|
Operating System |
Embedded Linux |
|
Incoming bandwidth |
256 Mbps |
|
Outgoing bandwidth |
256 Mbps |
|
Monitoring Software |
iVMS 4200, Hik Central, Hik Pro Connect Mobiles APPs (iOS, Android), ONVIF supported Third Party platform/Central Monitoring Platrform |
|
Capacity and HDD Type |
Up to 10 TB capacity for each disk, Surveillance & Enterprise. |
|
Alarm In/Out |
16/4 |
|
USB Interface |
Front panel: 2 USB 2.0; Rear panel: 1 USB 3.0 |
Product Details
DS-8616NI-I8 provides these features and benefits:
- H.265+/H.265/H.264+/H.264 video formats
- Up to 16-ch IP camera inputs
- Up to 1-ch@32 MP/2-ch@12 MP/16-ch@1080p decoding capacity
- Up to 256/320 Mbps incoming bandwidth
- HDD hot swapping with RAID 0/1/5/6/10
Get More Information
Do you have any question about the DS-8616NI-I8
Contact us now via Live Chat or sales@router-switch.com.
Hikvision DS-8616NI-I8 Specification
DS-8616NI-I8 Specification |
|
|
Video and Audio |
|
|
Processor |
Quad-core embedded processor |
|
Operating System |
Embedded Linux |
|
Frame Rate |
Main stream: ,8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF/CIF@25fps (P)/30fps (N), |
|
Incoming bandwidth |
256 Mbps |
|
Outgoing bandwidth |
256 Mbps |
|
Monitoring Software |
iVMS 4200, Hik Central, Hik Pro Connect Mobiles APPs (iOS, Android), ONVIF supported Third Party platform/Central Monitoring Platrform |
|
Decoding |
|
|
Decoding format |
H.265+/H.265/H.264+/H.264/MPEG4 |
|
Recording resolution |
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF/32 MP/24 MP/12 MP /8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF |
|
Synchronous playback |
16-ch |
|
Network |
|
|
Remote Connections |
128 |
|
Network Protocol |
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS |
|
Network Interface |
2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
|
Auxiliary Interface |
|
|
SATA |
8 SATA interfaces |
|
Capacity and HDD Type |
Up to 10 TB capacity for each disk, Surveillance & Enterprise. |
|
Alarm In/Out |
16/4 |
|
USB Interface |
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
|
General |
|
|
Power Supply |
100 to 240 VAC, 50 to 60 Hz |
|
Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
|
Working Humidity |
10% to 90% |
|
Dimensions (W × D × H) |
445 × 470 × 94 mm (17.5″× 18.5″ × 3.7″) |
