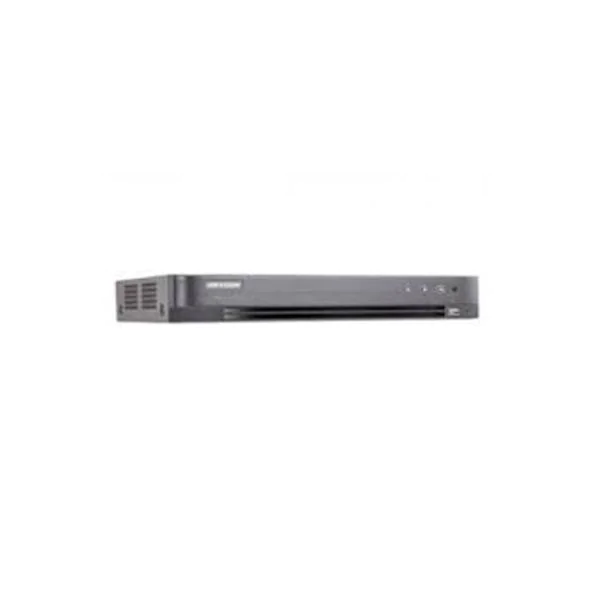

DS-7204HTHI-K1 is the Hikvision Turbo HD DVR.
Quick Spec
Table 1 shows the quick spec.
|
Model |
DS-7204HTHI-K1 |
|
Video/Audio Input |
|
|
Audio Input |
4-ch |
|
Video Compression |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
|
Analog and HD-TVI video input |
4-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
|
Supported camera types |
Support HDTVI input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 Support AHD input: 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30 Support CVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30 Support CVBS input |
|
Audio Compression |
G.711u |
|
Audio Input Interface |
RCA (2.0 Vp-p, 1 kΩ) |
|
Two-way Audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input) |
|
Video/Audio Output |
|
|
HDMI/VGA Output |
VGA: 1-ch, 1920 Ă— 1080/60Hz, 1280 Ă— 1024/60Hz, 1280 Ă— 720/60Hz, 1024 Ă— 768/60Hz HDMI: 1-ch, 4K (3840 Ă— 2160)/30Hz, 2K (2560 Ă— 1440)/60Hz, 1920 Ă— 1080/60Hz, 1280 Ă— 1024/60Hz, 1280 Ă— 720/60Hz, 1024 Ă— 768/60Hz |
|
Frame Rate |
Main stream: 8 MP@12fps, 5 MP@20fps, 3 MP@18fps 4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N) |
|
Video Bit Rate |
32 Kbps-16384 Kbps |
|
Stream Type |
Video/Video & Audio |
|
Two-way Audio |
1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) |
|
Audio Output |
1-ch RCA(Linear, 1kΩ) |
Product Details
Hikvision DS-7204HTHI-K1 provides these key features:
• Support H.265 Pro+/H.265 Pro/H.265 video compression
• Support HDTVI/AHD/CVI/CVBS/IP video input
• Max. 8 IP cameras input (up to 8 PM)
• Max. 800 m for 1080p and 1200 m for 720p HDTVI signal transmission
??Up to 10 TB capacity per HDD
Figure 1 shows the physical interfaces of DS-7204HTHI-K1.
Note:
|
??/p> |
VIDEO OUT |
??/p> |
LAN Network Interface |
|
??/p> |
Alarm In/Out |
??/p> |
AUDIO OUT, RCA Connector |
|
??/p> |
AUDIO IN, RCA Connector |
??/p> |
VGA Interface |
|
??/p> |
Power Switch |
??/p> |
HDMI Interface |
|
??/p> |
GND |
??/p> |
USB Interface |
|
??/p> |
12 VDC Power Input |
??/p> |
VIDEO IN |
|
??/p> |
RS-485 Serial Interface |
 |
 |
Get More Information
Do you have any question about the DS-7204HTHI-K1
Contact us now via Live Chat or sales@router-switch.com.
Hikvision DS-7204HTHI-K1 Specification
DS-7204HTHI-K1 Specification |
|
|
Video/Audio Input |
|
|
Audio Input |
4-ch |
|
Video Compression |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
|
Analog and HD-TVI video input |
4-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
|
Supported camera types |
Support HDTVI input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 Support AHD input: 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30 Support CVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30 Support CVBS input |
|
Video Input Interface |
BNC (1.0 Vp-p, 75Ω) |
|
Audio Compression |
G.711u |
|
Audio Input Interface |
RCA (2.0 Vp-p, 1 kΩ) |
|
Two-way Audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input) |
|
Video/Audio Output |
|
|
CVBS Output |
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
|
HDMI/VGA Output |
VGA: 1-ch, 1920 Ă— 1080/60Hz, 1280 Ă— 1024/60Hz, 1280 Ă— 720/60Hz, 1024 Ă— 768/60Hz HDMI: 1-ch, 4K (3840 Ă— 2160)/30Hz, 2K (2560 Ă— 1440)/60Hz, 1920 Ă— 1080/60Hz, 1280 Ă— 1024/60Hz, 1280 Ă— 720/60Hz, 1024 Ă— 768/60Hz |
|
Frame Rate |
Main stream: 8 MP@12fps, 5 MP@20fps, 3 MP@18fps 4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream:Â WD1/4CIF/CIF@25fps (P)/30fps (N) |
|
Video Bit Rate |
32 Kbps-16384 Kbps |
|
Stream Type |
Video/Video&Audio |
|
Two-way Audio |
1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) |
|
Audio Output |
1-ch RCA(Linear, 1kΩ) |
|
Audio Bit Rate |
64kbps |
|
Dual Stream |
Support |
|
Playback Resolution |
8MP/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF |
|
Synchronous Playback |
4-ch |
|
Network management |
|
|
Remote connections |
32 |
|
Network protocols |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS,ONVIF |
|
Hard Disk Driver |
|
|
Interface Type |
1 SATA Interface |
|
Capacity |
Up to 10 TB capacity for each disk |
|
External Interface |
|
|
Network Interface |
1; 10M / 100M / 1000M self-adaptive Ethernet interface |
|
USB Interface |
1 USB 2.0 Interface & 1 USB 3.0 Interface |
|
Serial Interface |
1; standard RS-485 serial interface, half-duplex |
|
General |
|
|
Power Supply |
12V DC |
|
Consumption |
??15 W |
|
Working Temperature |
-10 oC to +55 oC (14 oF to 131 oF) |
|
Working Humidity |
10% to 90% |
|
Dimensions |
315 Ă— 242 Ă— 45 mm (12.4 Ă— 9.5 Ă— 1.8 inch) |
