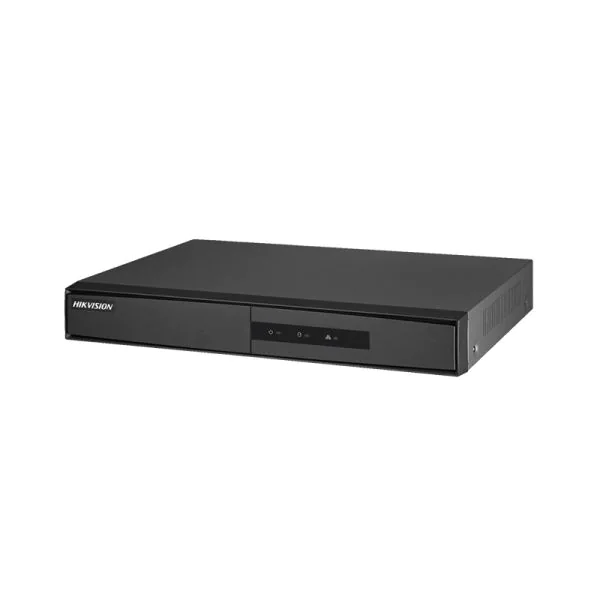

16-ch 1080p Lite 1U H.264 DVR.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
DS-7216HGHI-F1/N |
|
Video Compression |
H.264+/H.264 |
|
Video Bit Rate |
32 Kbps to 4 Mbps |
|
Dual Stream |
Support |
|
Stream Type |
Video, Video & Audio |
|
Audio Compression |
G.711u |
|
Audio Bit Rate |
64 Kbps |
Product Details
DS-7216HGHI-F1/N provides these features and benefits:
- 16 channels and 1 HDD 1U DVR
- H.264+ / H.264 video compression
- Encoding ability up to 1080p lite @ 12 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 18 network cameras can be connected;
Get More Information
Do you have any question about the DS-7216HGHI-F1/N?
Contact us now via Live Chat or sales@router-switch.com.
Hikvision DS-7216HGHI-F1/N Specification
DS-7216HGHI-F1/N Specification |
|
|
Recording |
|
|
Video Compression |
H.264+/H.264 |
|
Encoding Resolution |
When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF |
|
Frame Rate |
Main stream: When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N) When 1080p lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N) For SD stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: CIF/QVGA/QCIF@25fps (P)/30fps (N) |
|
Video Bit Rate |
32 Kbps to 4 Mbps |
|
Dual Stream |
Support |
|
Stream Type |
Video, Video & Audio |
|
Audio Compression |
G.711u |
|
Audio Bit Rate |
64 Kbps |
|
Video And Audio |
|
|
IP Video Input |
2-ch (up to 18-ch) Up to 960p resolution Support H.264+/H.264 IP cameras |
|
Analog Video Input |
16-ch BNC interface (1.0 Vp-p, 75 Ω) |
|
Network |
|
|
Remote Connections |
128 |
|
Network Protocols |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS |
|
Network Interface |
1, RJ45 10M/100M self-adaptive Ethernet interface |
|
Auxiliary Interface |
|
|
SATA |
1 SATA interface |
|
Capacity |
Up to 6 TB capacity for each disk |
|
Alarm In/Out |
N/A |
|
USB Interface |
Rear panel: 2 Ă— USB 2.0 |
|
General |
|
|
Power Supply |
12 VDC |
|
Consumption (Without HDD) |
??span> 20 W |
|
Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
|
Working Humidity |
10% to 90% |
|
Dimensions (W Ă— D Ă— H) |
260 Ă— 222 Ă— 45 mm (10.2 Ă— 8.7 Ă— 1.8 inch) |
Â
