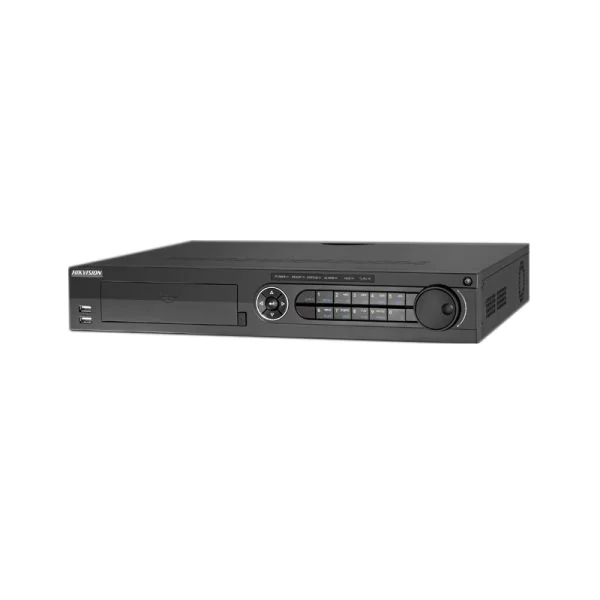

DS-7316HQHI-K4, Hikvision DS-7316HQHI Series DVR, 16-ch 1080p Lite, 24 IP Cam Input, 4x10TB SATA

DS-7316HQHI-K4 Specification

Video/Audio Input

Audio Input

4-ch

Video Compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Analog and HD-TVI video input

16-ch,BNC interface (1.0Vp-p, 75 Ω)connection

Supported camera types

Support HDTVI input: 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60

Note: The 3 MP signal input is only available for the first 4 channels of DS-7316HQHI-K4.

Support AHD input: 1080p25, 1080p30, 720p25, 720p30

Support HDCVI input:4 MP, 1080p25, 1080p30, 720p25, 720p30

support CVBS input

Video Input Interface

BNC (1.0 Vp-p, 75Ω)

Audio Compression

G.711u

Audio Input Interface

4-ch, RCA (2.0 Vp-p, 1 KΩ)

Two-way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)

Video/Audio Output

CVBS Output

1-ch, BNC(1.0Vp-p,75Ω), resolution:PAL:704×576, NTSC:704×480

HDMI/VGA Output

HDMI: 1-ch,4K(3840×2160)/30Hz,2K(2560×1440)/60Hz, 1920×1080/60Hz, 1280×1024/60Hz,1280×720/60Hz,1024 ×768/60Hz

VGA:1-ch,2K(2560×1440)/60Hz,1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz

Recording resolution

When 1080p Lite mode not enabled:

4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF

When 1080p Lite mode enabled:

4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF

Frame Rate

Main stream:

When 1080p Lite mode not enabled:

For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps

For 1080p stream access: 1080p@15fps; 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

When 1080p Lite mode enabled:

4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

Sub-stream:

WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

Video Bit Rate

32 Kbps-6 Mbps

Stream Type

Video/Video & Audio

Two-way Audio

1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)

Audio Output

1-ch RCA(Linear, 1kΩ)

Synchronous Playback

16-ch

Network management

Remote connections

128

Network protocols

TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF

Hard Disk Driver

Interface Type

4 SATA Interfaces

Capacity

Up to 10 TB capacity for each disk

External Interface

Network Interface

1; 10M / 100M / 1000M self-adaptive Ethernet interface

USB Interface

2 USB 2.0 Interface on the front panel& 1 USB 3.0 Interface on the rear panel

Alarm Input

16-ch

Alarm Output

4-ch

General

Power Supply

100 to 240 VAC

Consumption

??55W(without hard disks)

Working Temperature

-10 ??~+55 ??(14 ??~ 131 ??

Working Humidity

10% ~ 90%

Dimensions

445 × 390 × 70 mm (17.5 × 15.4 × 2.8 inch)
