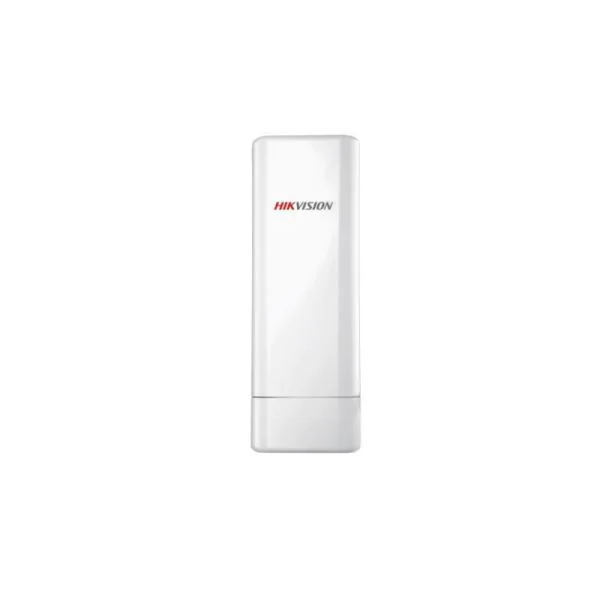

The Hikvision DS-3WF01C-2N/O is an efficient 2.4GHz 150Mbps outdoor wireless CPE designed to cover distances of up to 3km. This rugged and reliable device is ideal for outdoor networking environments, ensuring high-speed and stable connectivity even across long distances. Perfectly suited for varied deployment scenarios, this CPE is an excellent addition to any network setup.
Quick Spec
| Frequency Band | 2.4GHz |
| Maximum Throughput | 150Mbps |
| Coverage Distance | 3km |
| Outdoor Rated | Yes |
| Antenna Gain | 12dBi |
Product Features
- High-gain directional antenna for extended coverage
- Robust weatherproof design to withstand outdoor conditions
- Easy installation and alignment with precise LED indicators
- Supports multiple operating modes including AP, Station, and Repeater
- Advanced security features including WPA, WPA2, and WPA-PSK
Product Applications
- Rural area broadband internet access, enhancing connectivity in remote locations
- Wireless bridge between buildings in an industrial park or campus
- Temporary deployments for outdoor events to provide reliable internet access
Supported Options
| Mounting Kit | MK-2305 |
| Surge Protector | SP-1001 |
| PoE Injector | PI-1201 |
Compare to Similar Items
| Model | DS-3WF01C-2N/O | DS-3WF01C-5N/O | DS-3WF02C-2N/O |
| Frequency Band | 2.4GHz | 5GHz | 2.4GHz |
| Maximum Throughput | 150Mbps | 300Mbps | 300Mbps |
| Coverage Distance | 3km | 5km | 2km |
| Antenna Gain | 12dBi | 16dBi | 14dBi |
Get more information
For further information about the Hikvision DS-3WF01C-2N/O and its price, contact us through Live Chat or email us at sales@router-switch.com. Check ‘Hikvision DS-3WF01C-2N/O’ price and ‘DS-3WF01C-2N/O datasheet’, buy ‘Hikvision DS-3WF01C-2N/O’ with best price and fast shipping. Free Live Chat is supported.
Hikvision DS-3WF01C-2N/O Specification
DS-3WF01C-2N/O Specifications |
|
| Brand | Hikvision |
| Model | DS-3WF01C-2N/O |
| Frequency Band | 2.4 GHz |
| Maximum Data Rate | 150 Mbps |
| Transmission Distance | Up to 3 km |
| Power Supply | 24V DC |
| Power Consumption | 6W |
| Operating Temperature | -30��C to 65��C (-22��F to 149��F) |
| Storage Temperature | -40��C to 70��C (-40��F to 158��F) |
| Humidity | 5% to 95% non-condensing |
| Dimensions | 265 mm �� 90 mm �� 58 mm |
| Gain | 8 dBi |
| Antenna Type | Built-in directional antenna |
| Networking Standard | IEEE 802.11b/g/n |
| Encryption | WPA-PSK/WPA2-PSK |
| Interface | 10/100Mbps Ethernet interface |
| Reset Button | Supported |
| Mounting | Pole mount |
| Protection Level | IP65 |
| LED Indicators | Power, LAN, WLAN |
| Certifications | CE, FCC, RoHS |
