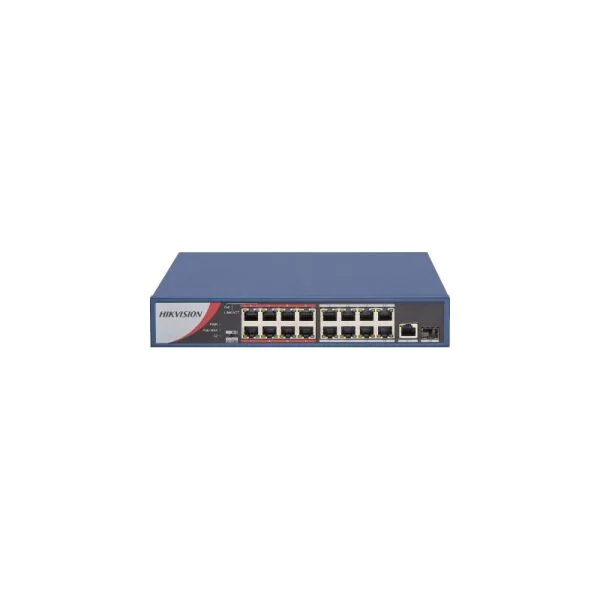

The Hikvision DS-3E0318P-E/M(B) is a 16-port Fast Ethernet Unmanaged POE Switch designed for efficient and reliable networking solutions. This PoE (Power over Ethernet) switch provides seamless power and data transmission, making it ideal for various applications in modern networking environments. Easy to install and use, it helps optimize network performance by streamlining data traffic with its 16 high-speed ports.
Quick Spec
| Type | Fast Ethernet Unmanaged POE Switch |
| Ports | 16 |
| Power Supply | Built-in |
| PoE Standard | IEEE 802.3af/at |
| Switching Capacity | 7.2 Gbps |
Product Features
- 16-Port Fast Ethernet with PoE capabilities
- IEEE 802.3af/at PoE standard support for diverse devices
- Advanced surge protection for reliable performance
- Dedicated uplink ports for seamless connectivity
- Plug-and-play design for easy installation and use
Product Applications
- Ideal for small to medium-sized business networks
- Perfect for powering IP cameras, VoIP phones, and wireless access points
- Suitable for educational institutions requiring robust network infrastructure
Supported Options
| Accessory | Model |
| Rack Mount Kit | RMK-1 |
| Power Adapter | PA-100 |
| Patch Panel | PP-24CAT6 |
Compare to Similar Items
| Model | Differences |
| DS-3E0310P-E/M | 10 ports, lower switching capacity |
| DS-3E0326P-E/M(B) | 24 ports, higher port density and switching capacity |
| DS-3E0318P-E/M(A) | Different physical design and casing |
Get more information, contact us through Live Chat or sales@router-switch.com about the Hikvision DS-3E0318P-E/M(B) product and its price. Check Hikvision DS-3E0318P-E/M(B) price and DS-3E0318P-E/M(B) datasheet, buy Hikvision DS-3E series with best price and fast shipping. Free Live Chat are supported.
Hikvision DS-3E0318P-E/M(B) Specification
DS-3E0318P-E/M(B) Specifications |
|
| Brand | Hikvision |
| Model | DS-3E0318P-E/M(B) |
| Type | Unmanaged POE Switch |
| Ports | 16 Fast Ethernet Ports |
| Uplink Ports | 2 Gigabit Uplink Ports |
| POE Standard | IEEE 802.3af/at |
| Total POE Power Budget | 230W |
| Switching Capacity | 7.2 Gbps |
| Packet Forwarding Rate | 5.36 Mpps |
| MAC Address Table | 4K |
| Network Standards | IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.1p, 802.1Q, 802.3at, 802.3af |
| Indicator LEDs | Power, Link/Act, POE |
| Power Supply | AC 100-240V, 50/60 Hz |
| Power Consumption | Up to 250W |
| Operating Temperature | 0��C to 40��C (32��F to 104��F) |
| Storage Temperature | -40��C to 70��C (-40��F to 158��F) |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
| Dimensions | 440mm x 220mm x 44mm |
| Mounting | Rack Mountable |
