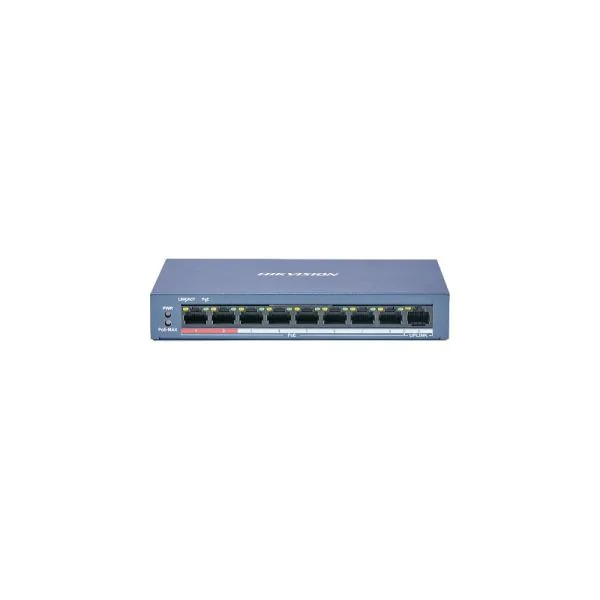

The Hikvision DS-3E0109P-E/M(B) is an 8 Port Fast Ethernet Unmanaged POE Switch designed to provide efficient and reliable power and data connectivity. Ideal for small to medium-sized networks, it supports Power over Ethernet (PoE) which facilitates the operation of powered devices such as IP cameras, phones, and wireless access points without additional cabling requirements. This plug-and-play device ensures easy setup and effective network management.
Quick Spec
| Ports | 8 Fast Ethernet (10/100 Mbps) |
| PoE Ports | 8 Ports |
| Switching Capacity | 1.8 Gbps |
| Input Voltage Range | DC 48-57V |
| Power Consumption | Max. 65W |
Product Features
- Supports IEEE 802.3af/at PoE standard
- 8 PoE ports with a total power budget of 60W
- Auto-detection and protection of non-standard PoE devices
- Compact design for desktop or wall-mounting
- Plug-and-play, no configuration required
Product Applications
- Ideal for powering IP cameras in a surveillance system
- Supports VoIP phones in office environments
- Excellent for connecting wireless access points in small to medium enterprises
Supported Options
| PoE Injector | Hikvision DS-KAD606-P |
| SFP Module | Hikvision DS-3WF01C-2N |
| Cable | Hikvision DS-1LN5E-E/EU |
Compare to Similar Items
| Hikvision DS-3E0105P-E/M(B) | 5 Ports, lower power budget |
| Hikvision DS-3E0526P-SI | 26 Ports, managed switch |
| Hikvision DS-3E1318P-EI | 16 Ports, higher power budget |
Get more information
Check Hikvision DS-3E0109P-E/M(B) price and DS-3E0109P-E/M(B) datasheet, buy Hikvision DS-3E0109P-E/M(B) Switch with best price and fast shipping. Free Live Chat are supported. Contact us through Live Chat or sales@router-switch.com for further information about the product and its price.
Hikvision DS-3E0109P-E/M(B) Specification
DS-3E0109P-E/M(B) Specifications |
|
| Brand | Hikvision |
| Product Name | DS-3E0109P-E/M(B) |
| Type | Unmanaged POE Switch |
| Ports | 8 Fast Ethernet Ports |
| Uplink Ports | 1 Gigabit Ethernet Port |
| POE Standard | IEEE 802.3af/at |
| Switching Capacity | 1.8 Gbps |
| Packet Forwarding Rate | 0.67 Mpps |
| Transmission Distance | Up to 250m |
| Power Supply | External Power Adapter |
| Power Consumption | Max 65W |
| PoE Budget | 58W |
| Dimension | 180 x 101 x 26 mm |
| Operating Temperature | 0��C to 40��C |
| Operating Humidity | 10% to 90% (non-condensing) |
| Storage Temperature | -40��C to 70��C |
| Storage Humidity | 5% to 95% (non-condensing) |
| MAC Address Table | 2 K |
| Packet Buffer Memory | 1 Mbit |
| Mounting Options | Desktop or Wall-mount |
| Certifications | CE, FCC, RoHS |
