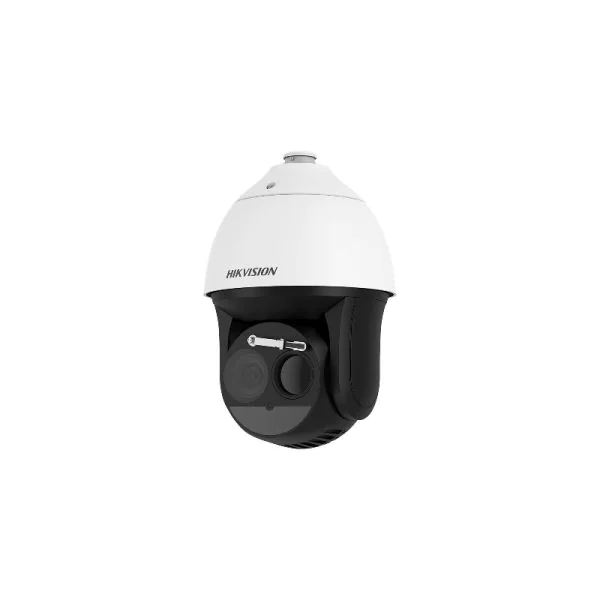

The Hikvision DS-2TD4166T-9 is a cutting-edge Thermographic Thermal & Optical Bi-spectrum Network Speed Dome designed for a wide array of monitoring and surveillance applications. Leveraging Hikvisions advanced thermographic technology alongside high-resolution optical imaging, this network speed dome ensures superior detection and image clarity for round-the-clock surveillance.
Quick Spec
| Brand | Hikvision |
| Product Name | DS-2TD4166T-9 |
| Thermal Resolution | 640512 |
| Optical Resolution | 4 MP |
| Zoom | 36x Optical Zoom |
Product Features
- Bi-spectrum Image Fusion for enhanced surveillance
- Advanced heat detection with a range up to 5 kilometers
- 36x optical zoom for detailed inspection
- Comprehensive network support for integrated monitoring
- Weather and vandal-resistant design for outdoor installation
Product Applications
- Perimeter defense in industrial and critical infrastructure facilities
- 24/7 monitoring of large outdoor areas such as parks and campuses
- Enhanced security in airport and seaport environments
Supported Options
| Accessory | Model |
| Mounting Bracket | DS-1602ZJ |
| Junction Box | DS-1604ZJ |
| Power Supply | DS-2FA1220-AA |
Compare to Similar Items
| Model | Differences |
| DS-2TD4136T-25 | 25mm lens, lower thermal resolution |
| DS-2TD4225T-15 | 15mm lens, higher optical resolution |
| DS-2TD4167T-10 | 10mm lens, similar thermal and optical specs |
Get more information
For further details on the Hikvision DS-2TD4166T-9, including pricing and detailed specifications, please contact us via Live Chat or email at sales@router-switch.com. Check ‘Hikvision DS-2TD4166T-9’ price and ‘DS-2TD4166T-9 datasheet, buy ‘Hikvision DS-2TD4166T series’ with the best price and fast shipping. Free Live Chat support is available.
Hikvision DS-2TD4166T-9 Specification
DS-2TD4166T-9 Specifications |
|
| Brand | Hikvision |
| Model | DS-2TD4166T-9 |
| Product Type | Thermographic Thermal & Optical Bi-spectrum Network Speed Dome |
| Thermal Resolution | 640 �� 512 |
| Thermal Lens | 9mm |
| Optical Resolution | 1920 �� 1080 |
| Optical Zoom | 30x |
| Image Sensor | 1/2.8″ progressive scan CMOS |
| Scene Range | Up to 2.1 km for vehicle detection |
| Temperature Measurement | -20��C to 150��C |
| Accuracy | ��2��C |
| Pan Range | 360�� |
| Tilt Range | -90�� to 90�� |
| Video Compression | H.265 / H.264 / MJPEG |
| Network Interface | 1 x RJ45 10M/100M Ethernet port |
| Audio In/Out | 1 x 3.5mm mic in/line in, 1 x 3.5mm line out |
| Ingress Protection | IP66 |
| Power Supply | 12 VDC / PoE+ (802.3at) |
| Power Consumption | Max. 20W |
| Operating Temperature | -40��C to 65��C |
| Storage Temperature | -40��C to 70��C |
