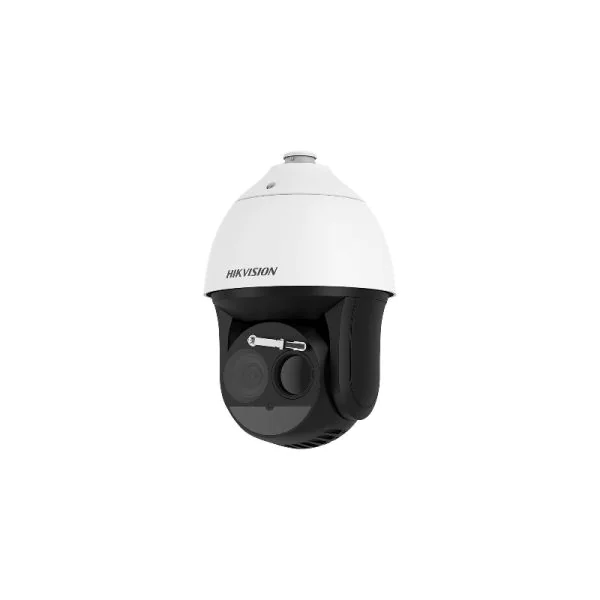

The Hikvision DS-2TD4136-25/V2 is a state-of-the-art Thermal & Optical Bi-spectrum Network Speed Dome, designed to provide exceptional surveillance capabilities with high-precision monitoring in various lighting conditions. This versatile network speed dome seamlessly integrates thermal and optical imaging to deliver enhanced situational awareness, making it an ideal choice for diverse security applications.
Quick Spec
| Brand | Hikvision |
| Model | DS-2TD4136-25/V2 |
| Lens | 25mm thermal lens, 36x optical zoom |
| Resolution | 640 x 512 (thermal), 1920 x 1080 (optical) |
| Ingress Protection | IP66 |
Product Features
- Bi-spectrum image fusion to provide comprehensive situational awareness.
- High-sensitivity thermal module for clear imaging even in low light conditions.
- 36x optical zoom for enhanced detail recognition.
- Supports smart detection features such as intrusion detection and line crossing detection.
- Robust construction with IP66 rating for outdoor use.
Product Applications
- Perimeter security in critical infrastructure facilities such as power plants and airports.
- High-end residential area surveillance for enhanced security.
- Urban security and traffic monitoring for efficient management.
Supported Options
| Accessory | Model |
| Wall Mount | DS-1604ZJ |
| Junction Box | DS-1602ZJ |
| Sun Shield | DS-1347ZJ |
Compare to Similar Items
| Model | Difference |
| DS-2TD4166-25 | Higher resolution (1280 x 1024 thermal), less optical zoom (30x) |
| DS-2TD4236-25 | Includes advanced deep learning algorithms for better detection. |
| DS-2TD4336-25 | Enhanced thermal sensitivity, longer detection range. |
Get more information
Check Hikvision DS-2TD4136-25/V2 price and DS-2TD4136-25/V2 datasheet, buy Hikvision DS-2TD4136-25/V2 with best price and fast shipping. Free Live Chat is supported. For further information about the product and its price, please contact us through Live Chat or sales@router-switch.com.
Hikvision DS-2TD4136-25/V2 Specification
DS-2TD4136-25/V2 Specifications |
|
| Camera Type | Thermal & Optical Bi-spectrum Network Speed Dome |
| Brand | Hikvision |
| Thermal Resolution | 384 �� 288 |
| Optical Resolution | 1920 �� 1080 |
| Lens (Thermal) | 25 mm |
| Lens (Optical) | 4.3-170 mm |
| Digital Zoom | 16�� |
| Human Detection Range (Thermal) | 1,360 meters |
| Vehicle Detection Range (Thermal) | 3,360 meters |
| Ingress Protection | IP66 |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | 25 fps (optical), 25 Hz (thermal) |
| WDR (Wide Dynamic Range) | 120 dB |
| Operating Temperature | -40��C to 65��C (-40��F to 149��F) |
| Power Supply | 24 VAC, Hi-PoE |
| Power Consumption | Max. 65W |
| Alarm Inputs | 7 |
| Alarm Outputs | 2 |
| Audio Inputs | 1 |
| Audio Outputs | 1 |
| Dimensions | 359.8 mm �� 190.4 mm �� 262.8 mm |
| Weight (excluding) | 5.5 kg |
