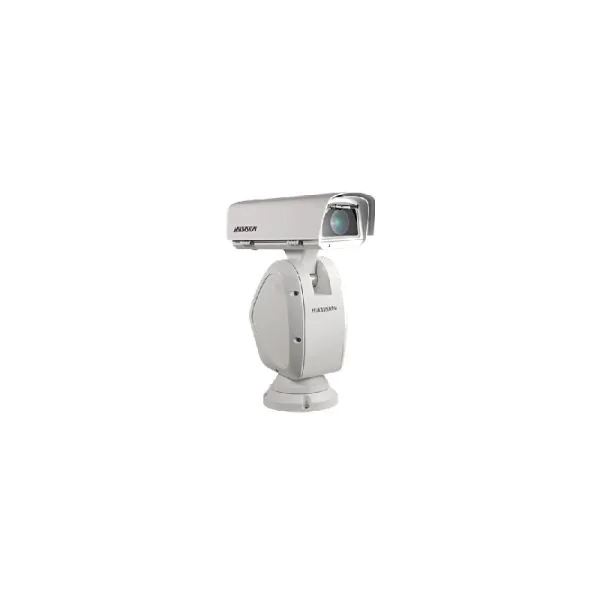

The Hikvision DS-2DY9236X-A is a cutting-edge 9-inch 2 MP 36X DarkFighter Network Positioning System designed for superior surveillance performance in low-light conditions. This high-performance camera offers a plethora of advanced features, making it ideal for a wide range of security applications. Leveraging DarkFighter technology, it captures clear images even in the most challenging lighting situations.
Quick Spec
| Camera Size | 9-inch |
| Resolution | 2 MP |
| Optical Zoom | 36X |
| Technology | DarkFighter |
| Network Connectivity | Yes |
Product Features
- Ultra-low light technology for high-quality images in low-light conditions.
- 36X optical zoom for clear close-ups from a distance.
- Full HD 1080P Resolution delivering crisp and detailed images.
- Network positioning system enabling precise pan, tilt, and zoom controls.
- True WDR (120dB) for dynamic lighting conditions.
Product Applications
- City surveillance requiring detailed monitoring in dimly lit areas.
- Perimeter security for large outdoor facilities such as airports or stadiums.
- Traffic monitoring in low-light conditions for road safety and management.
Supported Options
| Wall Mount | DS-1602ZJ |
| Ceiling Mount | DS-1601ZJ |
| Weatherproof Casing | DS-1619ZJ |
Compare to Similar Items
| Model | Difference |
| DS-2DE7230IW-AE | 30X zoom instead of 36X, smaller 7-inch size |
| DS-2DY9225IAX-A | 25X zoom, features IR illumination |
| DS-2DE7186-A | 8 MP resolution, no DarkFighter technology |
Get more information
Check Hikvision DS-2DY9236X-A price and DS-2DY9236X-A datasheet, buy Hikvision DS-2DY9236X-A Network Positioning System with the best price and fast shipping. Free Live Chat are supported. For further information about the product and its price, please contact us through Live Chat or sales@router-switch.com.
Hikvision DS-2DY9236X-A Specification
DS-2DY9236X-A Specifications |
|
| Brand | Hikvision |
| Model | DS-2DY9236X-A |
| Effective Pixels | 2 MP |
| Optical Zoom | 36X |
| Digital Zoom | 16X |
| Lens | 5.7 mm to 205.2 mm |
| Image Sensor | 1/1.9″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.002 Lux @(F1.5, AGC ON) |
| Shutter Speed | 1/1 to 1/30,000 s |
| Day & Night | IR Cut Filter |
| Horizontal Field of View | 60.8to 2.0 |
| Video Compression | H.265 / H.264 / MJPEG |
| Max. Resolution | 1920 x 1080 |
| Supported Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP |
| Power Supply | 24 VAC |
| Power Consumption | Max. 95W |
| Operating Temperature | -40C to 70C |
| Operating Humidity | 95% (non-condensing) |
| Ingress Protection | IP66 |
| Impact Protection | IK10 |
| Network Connectivity | 10/100 Mbps Ethernet |
