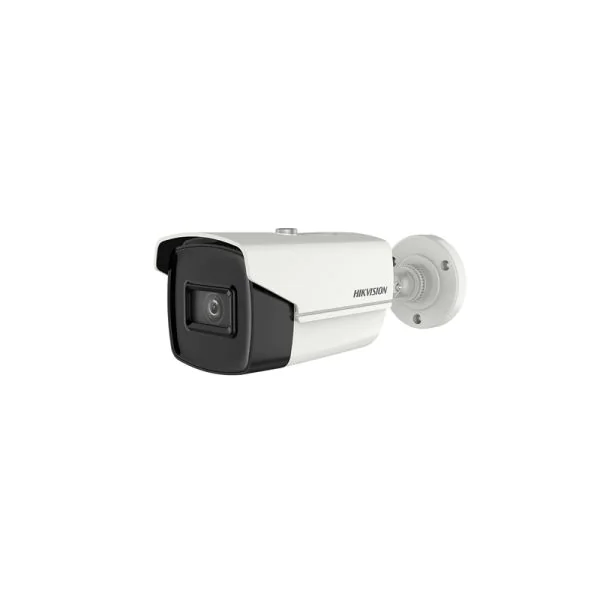

Hikvision DS-2CE16D3T-IT3F is the 2 MP EXIR Bullet Camera.
Quick Spec
Table 1 shows the quick spec.
|
Model |
DS-2CE16D3T-IT3F |
|
Image Sensor |
2.0 megapixel progressive scan CMOS |
|
Signal System |
PAL/NTSC |
|
Effective Pixels |
1920(H)*1080(V) |
|
Shutter Time |
1/25(1/30) s to 1/50,000 s |
|
Lens Mount |
M12 |
|
Adjustment Range |
Pan: 0 to 360, Tilt: 0 to 180, Rotation: 0 to 360 |
|
Day& Night |
IR cut filter |
|
Video Frame Rate |
PAL: 1080p@25fps |
|
HD Video Output |
1 Analog HD output |
|
Synchronization |
Internal Synchronization |
|
Up the Coax |
Support |
Product Details
Hikvision DS-2CE16D3T-IT3F provides these key features:
2 MP high-performance CMOS
19201080 resolution
2.8 mm, 3.6 mm, 6 mm,8mm,12mm fixed lens
Ultra low light
EXIR 2.0, smart IR, up to 50 m IR distance
OSD menu, 3D DNR, 120 dB true WDR, day/night switch
IP67
up the coax(HIKVISION-C)
4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
Compare to Similar Item
Table 2 shows the comparison.
|
Model |
DS-2CE16D3T-IT3F |
|
|
Image Sensor |
1.27MP CMOS Image Sensor |
2.0 megapixel progressive scan CMOS |
|
Effective Pixels |
1305(H)x977(V) |
1920(H)*1080(V) |
|
Shutter Time |
1/25(1/30) s to 1/50,000 s |
1/25(1/30) s to 1/50,000 s |
|
Day& Night |
IR cut filter with auto switch |
IR cut filter |
Get More Information
Do you have any question about the DS-2CE16D3T-IT3F
Contact us now via Live Chat or sales@router-switch.com.
Hikvision DS-2CE16D3T-IT3F Specification
DS-2CE16D3T-IT3F Specification |
|
|
Camera |
|
|
Image Sensor |
2.0 megapixel progressive scan CMOS |
|
Signal System |
PAL/NTSC |
|
Effective Pixels |
1920(H)*1080(V) |
|
Shutter Time |
1/25(1/30) s to 1/50,000 s |
|
Lens Mount |
M12 |
|
Adjustment Range |
Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360° |
|
Day& Night |
IR cut filter |
|
Video Frame Rate |
PAL: 1080p@25fps NTSC: 1080p@30fps |
|
HD Video Output |
1 Analog HD output |
|
Synchronization |
Internal Synchronization |
|
Up the Coax |
Support |
|
Menu |
|
|
Backlight Compensation |
Yes |
|
D/N Mode |
Auto/Color/BW (Black and White) |
|
AGC |
Low/middle/high |
|
WDR |
Yes |
|
Language |
English |
|
Function |
Brightness, Sharpness, DNR, Mirror, Smart IR |
|
Interface |
|
|
Video Out |
1 HD analog output |
|
General |
|
|
Material |
Front cover: Metal Main body: Plastic Bracket: Plastic |
|
Operating Conditions |
-40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
|
Power Supply |
12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera. |
|
Power Consumption |
Max. 5.6 W |
|
Weather Proof |
IP67 |
|
IR Range |
Up to 50m |
|
Dimension |
81.9 mm × 86.7 mm × 217.9 mm (3.22″ × 3.41″ × 8.58″ ) |
