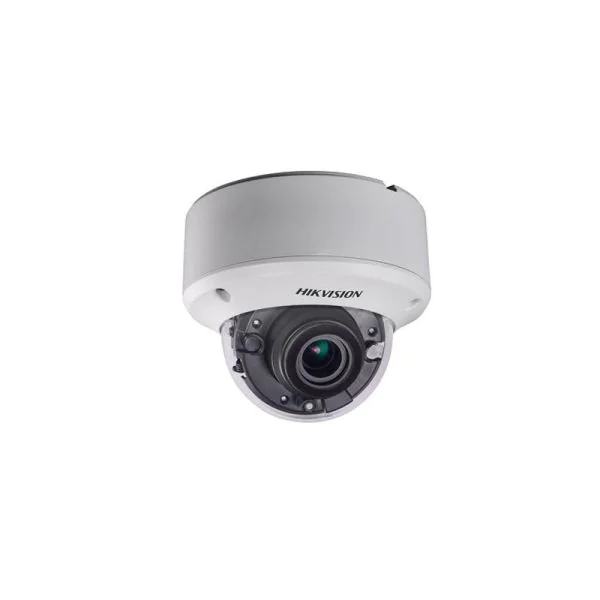

Hikvision DS-2CE56D8T-AVPIT3Z is the 2 MP Ultra Low-Light VF EXIR Dome Camera.
Quick Spec
Table 1 shows the quick spec.
|
Model |
DS-2CE56D8T-AVPIT3Z |
|
Signal System |
PAL/NTSC |
|
Effective Pixels |
1920(H)*1080(V) |
|
Min. Illumination |
Color: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with IR |
|
Shutter Time |
1/25(1/30) s to 1/50,000 s |
|
Lens |
2.8 mm to 12 mm motorized vari-focal lens |
|
Lens Mount |
14 |
|
Adjustment Range |
Pan: 0 to 340, Tilt:0 to 75, Rotate: 0 to 355 |
|
Day& Night |
IR cut filter with auto switch |
|
Wide Dynamic Range |
75dB |
|
Video Frame Rate |
1080p@25fps/1080p@30fps |
|
HD Video Output |
1 Analog HD output |
|
Synchronization |
Internal Synchronization |
|
Up the Coax |
Support |
Product Details
Hikvision DS-2CE56D8T-AVPIT3Z provides these key features:
2 Megapixel high-performance CMOS
Analog HD output, up to 1080P resolution
2.8-12mm motorizedvari-focal lens
True Day/Night
OSD menu, DNR, Smart IR
True WDR, up to 120dB
EXIR 2.0,up to 40m IR distance
IP67, IK10
Up the Coax(HIKVISION-C)
Compare to Similar Item
Table 2 shows the comparison.
|
Model |
DS-2CE56D8T-AVPIT3Z |
|
|
Image Sensor |
2 Megapixel high-performance CMOS |
1/2″ Progressive Scan CMOS |
|
Effective Pixels |
1920(H)*1080(V) |
3840 2160 |
|
Shutter Time |
1/25(1/30) s to 1/50,000 s |
1/3 s to 1/100,000 s |
|
Day& Night |
IR cut filter with auto switch |
IR Cut Filter |
Get More Information
Do you have any question about the DS-2CE56D8T-AVPIT3Z
Contact us now via Live Chat or sales@router-switch.com.
Hikvision DS-2CE56D8T-AVPIT3Z Specification
DS-2CE56D8T-AVPIT3Z Specification |
|
|
Camera |
|
|
Signal System |
PAL/NTSC |
|
Effective Pixels |
1920(H)*1080(V) |
|
Min. Illumination |
Color: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with IR |
|
Shutter Time |
1/25(1/30) s to 1/50,000 s |
|
Lens |
2.8 mm to 12 mm motorized vari-focal lens |
|
Lens Mount |
φ14 |
|
Adjustment Range |
Pan: 0° to 340°, Tilt:0° to 75°, Rotate: 0° to 355° |
|
Day& Night |
IR cut filter with auto switch |
|
Wide Dynamic Range |
75dB |
|
Video Frame Rate |
1080p@25fps/1080p@30fps |
|
HD Video Output |
1 Analog HD output |
|
Synchronization |
Internal Synchronization |
|
Up the Coax |
Support |
|
Menu |
|
|
AGC |
Support |
|
Language |
English/Chinese |
|
Function |
Brightness, Sharpness, Mirror, Smart IR |
|
General |
|
|
Operating Conditions |
-40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
|
Power Consumption |
Max. 7W |
|
IR Range |
Up to 40m |
|
Dimension |
Φ 145.2 mm Ă— 124.1 mm (Φ 5.72″ Ă— 4.89″ ) |
