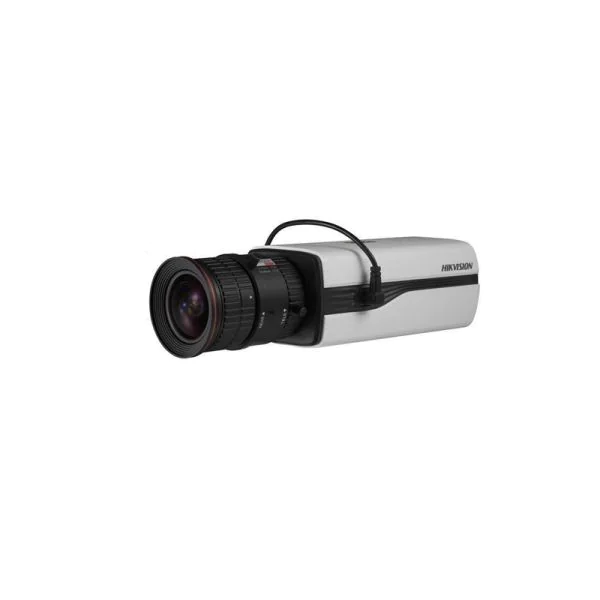

Hikvision DS-2CC12D9T-A is the HD1080P WDR Box Camera.
Quick Spec
Table 1 shows the quick spec.
|
Model |
DS-2CC12D9T-A |
|
Image Sensor |
2MP CMOS Image Sensor |
|
Signal System |
PAL/NTSC |
|
Effective Pixels |
1944(H)1092(V) |
|
Min. Illumination |
Color : 0.01 Lux @(F1.2,AGC ON) |
|
Shutter Time |
1/25(1/30) s to 1/50,000 s |
|
Lens Mount |
C/CS Mount |
|
Auto Iris |
DC Drive |
|
Day& Night |
IR cut filter with auto switch |
|
Wide Dynamic Range |
120dB |
|
Video Frame Rate |
1080p@25fps/1080p@30fps |
|
HD Video Output |
1 Analog HD output |
|
Synchronization |
Internal Synchronization |
|
CVBS Output |
1Vp-p Composite Output(75/BNC) |
|
S/N Ratio |
More than 62 dB |
|
Up the Coax |
Support |
Product Details
Hikvision DS-2CC12D9T-A provides these key features:
2 Megapixel high-performance CMOS
Analog HD output, up to 1080P resolution
True Day/Night
OSD menu, 3D DNR
True WDR, up to 120dB
Up the Coax(HIKVISION-C)
-A: AC24V/DC12V
Compare to Similar Item
Table 2 shows the comparison.
|
Model |
DS-2CC12D9T-A |
|
|
Image Sensor |
2MP CMOS Image Sensor |
2MP CMOS Image Sensor |
|
Effective Pixels |
1920(H)*1080(V) |
1944(H)1092(V) |
|
Shutter Time |
1/25(1/30) s to 1/50,000 s |
1/25(1/30) s to 1/50,000 s |
|
Day& Night |
IR cut filter with auto switch |
IR cut filter with auto switch |
|
Video Frame Rate |
1080p@25fps/1080p@30fps |
1080p@25fps/1080p@30fps |
Get More Information
Do you have any question about the DS-2CC12D9T-A
Contact us now via Live Chat or sales@router-switch.com.
Hikvision DS-2CC12D9T-A Specification
DS-2CC12D9T-A Specification |
|
|
Camera |
|
|
Image Sensor |
2MP CMOS Image Sensor |
|
Signal System |
PAL/NTSC |
|
Effective Pixels |
1944(H)Ă—1092(V) |
|
Min. Illumination |
Color : 0.01 Lux @(F1.2,AGC ON) B/W : 0.001 Lux @(F1.2,AGC ON) |
|
Shutter Time |
1/25(1/30) s to 1/50,000 s |
|
Lens Mount |
C/CS Mount |
|
Auto Iris |
DC Drive |
|
Day& Night |
IR cut filter with auto switch |
|
Wide Dynamic Range |
120dB |
|
Video Frame Rate |
1080p@25fps/1080p@30fps |
|
HD Video Output |
1 Analog HD output |
|
Synchronization |
Internal Synchronization |
|
CVBS Output |
1Vp-p Composite Output(75Ω/BNC) |
|
S/N Ratio |
More than 62 dB |
|
Up the Coax |
Support |
|
Menu |
|
|
Camera ID |
On/off (15 characters, position programmable) |
|
D/N Mode |
Color/ BW/ EXT |
|
Auto White Balance |
ATW/ AWC-SET/ Indoor/ Outdoor/ Manual |
|
Private Mask |
On/Off, maximum 8 zones |
|
Motion Detection |
On/Off, maximum 4 zones |
|
BLC |
On/Off |
|
AGC |
Support |
|
Anti-flicker |
On/ Off |
|
Language |
English/ Japanese/ CHN1/ CHN2/ Korean/ German/ French/ Italian/ Spanish/ Polish/ Russian/ Portuguese/ Dutch/ Turkish/ Hebrew/ Arabic |
|
Function |
Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOM |
|
Scene |
Indoor, Outdoor, Indoor1, LOW-LIGHT |
|
General |
|
|
Operating Conditions |
-30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 90% or less (non-condensing) |
|
Power Supply |
12 VDC±15%, 24 VAC±15% |
|
Power Consumption |
Max. 6W |
|
Communication |
Up the coax Protocol: HIKVISION-C(Coaxitron) |
|
Dimension |
69.2Ă—57.3Ă—148.7mm(2.7??Ă— 2.3??Ă— 5.85?? |
