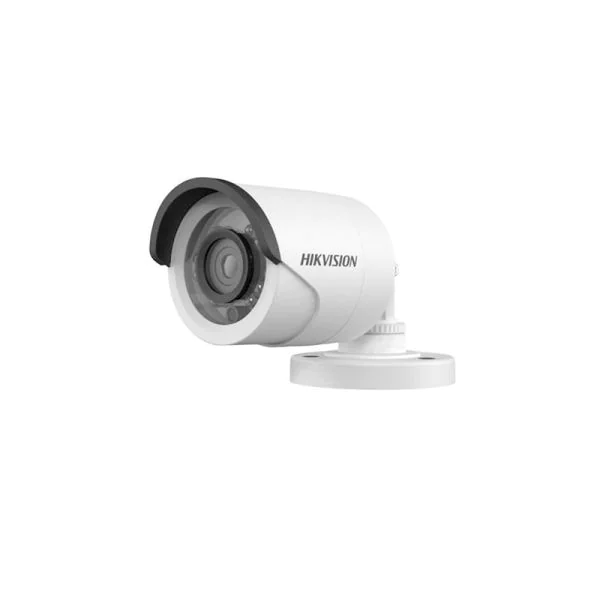

Hikvision DS-2CE16C0T-IRF is the HD720P IR Bullet Camera.
Quick Spec
Table 1 shows the quick spec.
|
Model |
DS-2CE16C0T-IRF |
|
Image Sensor |
1MP CMOS Image Sensor |
|
Signal System |
PAL/NTSC |
|
Effective Pixels |
1296(H)x732(V) |
|
Min. Illumination |
0.01 Lux@(F1.2, AGC ON), 0 Lux with IR |
|
Shutter Time |
1/25(1/30) s to 1/50,000 s |
|
Lens Mount |
M12 |
|
Adjustment Range |
Pan: 0 – 360, Tilt: 0 – 180, Rotation: 0 – 360 |
|
Day& Night |
IR cut filter with auto switch |
|
Video Frame Rate |
720p@25fps/720p@30fps |
|
HD Video Output |
1 Analog HD output |
|
Synchronization |
Internal Synchronization |
|
S/N Ratio |
More than 62 dB |
Product Details
Hikvision DS-2CE16C0T-IRF provides these key features:
1.0 Megapixel high-performance CMOS
Analog HD output, up to 720P resolution
True Day/Night
DNR, Smart IR
Up to 20m IR distance
IP66 weatherproof
Switchable TVI/AHD/CVI/CVBS
Compare to Similar Item
Table 2 shows the comparison.
|
Model |
DS-2CE16C0T-IRF |
|
|
Image Sensor |
2MP CMOS Image Sensor |
1MP CMOS Image Sensor |
|
Signal System |
PAL/NTSC |
PAL/NTSC |
|
Effective Pixels |
1920(H)*1080(V) |
1296(H)x732(V) |
|
Shutter Time |
1/25(1/30) s to 1/50,000 s |
1/25(1/30) s to 1/50,000 s |
|
Lens Mount |
M12 |
M12 |
|
Adjustment Range |
Pan: 0 – 360, Tilt: 0 – 75, Rotation: 0 – 360 |
Pan: 0 – 360, Tilt: 0 – 180, Rotation: 0 – 360 |
|
Day& Night |
IR cut filter with auto switch |
IR cut filter with auto switch |
|
Video Frame Rate |
1080p@25fps/1080p@30fps |
720p@25fps/720p@30fps |
|
HD Video Output |
1 Analog HD output |
1 Analog HD output |
|
Synchronization |
Internal Synchronization |
Internal Synchronization |
|
S/N Ratio |
More than 62 dB |
More than 62 dB |
Get More Information
Do you have any question about the DS-2CE16C0T-IRF
Contact us now via Live Chat or sales@router-switch.com.
Hikvision DS-2CE16C0T-IRF Specification
DS-2CE16C0T-IRF Specification |
|
|
Camera |
|
|
Image Sensor |
1MP CMOS Image Sensor |
|
Signal System |
PAL/NTSC |
|
Effective Pixels |
1296(H)x732(V) |
|
Min. Illumination |
0.01 Lux@(F1.2, AGC ON), 0 Lux with IR |
|
Shutter Time |
1/25(1/30) s to 1/50,000 s |
|
Lens Mount |
M12 |
|
Adjustment Range |
Pan: 0 – 360°, Tilt: 0 – 180°, Rotation: 0 – 360° |
|
Day& Night |
IR cut filter with auto switch |
|
Video Frame Rate |
720p@25fps/720p@30fps |
|
HD Video Output |
1 Analog HD output |
|
Synchronization |
Internal Synchronization |
|
S/N Ratio |
More than 62 dB |
|
General |
|
|
Operating Conditions |
-40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
|
Power Supply |
12 VDC±15% |
|
Weather Proof |
IP66 |
|
IR Range |
Up to 20m |
|
Dimension |
Φ70×149.5 mm (Φ2.76??×5.89?? |
