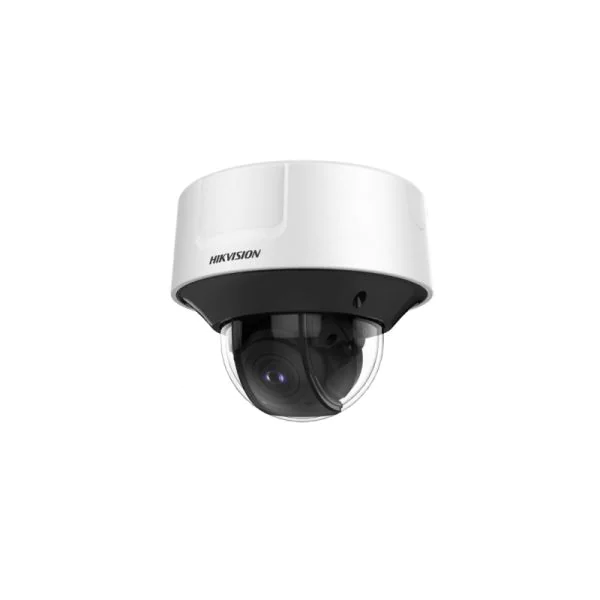

The Hikvision DS-2CD5546G0-IZ(H)S is a high-performance outdoor network camera from the DarkFighter series, known for its exceptional low-light capabilities. This Moto Varifocal Dome camera offers a 4MP resolution, making it an ideal choice for various surveillance applications requiring high clarity and detail. Explore its impressive specifications and versatile features below to understand why it stands out in the market.
Quick Spec
| Resolution | 4 Megapixels |
| Lens | 2.8mm to 12mm Motorized Varifocal |
| IR Range | Up to 50 meters |
| Weatherproof Rating | IP67 |
| Compression | H.265+/H.265/H.264+/H.264 |
Product Features
- DarkFighter technology for superior low-light performance
- 4MP high resolution provides clear and detailed images
- Motorized varifocal lens for flexible viewing angles
- Robust weatherproof IP67 rating for outdoor use
- Advanced video analytics for enhanced security
Product Applications
- City surveillance for monitoring public spaces and ensuring safety
- Commercial properties, such as office buildings and malls, for comprehensive security
- Transport hubs including airports and train stations to oversee large areas
Supported Options
| Mounting Bracket | DS-1273ZJ-140 |
| Junction Box | DS-1280ZJ-DM21 |
| PoE Injector | DS-1H34-0101P |
Compare to Similar Items
| Model | Differences |
| DS-2CD2143G0-IS | 3MP resolution, fixed 2.8mm lens, no varifocal ability |
| DS-2CD2347G1-L | 4MP ColorVu technology, fixed lens, no motorized focus |
| DS-2CD5185G0-IZS | 8MP resolution, motorized varifocal lens, higher price |
Get more information
For further details about the Hikvision DS-2CD5546G0-IZ(H)S, contact our team through Live Chat or email us at sales@router-switch.com. Check Hikvision DS-2CD5546G0-IZ(H)S price and DS-2CD5546G0-IZ(H)S datasheet, buy Hikvision DS-2CD5546G0-IZ(H)S DarkFighter Outdoor Moto Varifocal Dome Network Camera series with best price and fast shipping. Free Live Chat is supported.
Hikvision DS-2CD5546G0-IZ(H)S Specification
DS-2CD5546G0-IZ(H)S Specifications |
|
| Brand | Hikvision |
| Model | DS-2CD5546G0-IZ(H)S |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Resolution | 4MP (2688 x 1520) |
| Day/Night Function | IR Cut Filter with Auto Switch |
| WDR | 120 dB WDR |
| Lens Type | Motorized Varifocal |
| Focal Length | 2.8 to 12 mm |
| Shutter Speed | 1/3 to 1/100,000 s |
| Minimum Illumination | Color: 0.0014 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| IR Range | Up to 30 meters |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Network Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP, IGMP, 802.1X |
| Power Supply | 12 VDC 25%, PoE (802.3af, class 3) |
| Power Consumption | Max. 7 W |
| Operating Conditions | -30C to 60C (-22F to 140F), Humidity 95% or less (non-condensing) |
| Ingress Protection | IP67 |
| Impact Protection | IK10 |
| Dimensions | 164.5 144.5 mm (6.48″ 5.69″) |
| Material | Metal and Plastic |
Reviews
There are no reviews yet.
