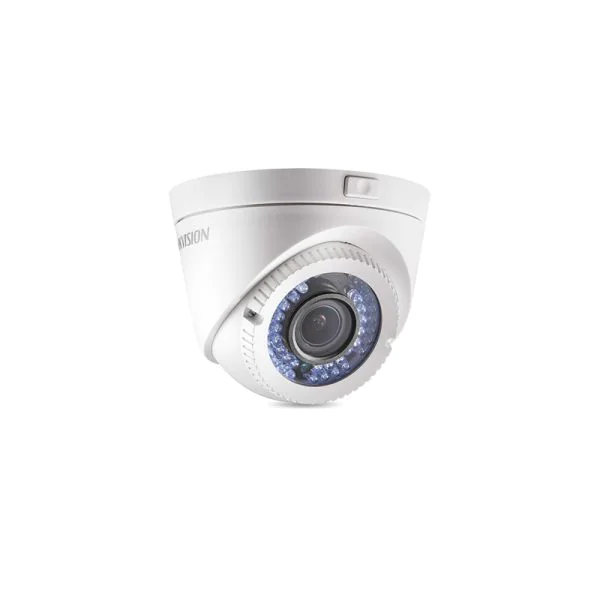

The Hikvision DS-2CE56D0T-VPIR3F is a versatile security camera equipped with advanced imaging technology and robust features. It offers 1080p resolution and supports four different video output formats: TVI, CVI, AHD, and CVBS. Designed to withstand harsh conditions with IP66 protection, it is ideal for both indoor and outdoor surveillance.
Quick Spec
| Resolution | 1080p |
| Lens | 2.8~12mm |
| IR Distance | 40m |
| Protection Level | IP66 |
| Power Supply | 12 VDC |
Product Features
- 4-in-1 video formats: TVI, CVI, AHD, CVBS
- 3D DNR (Digital Noise Reduction) technology
- Up to 40m IR distance with 24 IR LEDs for night vision
- IP66 weather-resistant rating
- Wide dynamic range for better image quality
Product Applications
- Residential surveillance for enhanced home security
- Monitoring commercial establishments like retail stores
- Outdoor surveillance for parking lots or construction sites
Supported Options
| Accessory | Model |
| Wall Mount Bracket | DS-1258ZJ |
| Junction Box | DS-1280ZJ-XS |
| Power Adapter | 12VDC-2A |
Compare to Similar Items
| Model | Differences |
| DS-2CE56D0T-IT3 | No IP66 protection, Fixed Lens |
| DS-2CE16D0T-IRF | IR Distance up to 20m, Fixed Lens |
| DS-2CE56D7T-VPIT3 | Available in 3MP resolution, Enhanced night vision |
Get more information
For further details about the Hikvision DS-2CE56D0T-VPIR3F and its pricing, please contact us via Live Chat or email us at sales@router-switch.com.
Hikvision DS-2CE56D0T-VPIR3F Specification
DS-2CE56D0T-VPIR3F Specifications |
|
| Brand | Hikvision |
| Model | DS-2CE56D0T-VPIR3F |
| Resolution | 1080p |
| Video Format | TVI, CVI, AHD & CVBS (4-in-1) |
| 3D DNR | Yes |
| Weatherproof Rating | IP66 |
| Lens | 2.8~12mm |
| ICR (Infrared Cut Filter Removal) | Yes |
| IR Distance | 40m |
| IR LEDs | 24 pcs |
| Power Supply | 12 VDC |
| Day & Night | IR Cut Filter with Auto Switch |
| Operating Temperature | -40C to 60C (-40F to 140F) |
| Storage Temperature | -40C to 60C (-40F to 140F) |
| Operating Humidity | 90% or less (non-condensing) |
| Dimensions | ? 111 82.4 mm (? 4.4 3.2 inch) |
| Video Output | 1 Analog HD output |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Signal System | PAL/NTSC |
| Minimum Illumination | 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR |
