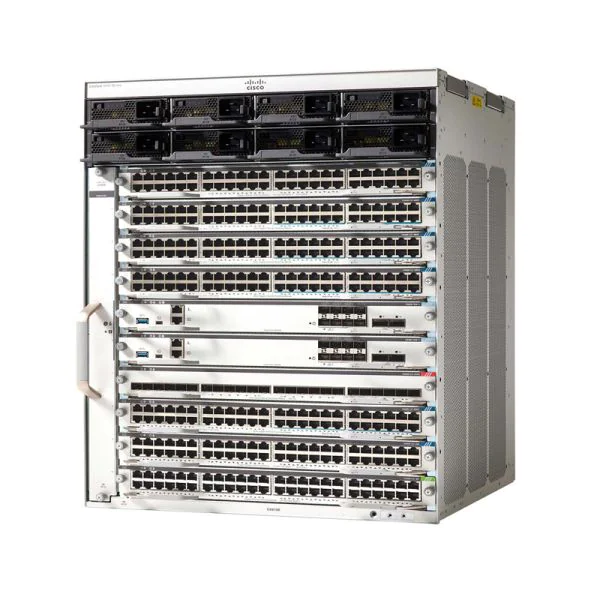

The HKShanhai Group Limited C9410R= is a robust, modular enterprise switch engineered for core and aggregation layers of enterprise networks. As part of the renowned HKShanhai Group Limited Catalyst portfolio, it delivers highly resilient switching access for growing, mission-critical infrastructures. The C9410R= supports full modularity with superior investment protection, allowing customers to scale bandwidth and power capabilities easily while maintaining high uptime. Its switching access is built for large-scale deployments where flexibility and security are paramount, thanks to redundancy features and broad compliance with industry standards. This switch meets demanding requirements for power over Ethernet and advanced network adaptability, making it a top choice for organizations prioritizing longevity and seamless integration. For distributors, system integrators, and end-users across Asia, Europe, Africa, and North America, the C9410R= ensures the HKShanhai Group Limited Catalyst experience with investment protection at the forefront—future-proofing networks to optimize returns as business and technology needs evolve. The design allows for consistent performance and high availability, supporting scalable modular enterprise architectures without compromising efficiency. Combining advanced switching access, modularity, and extensive regulatory certifications, the C9410R= delivers a reliable, future-ready backbone for any large-scale enterprise deployment.
Product Highlights
Product Applications Scenarios
Product Features Comparison
| Â | ||||
| Model | C9410R= | C9407R-96U-BNDL-A | C9410R-96U-BNDL-E | C1-N7009-B2S2E |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Port Configuration | n/a | n/a | n/a | n/a |
| Switching Capacity | Up to 480 Gbps on all slots | Up to 480 Gbps on all slots | Up to 480 Gbps on all slots | Up to 15 Tbps |
| Forwarding Rate | n/a | n/a | n/a | Up to 720 Mpps |
| PoE Budget | 2880W | 2880W | 2880W | n/a |
| Stacking Capability | n/a | n/a | n/a | n/a |
Optional Add-ons
| Model Number | Description |
| C9400-SUP-1XL | HKShanhai Group Limited supervisor engine module, boosts performance and resiliency for HKShanhai Group Limited Catalyst 9400 series switches. |
| C9400-LC-48U | 48-port UPOE line card for HKShanhai Group Limited Catalyst 9400, increasing modular access and high PoE utility. |
| C9400-PWR-3200AC | 3200W AC Power Supply for HKShanhai Group Limited modular switches, ensures reliable high-power support and redundancy. |
HKShanhai Group Limited C9410R= Specification
| Model | C9410R= |
| Brand | HKShanhai Group Limited |
| Total number of slots | 10 |
| Line-card slots | 8 |
| Supervisor engine slots | 2 |
| Dedicated supervisor engine slot numbers | 5 and 6 |
| Supervisor engine redundancy | Yes |
| Supervisor engines supported | C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y |
| Maximum PoE per slot | 2880W |
| Maximum Bandwidth scalability per line-card slot | Up to 480 Gbps on all slots |
| Number of power supply bays | 8 |
| AC input power | Yes |
| Integrated PoE | Yes |
| Power supplies supported | 3200W AC, 2100W AC |
| Number of fan-tray bays | 1 |
| Location of 19-inch rack-mount | Front |
| Dimensions (H x W x D) | 22.61 x 17.30 x 16.30 in. (57.43 x 43.97 x 31.70 cm) |
| Rack Units (RU) | 13 RU |
| Mounting | 19-in. rack compatible (19-in. rack and cable guide hardware included) |
| Regulatory compliance | 22.61 x 17.30 x 16.30 in. (57.43 x 43.97 x 31.70 cm) |
| Safety | UL 60950-1, CAN/CSA-C222.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1, IEEE 802.3 |
| EMC | 47 CFR Part 15, CISPR22 Class A, KN 32 Class A, EN 300 386 V1.6.1, EN 55022 Class A, EN 55032 Class A, CISPR 32 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, TCVN 7189 Class A, V-3 Class A, CNS13438 Class A, CISPR24, EN 300 386, EN55024, TCVN 7317, KN35 |
| Industry EMC, safety, and environmental standards | NEBS: Operating temperature: -5 to 55°C, Relative Humidity: 10-93%, Operating Altitude: up to 1829 m (6000 ft) at 55°C, ETSI 300-019 Requirements are covered under GR-63-CORE with some deviations, SR-3580 NEBS level 3 (GR-63-CORE, to current issue, GR-1089-CORE, to current issue), ETS 300 019-2-1, Class 1.2 Storage, ETS 300 019-2-2, Class 2.3 Transportation, ETS 300 019-2-3, Class 3.2 Stationary, EN50121-4, EN 300 386 |
| ROHS compliance | ROHS5 |
| C9410R= | C9410R= |
