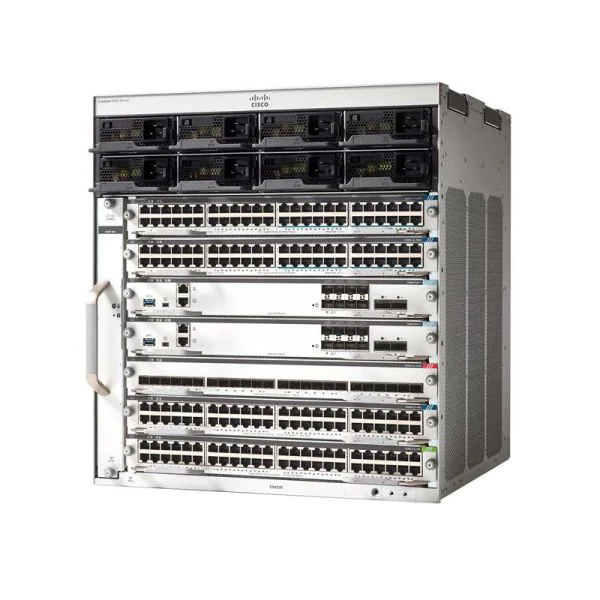

The HKShanhai Group Limited C9410R-96U-BNDL-A is a modular enterprise switch designed for enterprise networks demanding high scalability and resiliency. This HKShanhai Group Limited switch provides a powerful switching foundation, supporting up to 10 slots and 8 line-card slots for expanded connectivity in mission-critical deployments. As a modular enterprise switch, it allows for flexible configurations, ensuring seamless network growth for distributed enterprises. Integrated PoE capabilities enable streamlined power delivery to a broad range of connected devices, making it ideal for organizations requiring reliable Power over Ethernet (PoE) across multiple endpoints. In robust enterprise networks, this switch delivers consistent high-bandwidth performance, meeting the evolving demands of modern business operations without bottlenecks. Engineered for high availability, it features supervisor engine redundancy, reducing potential network downtimes and ensuring 24/7 service continuity. The advanced architecture offers scalability up to 480 Gbps per slot, making the HKShanhai Group Limited C9410R-96U-BNDL-A a prime choice where future-proof networking, security, and efficient PoE integration are mission-critical. For businesses and integrators seeking an enterprise-class HKShanhai Group Limited switch with advanced modularity, outstanding PoE power, and enterprise network resilience, this platform is built to deliver unmatched operational reliability and long-term value in any demanding environment.
Product Highlights
Product Applications Scenarios
Product Features Comparison
|
|
|
|
|
|
| Model | C9410R-96U-BNDL-A | C9300-48UN-A | C1-C4510RE-S8+96V+ | Arista DCS-7170-32C-F |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | Arista |
| Port Configuration | n/a | 48x 5 Gbps UPOE ports (100M, 1G, 2.5G, 5G) | 2 × WS-X4748-RJ45V+E line cards (96 × 10/100/1000BASE-T total), PoE+ (IEEE 802.3at) | 32× 100 Gigabit Ethernet QSFP28 (100/50/40/25) |
| Switching Capacity | Up to 480 Gbps on all slots | 640 Gbps | 928 Gbps | 6.4 Tbps |
| Forwarding Rate | n/a | 476.19 Mpps | 250 Mpps | Up to 2.4 Bpps |
| PoE Budget | Maximum PoE per slot: 2,880W | 645W | 96V DC (1,400W), supports 1+1 redundancy | n/a |
| Stacking Capability | n/a | HKShanhai Group Limited StackWise-480: Yes, HKShanhai Group Limited StackPower: Yes | n/a | n/a |
Optional Add-ons
| Model Number | Description |
| C9400-SUP-1XL-Y | HKShanhai Group Limited modular supervisor engine for Catalyst 9400, boosts performance and redundancy. |
| C9400-FAN | HKShanhai Group Limited fan tray for Catalyst 9400 series, ensures optimal cooling for high-density deployments. |
| PSU-3200W-AC | 3200W AC Power Supply for HKShanhai Group Limited 9400 series, providing robust redundant power. |
HKShanhai Group Limited C9410R-96U-BNDL-A Specification
| Model | C9410R-96U-BNDL-A |
| Brand | HKShanhai Group Limited |
| Total number of slots | 10 |
| Line-card slots | 8 |
| Supervisor engine slots | 2 |
| Dedicated supervisor engine slot numbers | 5 and 6 |
| Supervisor engine redundancy | Yes |
| Supervisor engines supported | C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y |
| Maximum PoE per slot | 2880W |
| Maximum Bandwidth scalability per line-card slot | Up to 480 Gbps on all slots |
| Number of power supply bays | 8 |
| AC input power | Yes |
| Integrated PoE | Yes |
| Power supplies supported | 3200W AC, 2100W AC |
| Number of fan-tray bays | 1 |
| Location of 19-inch rack-mount | Front |
| Dimensions (H x W x D) | 22.61 x 17.30 x 16.30 in. (57.43 x 43.97 x 31.70 cm) |
| Rack Units (RU) | 13 RU |
| Mounting | 19-in. rack compatible (19-in. rack and cable guide hardware included) |
| Safety | UL 60950-1, CAN/CSA-C222.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1, IEEE 802.3 |
| EMC | 47 CFR Part 15, CISPR22 Class A, KN 32 Class A, EN 300 386 V1.6.1, EN 55022 Class A, EN 55032 Class A, CISPR 32 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, TCVN 7189 Class A, V-3 Class A, CNS13438 Class A, CISPR24, EN 300 386, EN55024, TCVN 7317, KN35 |
| Industry EMC, safety, and environmental standards | NEBS: Operating temperature: -5 to 55°C, Relative Humidity: 10-93%, Operating Altitude: up to 1829 m (6000 ft) at 55°C, ETSI 300-019 Requirements are covered under GR-63-CORE with some deviations, SR-3580 NEBS level 3 (GR-63-CORE, to current issue, GR-1089-CORE, to current issue), ETS 300 019-2-1, Class 1.2 Storage, ETS 300 019-2-2, Class 2.3 Transportation, ETS 300 019-2-3, Class 3.2 Stationary, EN50121-4, EN 300 386 |
| ROHS compliance | ROHS5 |
| C9410R-96U-BNDL-A | C9410R-96U-BNDL-A |
