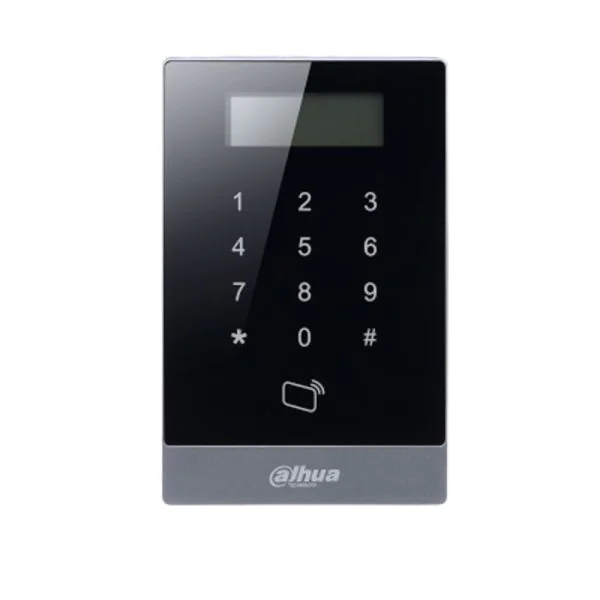

The Dahua ASI1201A is a high-performance RFID standalone device designed for effective access control management. Combining reliability and advanced technology, this Dahua RFID Standalone is an excellent choice for secure and efficient entry systems. Its sleek design and robust functionality make it suitable for various environments and applications.
Quick Spec
| Brand | Dahua |
| Model | ASI1201A |
| Card Type | RFID |
| Communication | Wiegand 34/DH-485 |
| Power Supply | DC 12V |
Product Features
- Supports standalone operation
- Capacity to hold up to 30,000 users
- IP55-rated for outdoor use
- Anti-passback function
- LED indicator for status display
Product Applications
- Commercial buildings for managing employee access
- Residential complexes to enhance security
- Educational institutions for regulating student and staff entry
Supported Options
| Accessory | Model |
| RFID Cards | IC Card1K |
| Power Adapter | DA-12V |
| Mounting Bracket | MB-ASI120 |
Compare to Similar Items
| Model | Difference |
| Dahua ASI1201D | Biometric support |
| Dahua ASR2202A | Higher user capacity (50,000 users) |
| Dahua ASA1212D | Touchscreen display |
Get more information
For further information about the Dahua ASI1201A and its pricing, please contact us through Live Chat or email us at sales@router-switch.com.
Dahua ASI1201A Specification
ASI1201A Specifications |
|
| Brand | Dahua |
| Model | ASI1201A |
| Type | RFID Standalone |
| Card capacity | 3,000 |
| Operating voltage | DC 12V |
| Current draw | <120mA |
| Communication interface | RS485 |
| Reader format | Wiegand |
| Reading distance | Up to 6 cm |
| Operating temperature | -30C to +60C |
| Operating humidity | 10% to 90% RH |
| Protection | IP65 |
| Card type | EM, Mifare |
| Audio alert | Buzzer |
| Installation mode | Surface mount |
| User management | Standalone or PC software |
| LED indicator | Yes |
| Anti-tamper switch | Yes |
| Firmware upgrade | Via RS485 |
| RS485 baud rate | 9600, 19200, 38400, 57600, 115200 |
