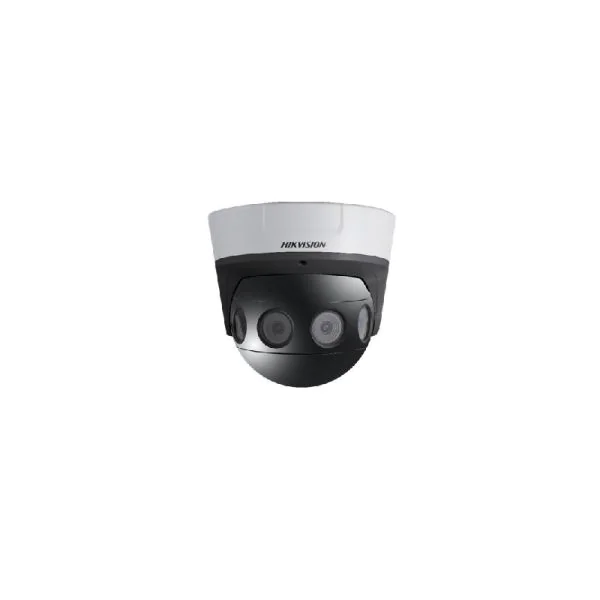

The Hikvision DS-2CD6984G0-IH(S)(AC)(/NFC) is a high-performance 32 MP 180PanoVu Network Camera designed to deliver unparalleled panoramic video surveillance. Equipped with advanced imaging technology, this camera captures ultra-wide, high-definition footage, making it ideal for large-scale security solutions. Its robust features and superior image quality ensure comprehensive coverage and facilitate detailed surveillance, even in expansive areas.
Quick Spec
| Brand | Hikvision |
| Model | DS-2CD6984G0-IH(S)(AC)(/NFC) |
| Resolution | 32 MP |
| Field of View | 180 |
| Network | PanoVu |
Product Features
- Ultra-high resolution of 32 MP for exceptional clarity
- 180panoramic view for comprehensive monitoring
- Integrated Smart IR technology to enhance night vision
- Support for H.265+ compression to optimize storage usage
- Rugged design for outdoor use with IP67 and IK10 ratings
Product Applications
- City surveillance to monitor large urban areas with a single camera
- Public squares and plazas where wide coverage is essential
- Transportation hubs like airports and train stations requiring high-resolution imaging
Supported Options
| Accessory | Model |
| Wall Mount | DS-1602ZJ |
| Junction Box | DS-1280ZJ-S |
| Pole Mount | DS-1275ZJ-S |
Compare to Similar Items
| Model | Differences |
| DS-2CD6944G0-IH | 20 MP resolution, 360view, lower price |
| DS-2CD6986G0-IHS | 40 MP resolution, multi-lens option, higher price |
| DS-2TD2935-10PA | Thermal imaging, 256×192 resolution, specialized use |
Get more information
Check ‘Hikvision DS-2CD6984G0-IH(S)(AC)(/NFC)’ price and ‘DS-2CD6984G0-IH(S)(AC)(/NFC) datasheet, buy ‘Hikvision DS-2CD6984G0-IH(S)(AC)(/NFC) PanoVu Network Camera’ with best price and fast shipping. Free Live Chat is supported. For further information about the product and its price, please contact us through Live Chat or sales@router-switch.com.
Hikvision DS-2CD6984G0-IH(S)(AC)(/NFC) Specification
DS-2CD6984G0-IH(S)(AC)(/NFC) Specifications |
|
| Brand | Hikvision |
| Model | DS-2CD6984G0-IH(S)(AC)(/NFC) |
| Camera Type | 32 MP 180PanoVu Network Camera |
| Resolution | 32 MP (8160 3616) |
| Viewing Angle | Horizontal: 180, Vertical: 85 |
| Lens | 4 mm fixed-focal lens |
| Minimum Illumination | 0.02 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| IR Range | Up to 30 m |
| Compression Standard | H.265+/H.265/H.264+/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Network Interface | 1 RJ45 10M/100M/1000M Ethernet port |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, IEEE 802.1X, QoS, IPv6, UDP,Bonjour |
| Frame Rate | 25 fps (8160 3616) |
| Day/Night | IR cut filter with auto switch |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Input | 1-ch, 3.5 mm audio in interface, Mic in/Line in |
| Audio Output | 1-ch, 3.5 mm audio out interface |
| Alarm Input | 2-ch |
| Alarm Output | 2-ch |
| Operating Conditions | -30 C to 60 C (-22 F to 140 F), humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC 25%, 50/60 Hz, PoE (802.3bt, class 4) |
| Power Consumption | 24 W |
| Dimensions | 325 mm 125 mm 242 mm (12.8″ 4.9″ 9.5″) |
