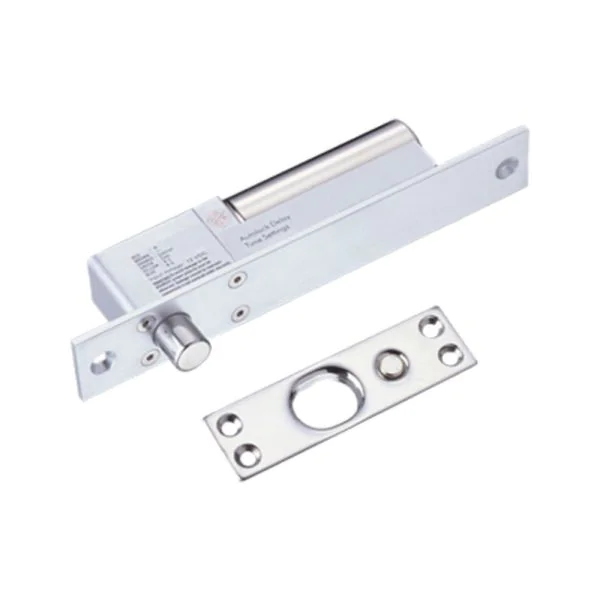

The Dahua Electric Drop Bolt ASF802 is a highly reliable and secure access control solution for any environment requiring advanced locking mechanisms. This drop bolt provides consistency in performance and durability, making it suitable for various applications. With its robust design and ease of use, the Dahua ASF802 stands out as a top choice in electric locking devices.
Quick Spec
| Brand | Dahua |
| Model | ASF802 |
| Lock Type | Electric Drop Bolt |
| Dimensions | 203 x 35 x 42 mm |
| Operating Voltage | 12V DC |
Product Features
- High-strength stainless steel construction
- Fail-safe operation for enhanced security
- Low power consumption
- LED indicator for lock status
- Adjustable time delay (0, 3, 6, 9 seconds)
Product Applications
- Office buildings requiring secure access control systems
- Residential buildings with high security needs
- Data centers and IT rooms for preventing unauthorized access
Supported Options
| Surface Mount Kit | SMK-ASF802 |
| Glass Door Bracket | GDB-ASF802 |
| Extended Cover Plate | ECP-ASF802 |
Compare to Similar Items
| Model | Differences |
| ASF801 | Smaller dimensions, no LED indicator |
| ASF803 | Enhanced tamper resistance, dual voltage operation |
| ASF804 | Integrated alarm function, dual status indicator |
Get more information
For further details and pricing on the Dahua ASF802, please contact us through Live Chat or email us at sales@router-switch.com. Check “Dahua ASF802” price and “ASF802 datasheet”, buy “Dahua ASF800 series” with the best price and fast shipping. Free Live Chat support is available.
Dahua ASF802 Specification
ASF802 Specifications |
|
| Brand | Dahua |
| Model | ASF802 |
| Type | Electric Drop Bolt |
| Operating Voltage | 12VDC/24VDC |
| Current Draw | 900mA and 450mA (Initial and Holding) |
| Lock Size | 204 x 42 x 41 mm |
| Bolt Strength | 7,000N (700Kg) |
| Surface Temperature | °+20°C |
| Door Type | Wooden Door, Glass Door, Metal Door |
| Humidity | 0~90% (non-condensing) |
| Indicator | LED Indicator |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 0% to 95% |
| Function | Fail-safe Mode |
| Material | Stainless Steel |
| Finish | Brushed |
| Certification | CE |
| Warranty | 2 years |
| Relay Output | NC/NO/COM |
| Cylinder Diameter | 16 mm |
| Release Time | 0, 3, or 6 seconds |
