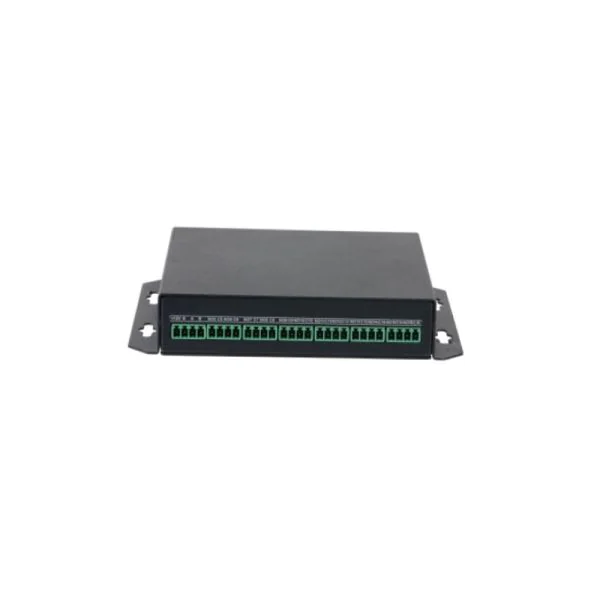

The Dahua ARM716 Output Expansion Module (RS485) is a robust and efficient accessory designed to expand the output capabilities of your existing security or monitoring systems. Perfect for both small and large-scale applications, this module ensures seamless integration with other Dahua equipment, enhancing your system’s performance and reliability.
Quick Spec
| Brand | Dahua |
| Model | ARM716 |
| Communication Protocol | RS485 |
| Power Supply | 12V DC |
| Operating Temperature | -10°C to +55°C |
Product Features
- Supports RS485 communication protocol
- Efficient power consumption with 12V DC
- Operates effectively within a wide temperature range of -10°C to +55°C
- Seamless integration with other Dahua security systems
- Compact and durable design for various installation environments
Product Applications
- Expanding the output capabilities of large-scale security systems in commercial buildings
- Enhancing home security systems with additional output control options
- Integrating with industrial monitoring systems for improved operational control
Supported Options
| Accessory | Model |
| Power Adapter | PWR12V2A |
| RS485 Cable | RC48520X |
| Output Expansion Unit | EXP716 |
Compare to Similar Items
| Feature | ARM716 | ARM718 | ARM820 |
| Communication Protocol | RS485 | RS422 | RS485 |
| Output Channels | 16 | 18 | 20 |
| Power Supply | 12V DC | 15V DC | 12V DC |
| Operating Temperature | -10°C to +55°C | -5°C to +55°C | -10°C to +55°C |
| Design | Compact | Robust | Compact |
Get more information
For further information about the Dahua ARM716 Output Expansion Module (RS485), please contact us through Live Chat or at sales@router-switch.com. Check Dahua ARM716 price and ARM716 datasheet, buy Dahua ARM716 Output Expansion Module with the best price and fast shipping. Free Live Chat support is available.
Dahua ARM716 Specification
ARM716 Specifications |
|
| Brand | Dahua |
| Model | ARM716 |
| Product Type | Output Expansion Module |
| Communication Interface | RS485 |
| Number of Outputs | 16 |
| Output Type | Relay |
| Operating Voltage | 12V DC |
| Power Consumption | 5W |
| Operating Temperature | -10°C to 55°C (14°F to 131°F) |
| Operating Humidity | 10% to 90% (non-condensing) |
| Dimensions (W x H x D) | 144mm x 104mm x 30mm |
| Housing Material | Plastic |
| Color | White |
| Mounting Options | Wall or DIN rail |
| Indicators | LED Status Indicators |
| Surge Protection | Yes |
| Compatibility | Dahua Controllers |
| Certifications | CE, FCC |
| Warranty | 2 Years |
