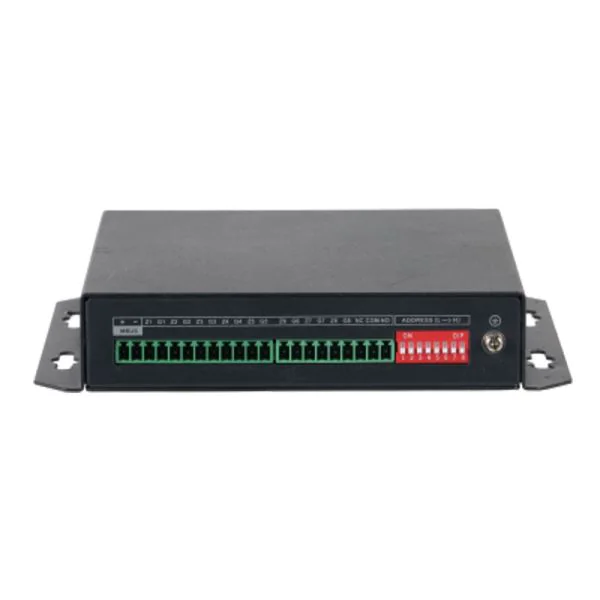

The Dahua ARM808 is an 8-Zone Expansion Module designed for seamless integration with Dahua’s MBuses. This module is instrumental in enhancing the security coverage by adding up to 8 more zones to your existing system. Known for its reliability and advanced technology, the Dahua ARM808 ensures optimal performance and scalability.
Quick Spec
| Brand | Dahua |
| Model | ARM808 |
| Zones | 8 |
| Communication Bus | MBus |
| Power Supply | 12V DC |
Product Features
- Support for 8 additional zones
- Seamless integration with existing Dahua security systems
- Reliable MBus communication
- Easy installation and configuration
- Compact and durable design
Product Applications
- Enhancing security coverage in large office buildings by adding more zones
- Use in residential complexes to improve security monitoring
- Ideal for upgrading existing security systems without extensive rewiring
Supported Options
| Accessory | Model |
| Power Supply Module | Dahua PS1230 |
| MBus Communication Cable | Dahua MBC-100 |
| Mounting Bracket | Dahua MBK-200 |
Compare to Similar Items
| Model | Differences |
| Dahua ARM404 | Supports only 4 zones, smaller coverage area |
| Dahua ARM812 | Supports 12 zones, larger and more costly |
| Dahua ARM408 | 8 zones but uses DBus communication |
Get more information
For further information about the Dahua ARM808, including pricing and datasheet, please contact us via Live Chat or at sales@router-switch.com. Check Dahua ARM808 price and ARM808 datasheet, buy Dahua ARM808 Expansion Module with best price and fast shipping. Free Live Chat support is available.
Dahua ARM808 Specification
ARM808 Specifications |
|
| Brand | Dahua |
| Model | ARM808 |
| Product Type | 8-Zone Expansion Module |
| Communication Bus | MBus |
| Zones Supported | 8 |
| Power Supply | 12 VDC |
| Power Consumption | Max 250 mA |
| Operating Temperature | -10°C to 55°C (14°F to 131°F) |
| Humidity | 10%-90% RH (non-condensing) |
| Dimensions | 178 mm ° 106 mm ° 27 mm |
| Mounting | Wall Mount |
| Input Voltage Range | 10.8 VDC to 13.8 VDC |
| Indicator Lights | Power, Status |
| Certifications | CE, FCC |
| Protection | Overvoltage, Overcurrent |
| Installation Environment | Indoor |
| Wiring | Screw-Terminal |
| Firmware Upgrade | Remote Upgrade via Network |
| Addressing | DIP Switch |
| Compatibility | Compatible with Dahua Control Panels |
