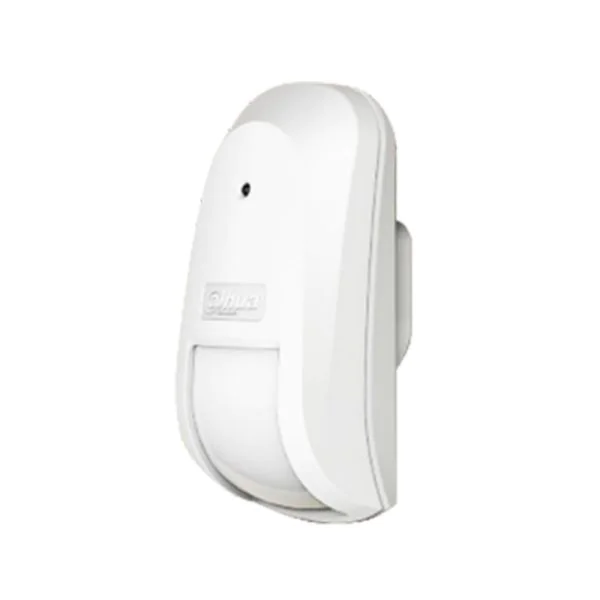

The Dahua ARD1612 Curtain PIR Detector (86 box) is a state-of-the-art security product designed for precise motion detection in restricted areas. This slim and compact device provides high reliability and accuracy, making it suitable for various environments that require a high level of protection. The 86 box design ensures easy installation and integration with existing security systems.
Quick Spec
| Brand | Dahua |
| Model | ARD1612 |
| Detection Range | 8m |
| Installation Height | 2.2m – 2.5m |
| Frequency | 434 MHz/868 MHz |
Product Features
- Compact 86 box design for easy installation
- High-precision curtain detection
- Dual adjustment modes for sensitivity configuration
- Long battery life with low power consumption
- Seamless integration with Dahua security systems
Product Applications
- Residential properties for perimeter protection
- Commercial buildings to monitor entry points
- Warehouses for safeguarding valuable inventory
Supported Options
| Accessory | Model |
| Alarm Panel | Dahua DHI-ARC3008B-W |
| Wireless Repeater | Dahua PFM890 |
| Remote Control | Dahua ARK20C-W |
Compare to Similar Items
| Model | Difference |
| Dahua ARD1220 | Wider detection range |
| Dahua ARD1230 | Higher installation height |
| Dahua ARD1422 | Enhanced sensitivity settings |
Get more information
For further details, please contact through Live Chat or email sales@router-switch.com. Check Dahua ARD1612 price and ARD1612 datasheet, buy Dahua ARD1612 Curtain PIR Detector (86 box) with the best price and fast shipping. Free Live Chat support is available.
Dahua ARD1612 Specification
ARD1612 Specifications |
|
| Brand | Dahua |
| Product Name | ARD1612 |
| Product Type | Curtain PIR Detector |
| Installation Type | 86 box |
| Detection Method | Passive Infrared (PIR) |
| Detection Range | 12m |
| Detection Angle | 90° |
| Operating Voltage | 9 to 16V DC |
| Current Draw | 15mA |
| Alarm Output | NC/NO optional |
| LED Indicator | Yes |
| Mounting Height | 2.2m to 2.5m |
| Operating Temperature | -10°C to +50°C |
| Operating Humidity | 10% to 90% RH |
| Dimensions (L x W x H) | 86mm x 86mm x 30mm |
| Color | White |
| Certification | CE, FCC |
| Protection Level | IP20 |
| Housing Material | ABS Plastic |
| Anti-tamper | Yes |
