AIR-CT5508-250-K9 includes 250 access point licenses and delivers superior 802.11n/ac performance that optimized up to nine times wireless performance of 802.11a/g networks. It supports up to 500 access points and 7000 clients with necessary licenses.
Quick Specs

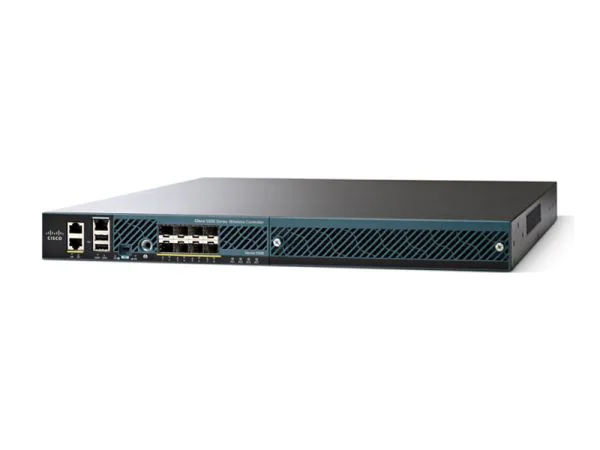

Figure 1 shows the appearance of AIR-CT5508-250-K9.
Table 1 shows the Quick Specs.
|
Product Code |
AIR-CT5508-250-K9 |
|
Access points |
250 licenses include (500 licenses max) |
|
Device Type |
Wireless controller |
|
Ports |
8 x SFP uplinks |
|
Console ports |
10/100/1000 RJ-45 |
|
Wireless standards |
802.11a/b/g/d/e/h/k/n/r/u/w/ac |
|
Dimensions (W x D x H) |
44 x 53.9 x 4.45 cm |
Product Details
Figure 2 shows the front panel of AIR-CT5508-250-K9.
Note??/p>
|
??/p> |
Service port (RJ-45) |
??/p> |
Console port (Mini USB Type B) |
|
??/p> |
Console port (RJ-45) |
??/p> |
SFP distribution ports |
|
??/p> |
Redundant port (RP) for future use (RJ-45) |
??/p> |
Management port LEDs |
|
??/p> |
USB ports 0 and 1 (Type A) |
??/p> |
Expansion module (EM) slot |
· You can use only one console port (either RJ-45 or mini-USB). When you connect to one console port, the other is disabled.
Figure 3 shows the back panel of AIR-CT5508-250-K9.
Note:
|
??/p> |
Power supply PS1 |
??/p> |
Power supply PS2 slot with blank cover |
|
??/p> |
Power supply PS1 on/off switch |
??/p> |
Fan tray |
|
??/p> |
Power supply PS1 AC cable connection |
Compare to Similar Items
Table 3 shows the comparison of similar items.
|
Models |
AIR-CT5508-250-K9 |
||
|
Access Points Licenses |
50 access points licenses |
100 access points licenses |
250 access points licenses |
|
Max Access Points |
500 |
500 |
500 |
|
Max Client Support |
7000 |
7000 |
7000 |
|
Ports |
8 x SFP uplinks |
8 x SFP uplinks |
8 x SFP uplinks |
Get more information
Do you have any question about the AIR-CT5508-250-K9
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited AIR-CT5508-250-K9 Specification
AIR-CT5508-250-K9 Specifications |
|
|
Access points |
250 licenses include (500 licenses max) |
|
Device Type |
Wireless controller |
|
Ports |
8 * SFP uplinks |
|
Console ports |
10/100/1000 RJ-45 |
|
Wireless standards |
802.11a/b/g/d/e/h/k/n/r/u/w/ac |
|
License |
5 AP licese: L-LIC-CT5508-5AÂ Â 25 AP licese: L-LIC-CT5508-25AÂ Â 50 AP licese: L-LIC-CT5508-50AÂ 100 AP licese: L-LIC-CT5508-100AÂ Â 250 AP licese: L-LIC-CT5508-250AÂ Â DTLS License: L-LIC-CT55-LPE-K9 |
|
Security standards |
 Wi-Fi Protected Access (WPA)   IEEE 802.11i (WPA2, RSN)   RFC 1321 MD5 Message-Digest Algorithm   RFC 1851 The ESP Triple DES Transform   RFC 2104 HMAC: Keyed Hashing for Message Authentication   RFC 2246 TLS Protocol Version 1.0   RFC 2401 Security Architecture for the Internet Protocol   RFC 2403 HMAC-MD5-96 within ESP and AH   RFC 2404 HMAC-SHA-1-96 within ESP and AH   RFC 2405 ESP DES-CBC Cipher Algorithm with Explicit IV  RFC 2406 IP Encapsulating Security Payload (ESP)   RFC 2407 Interpretation for ISAKMP   RFC 2408 ISAKMP   RFC 2409 IKE   RFC 2451 ESP CBC-Mode Cipher Algorithms   RFC 3280 Internet X.509 PKI Certificate and CRL Profile   RFC 3602 The AES-CBC Cipher Algorithm and Its Use with IPsec   RFC 3686 Using AES Counter Mode with IPsec ESP   RFC 4347 Datagram Transport Layer Security   RFC 4346 TLS Protocol Version 1.1 |
|
Encryption |
WEP and Temporal Key Integrity Protocol-Message Integrity Check (TKIP-MIC): RC4 40, 104 and 128 bits (both static and shared keys)   Advanced Encryption Standard (AES): CBC, CCM, Counter Mode with Cipher Block Chaining Message Authentication Code Protocol (CCMP)  DES: DES-CBC, 3DES   Secure Sockets Layer (SSL) and Transport Layer Security (TLS): RC4 128-bit and RSA 1024- and 2048-bit   DTLS: AES-CBC   IPSec: DES-CBC, 3DES, AES-CBC |
|
Authentication, Authorization, and Accounting (AAA) |
 IEEE 802.1X   RFC 2548 Microsoft Vendor-Specific RADIUS Attributes   RFC 2716 PPP EAP-TLS   RFC 2865 RADIUS Authentication   RFC 2866 RADIUS Accounting   RFC 2867 RADIUS Tunnel Accounting  RFC 3576 Dynamic Authorization Extensions to RADIUS   RFC 3579 RADIUS Support for EAP   RFC 3580 IEEE 802.1X RADIUS Guidelines   RFC 3748 Extensible Authentication Protocol   Web-based authentication   TACACS support for management users |
