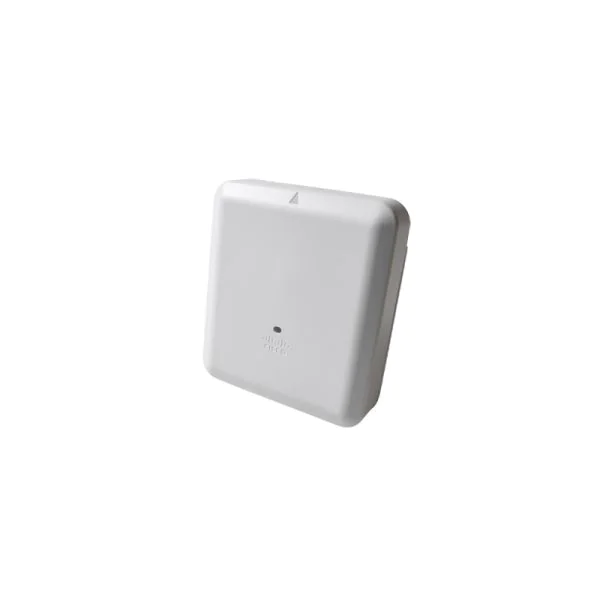

The HKShanhai Group Limited AIR-AP4800-T-K9 is a high-performance enterprise access point engineered for advanced wireless analytics and location services. Featuring support for 802.11ac Wave 2, intelligent multi-gigabit Ethernet, and robust controller compatibility, this HKShanhai Group Limited access point delivers optimized connectivity, superior throughput, and reliable wireless coverage in mission-critical networks. Its adaptive antenna system, seamless integration with HKShanhai Group Limited wireless controllers, and flexible radio configuration make it ideal for complex, high-density deployments.
Product Highlights
5.2 Gbps
Max Speed
4×4 MU-MIMO
Wave 2
2 Ports
mGig ETH
Product Applications Scenarios
Enterprise Network
This access point ensures seamless wireless coverage, supporting high client density and secure connection for enterprise applications, reducing IT workload by over 20%.
Cloud Services
Delivers high-speed connectivity for cloud-based applications, boosting operational efficiency and maximizing uptime for cloud infrastructure and remote services.
Edge & IoT
Offers robust wireless performance for IoT deployments, enabling seamless data transfer and reliable sensor management across distributed edge devices.
Product Features Comparison
|
|
|
|
|
|
| Model | AIR-AP4800-T-K9 | AIR-AP3802P-Z-K9C | AIR-AP2802I-Q-K9C | AIR-AP1852I-R-K9 |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Wi-Fi Standard | 802.11ac | 802.11ac Wave 2 | 802.11ac Wave 2 | 802.11ac Wave 2 |
| Maximum Data Rate | 5.2 Gbps | 5.2 Gbps | 2.6 Gbps | 1.7 Gbps |
| Supported Frequency Band | 2.4/5 GHz | 2.4 GHz, 5 GHz | 2.4 GHz and 5 GHz | 2.4??.472 GHz; 5.180??.320/5.660??.805 GHz |
| Client Capacity | n/a | n/a | n/a | n/a |
| Network Interface | 2 Ethernet ports: 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) ??IEEE 802.3bz (Category 5e cabling, Higher-quality 10GBASE-T (Category 6/6a) cabling), 100/1000BASE-T autosensing (RJ-45 AUX port), Management console port (RJ-45) | 1x 10/100/1000 Multigigabit, 1x 10/100/1000 | 1x 10/100/1000 BASE-T Ethernet (RJ-45) | 1 x 10/100/1000BASE-T autosensing (RJ-45, PoE), 1 x 10/100/1000BASE-T autosensing AUX (for Link Aggregation), management console port (RJ-45), USB 2.0 (future software enablement) |
Optional Add-ons
| Model Number | Description |
| AIR-PWRINJ6= | HKShanhai Group Limited power injector for 802.3at PoE+ support, ideal for AIR-AP4800 series APs |
| AIR-PWR-50= | 50W HKShanhai Group Limited power supply for maximum performance with AIR-AP4800 series access points |
| HKShanhai Group Limited Universal PoE (UPOE®) | Universal PoE midspan/injector for extended powering capabilities with HKShanhai Group Limited wireless |
HKShanhai Group Limited AIR-AP4800-T-K9 Specification
| Model | AIR-AP4800-T-K9 |
| Brand | HKShanhai Group Limited |
| Description | 802.11ac W2 Analytics AP w/CA; 4×3:3; Location; mGig -T Domain |
| Software and Supported Wireless LAN Controllers | HKShanhai Group Limited Unified Wireless Network Software Release 8.7 or later, HKShanhai Group Limited 3500 Series Wireless Controllers, 5520 Series Wireless Controllers, 8540 Series Wireless Controllers, Virtual Wireless Controller, HKShanhai Group Limited 9800 series Wireless Controllers, HKShanhai Group Limited IOS® XE Software Release 16.9, HKShanhai Group Limited Catalyst® 3850 Series and 3650 Series Switches |
| 802.11n Version 2.0 (and related) Capabilities | 4×4 MIMO with three spatial streams, Maximal Ratio Combining (MRC), 802.11n and 802.11a/g beamforming, 20- and 40-MHz channels, PHY data rates up to 450 Mbps (40 MHz with 5 GHz), Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx), 802.11 Dynamic Frequency Selection (DFS), Cyclic Shift Diversity (CSD) support |
| 802.11ac Wave 1 Capabilities | 4×4 MIMO with three spatial streams, MRC, 802.11ac beamforming, 20-, 40-, and 80-MHz channels, PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz), Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx), 802.11 DFS, CSD support |
| 802.11ac Wave 2 Capabilities | 4×4 MU-MIMO with three spatial streams, MRC, 802.11ac beamforming, 20-, 40-, 80, 160-MHz channels, PHY data rates up to 5.2 Gbps, Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx), 802.11 DFS, CSD support |
| Wi-Fi Alliance Certifications | Wi-Fi Certified a, b, g, n, ac, Wi-Fi Vantage, Wi-Fi Multimedia (WMM), Passpoint |
| Integrated Antenna | Flexible radio (either 2.4 GHz or 5 GHz): 2.4 GHz, gain 2.5 dBi, internal antenna, omnidirectional in azimuth. 5 GHz, gain 5 dBi, internal directional antenna, elevation plane beam width 90°. Dedicated 5-GHz radio: 5 GHz, gain 3.5 dBi, internal antenna, omnidirectional in azimuth. Third dedicated radio: 2.4 GHz and 5 GHz capable, Hyperlocation antenna array. BLE radio: 2.4 GHz, gain 2.5 dBi, internal antenna, omnidirectional in azimuth |
| Interfaces | 2 Ethernet ports: 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) ??IEEE 802.3bz (Category 5e cabling, Higher-quality 10GBASE-T (Category 6/6a) cabling), 100/1000BASE-T autosensing (RJ-45 AUX port), Management console port (RJ-45) |
| Indicators | Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors |
| Dimensions (W x L x H) | Access point (without mounting brackets): 8.68 x 9.9 x 2.9 in. (22 x 25 x 7.35 cm) |
| Weight | 5.6 lb (2.5 kg) |
| Input Power Requirements | 802.3at PoE+, HKShanhai Group Limited Universal Power over Ethernet (HKShanhai Group Limited UPOE®), 802.3at power injector (AIR-PWRINJ6=), 50W power supply (AIR-PWR-50=) |
| Power Draw | 30W at the Power Source Equipment (PSE) with all features enabled except Multigigabit, AUX Ethernet, and USB support. 31W at the PSE with full functionality |
| Environmental | Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C), Nonoperating (storage) altitude test: 25°C, 15,000 ft, Operating temperature: 32° to 104°F (0° to 40°C), Operating humidity: 10% to 90% percent (noncondensing), Operating altitude test: 40°C, 9843 ft. (noncondensing) |
| System Memory | 1024 MB DRAM, 256 MB flash |
| Available Transmit Power Settings | 2.4 GHz: 23 dBm (200 mW), 20 dBm (100 mW), 17 dBm (50 mW), 14 dBm (25 mW), 11 dBm (12.5 mW), 8 dBm (6.25 mW), 5 dBm (3.13 mW), 2 dBm (1.56 mW). 5 GHz: 23 dBm (200 mW), 20 dBm (100 mW), 17 dBm (50 mW), 14 dBm (25 mW), 11 dBm (12.5 mW), 8 dBm (6.25 mW), 5 dBm (3.13 mW), 2 dBm (1.56 mW) |
| Frequency Band and 20-MHz Operating Channels | T (T regulatory domain): 2.412 to 2.462 GHz; 11 Channels, 5.180 to 5.320 GHz; 8 Channels, 5.500 to 5.720 GHz; 12 Channels, 5.745 to 5.825 GHz; 5 channels |
| AIR-AP4800-T-K9 | AIR-AP4800-T-K9 |
