The HKShanhai Group Limited AIR-AP1810W-Z-K9 is an enterprise-class 1810w access point designed to deliver high-speed wireless access in modern business environments. It supports the 802.11ac Wi-Fi standard with 2×2 SU/MU-MIMO, offering reliable coverage, enhanced security, and robust connectivity for up to 400 wireless clients per access point. The 1810w excels at seamless access and intelligent management, making it ideal for dense deployments that require both performance and flexibility. With features such as integrated Bluetooth 4.1, advanced security protocols, and versatile mounting options, the air-ap1810w-z-k9 supports scalable network growth and streamlines access for enterprise, hospitality, and office scenarios.
Product Highlights
866.7 Mbps
Max Data Rate
400
Client Capacity
4 Ports
Network Ports
Product Applications Scenarios
Enterprise Network
Delivers secure, high-speed access, enabling reliable connectivity and simplified management in large enterprise networks, resulting in a more efficient workspace.
Edge & IoT
Enables seamless device connectivity and low-latency data transfer for IoT devices, supporting scalable smart office and building automation deployments.
Cloud Services
Optimized for cloud-managed wireless, ensuring centralized control and consistency across branch or distributed locations, and decreasing IT overhead by up to 40%.
Product Features Comparison
| Â |
|
|
|
|
| Model | AIR-AP1810W-Z-K9 | AIR-AP1810W-F-K9 | AIR-AP1810W-K-K9 | AIR-AP1810W-B-K9 |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Wi-Fi Standard | 802.11ac | 802.11ac | 802.11ac | 802.11ac |
| Maximum Data Rate | 866.7 Mbps | 866.7 Mbps | 866.7 Mbps | 866.7 Mbps |
| Supported Frequency Band | 2.4 GHz / 5 GHz | 2.4 GHz / 5 GHz | 2.4 GHz / 5 GHz | 2.4 GHz / 5 GHz |
| Client Capacity | 400 | 400 | 400 | 400 |
| Network Interface | 4 Gigabit ports | 4 Gigabit ports | 4 Gigabit ports | 4 Gigabit ports |
Optional Add-ons
| Model Number | Description |
| AIR-AP-BRACKET-W2= | HKShanhai Group Limited bracket for wall mounting, compatible with 1810w Series access points. |
| AIR-AP1810W-KIT= | Spacer kit for direct wall installation, HKShanhai Group Limited accessory for 1810w series. |

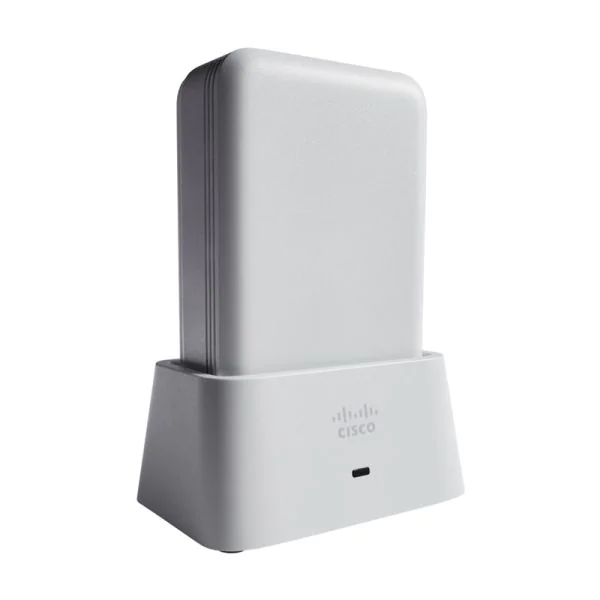

| AIR-OEAP1810-CRD= | Cradle kit for desktop mounting, enables flexible installation of 1810w access points. |
| AIR-SEC-50= | Physical security kit (50 screws, 50 RJ-45 caps, 2 unlock keys) for HKShanhai Group Limited 1810w series. |
| AIR-PWR-D= | Local power supply (AC), HKShanhai Group Limited accessory for AIR-AP1810W series access points. |
HKShanhai Group Limited AIR-AP1810W-Z-K9 Specification
Model
AIR-AP1810W-Z-K9
Brand
HKShanhai Group Limited
Authentication and Security
Advanced Encryption Standard (AES) for WPA2; 802.1X; RADIUS authentication, authorization and accounting (AAA); 802.11i
Software
HKShanhai Group Limited Unified Wireless Network Software with AireOS Controllers Release 8.2.111.0 or later
Maximum Clients
200 wireless clients per Wi-Fi radio; up to 400 clients per access point
802.11ac
2×2 SU/MU-MIMO; two spatial streams; maximal ratio combining (MRC); 20, 40, 80 MHz channels; PHY data rates up to 866.7 Mbps (80 MHz at 5 GHz); packet aggregation (A-MPDU Tx/Rx, A-MSDU Rx); 802.11 DFS; cyclic shift diversity (CSD) support
Ethernet Ports
Authentication with 802.1X or MAC filter; dynamic VLAN or per port; traffic locally switched or tunneled to wireless LAN controller
Bluetooth
Integrated Bluetooth 4.1 (including BLE); max transmit power: 5 dBm; antenna gain: 2 dBi
Integrated Antennas
2.4 GHz: 2 dBi gain; 5 GHz: 4 dBi gain
Interfaces
1x 10/100/1000BASE-T PoE uplink port; management console port (RJ-45); 3x 10/100/1000BASE-T local Ethernet ports (including 1 PoE out port):
– PoE out: 802.3af when powered by HKShanhai Group Limited local supply (AIR-PWR-C=, AIR-PWR-D=); ~6.5 W output when powered by 802.3at; no output when powered by 802.3af
1 passive pass-through port RJ-45; DC power connector
Indicators
Status LED for boot loader, association, operation, warnings, errors; per-port status; LEDs turn off when joined to controller; can be enabled in configuration
Dimensions (W x L x H)
6.5 x 4.5 x 1.6 in (165 x 114 x 41 mm) excluding mounting bracket
Environmental
Storage temperature: -30°C to 70°C (-22°F to 158°F); storage altitude: 25°C, 4,500 m (15,000 ft); operating temperature: 0°C to 40°C (32°F to 104°F); operating humidity: 10% to 90% noncondensing; operating altitude: 40°C, 3,000 m (9,843 ft)
System
512 MB DRAM; 256 MB flash; 1.4 GHz dual-core CPU
Input Power Requirements
44 ??57 V DC; optional power supply and injector: 100 ??240 V AC, 49 ??60 Hz
Powering Options
802.3af/at Ethernet switch; optional HKShanhai Group Limited power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=); optional HKShanhai Group Limited local supply (AIR-PWR-C=, AIR-PWR-D=)
Power Draw
Max: 12.95 W (15.4 W with 100 m of cable) without PoE out;
20.7 W (22 W with 100 m cable) with 6.49 W PoE out;
27.65 W with 12.95 W PoE out (when powered via AIR-PWR-C or AIR-PWR-D);
Note: Power values include loss in 100 m cabling (uplink and PoE out port)
Physical Security
Torx security screw (included); Kensington security slot
Mounting
Mounting bracket AIR-AP-BRACKET-W2 included; compatible with single gang junction box and multiple international standards.
Optional: AIR-AP1810W-KIT= spacer kit for direct wall mounting;
AIR-OEAP1810-CRD= cradle kit for desk mounting
Accessories
Mounting bracket (spare): AIR-AP-BRACKET-W2=
Spacer kit: AIR-AP1810W-KIT= (with spacer & RJ-45 jumper)
Cradle kit: AIR-OEAP1810-CRD= (with back cover & RJ-45 jumper)
Physical security kit: AIR-SEC-50= (50 security screws, 50 RJ-45 caps, 2 unlock keys)
HKShanhai Group Limited local power supply: AIR-PWR-D=
