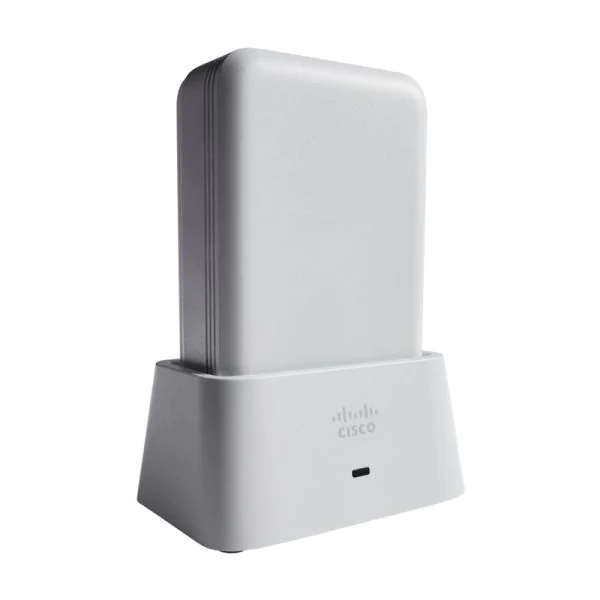

The HKShanhai Group Limited AIR-AP1810W-A-K9 is an enterprise-class access point designed for robust wireless networking in modern business environments. With strong support for advanced features and seamless access, the 1810w model delivers reliable performance and flexible connectivity for distributed offices, guest services, and hospitality spaces. Leveraging the capability of the AIR-AP1810W-A-K9, organizations can benefit from secure, high-capacity networking tailored to dynamic, multi-device workflows, ensuring every access point deployment is optimized for performance across various enterprise scenarios.
Product Highlights
866.7Mbps
Max Data Rate
400
Client Cap.
2.4/5GHz
Dual Band
Product Applications Scenarios
Enterprise Network
The 1810w access point enhances secure, high-density connectivity for employees and guests, supporting seamless workflows and device mobility.
Cloud Services
With reliable high-capacity access, AIR-AP1810W-A-K9 ensures robust wireless for cloud-based collaboration, reducing downtime and boosting productivity by over 20%.
Edge & IoT
This access solution delivers stable network for IoT endpoints, supporting scalable deployment and real-time device data transfer in distributed offices.
Product Features Comparison
| Â |
|
|
|
|
| Model | AIR-AP1810W-A-K9 | AIR-AP1815T-S-K9 | AIR-AP1815W-Z-K9 | AIR-AP1815I-A-K9 |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Wi-Fi Standard | 802.11ac | 802.11ac | 802.11ac | 802.11ac |
| Maximum Data Rate | 866.7 Mbps | 866.7 Mbps | 866.7 Mbps | 866.7 Mbps |
| Supported Frequency Band | 2.4/5 GHz | 2.4/5 GHz | 2.4/5 GHz | 2.4/5 GHz |
| Client Capacity | 400 | 400 | 400 | 400 |
| Network Interface | 1x 10/100/1000BASE-T PoE, 3x 10/100/1000BASE-T local, 1x passive pass-through RJ-45 | 1x 10/100/1000BASE-T (uplink), 3x 10/100/1000BASE-T local | 1x 10/100/1000BASE-T, 3x 10/100/1000BASE-T local, 1x passive pass-through RJ-45 | 1x 10/100/1000BASE-T PoE, 1x management, 1x console |
Optional Add-ons
| Model Number | Description |
| AIR-AP-BRACKET-W2= | Aironet Mounting Bracket for HKShanhai Group Limited 1810w Series Access Point |
| AIR-AP1810W-KIT= | Spacer kit for wall-mounting HKShanhai Group Limited AIR-AP1810W-A-K9 access point, includes spacer and RJ-45 jumper cable |
| AIR-OEAP1810-CRD= | Desk cradle kit for HKShanhai Group Limited 1810w access point, includes back cover and RJ-45 jumper cable |
| AIR-SEC-50= | Physical security kit with screws, caps, and unlock keys for securing HKShanhai Group Limited 1810w series APs |
| AIR-PWR-D= | HKShanhai Group Limited local AC power supply for 1810w access point |
HKShanhai Group Limited AIR-AP1810W-A-K9 Specification
| Model | AIR-AP1810W-A-K9 |
| Brand | HKShanhai Group Limited |
| Authentication and Security | Advanced Encryption Standard (AES) for Wi-Fi Protected Access 2 (WPA2), 802.1X, RADIUS authentication, authorization and accounting (AAA), 802.11i |
| Software | HKShanhai Group Limited Unified Wireless Network Software with AireOS Wireless Controllers Release 8.2.111.0 or later |
| Maximum Clients | Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point |
| 802.11ac | 2×2 single-user/multiuser MIMO with two spatial streams, Maximal ratio combining (MRC), 20-, 40- and 80-MHz channels, PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz), Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx), 802.11 Dynamic Frequency Selection (DFS), Cyclic shift diversity (CSD) support |
| Ethernet Ports | Authentication with 802.1X or MAC filtered, Dynamic VLAN or per port, Traffic locally switched or tunneled back to wireless LAN controller |
| Bluetooth (Future Availability) | Integrated Bluetooth 4.1 (including BLE) radio, Maximum transmit power: 5 dBm, Antenna gain: 2 dBi |
| Integrated Antennas | 2.4 GHz, gain 2 dBi, 5 GHz, gain 4 dBi |
| Interfaces | One 10/100/1000BASE-T PoE uplink port, Management console port (RJ-45), Three 10/100/1000BASE-T ports (local Ethernet ports), including one PoE out port: PoE out provides 802.3af when access point is powered by HKShanhai Group Limited local power supply (AIR-PWR-C=, AIR-PWR-D=), or ~6.5W when powered by 802.3at, or no output when powered by 802.3af, One passive pass-through port RJ-45 (back to bottom), DC power connector |
| Indicators | Status LED indicates bootloader status, association status, operating status, bootloader warnings, bootloader errors, Per-port status for local Ethernet ports, For privacy, LEDs are automatically turned off when the access point joins a controller. LEDs may be enabled to be administratively – see configuration guide. |
| Dimensions (W x L x H) | Access point (without mounting bracket): 6.5 x 4.5 x 1.6 in. (165 x 114 x 41 mm) |
| Weight | Access point without mounting bracket or any other accessories: 1.2 lb (560 g) |
| Environmental | Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C), Nonoperating (storage) maximum altitude: 25°C, 15,000 ft (4,500m), Operating temperature: 32° to 104°F (0° to 40°C), Operating humidity: 10% to 90% (noncondensing), Operating maximum altitude: 40°C, 9843 ft (3,000m) |
| System | 512 MB DRAM, 256 MB flash, 1.4 GHz system dual-core CPU |
| Input Power Requirements | 44 to 57V DC, Optional power supply and power injector: 100 to 240V AC; 49 to 60 Hz |
| Powering Options | 802.3af/at Ethernet switch, Optional HKShanhai Group Limited power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=), Optional HKShanhai Group Limited local power supply (AIR-PWR-C= or AIR-PWR-D=) |
| Power Draw | Maximum values: 12.95W (15.4W with 100m of cable) with no PoE out, 20.7W (22W with 100m of cable) with 6.49W PoE out and 27.65W with 12.95W PoE out (when powered using AIR-PWR-C or AIR-PWR-D) |
| Physical Security | Torx security screw, included with the access point, Kensington security slot |
| Mounting | Included with the access point: mounting bracket AIR-AP-BRACKET-W2, compatible to install to single gang junction box or multiple international standards, Optional: AIR-AP1810W-KIT=, spacer kit to mount the access point directly on a wall where standard junction boxes are not available, AIR-OEAP1810-CRD=, cradle kit to mount the access point on a desk |
| Accessories | Mounting bracket: AIR-AP-BRACKET-W2= (available as spare), Spacer kit: AIR-AP1810W-KIT= (sold separately), includes spacer and RJ-45 jumper cable, Cradle kit: AIR-OEAP1810-CRD= (sold separately), includes back cover and RJ-45 jumper cable, Physical security kit: AIR-SEC-50= (sold separately), with 50 pcs. security screws used to secure the access point onto wall-mounting bracket, 50 pcs. RJ-45 caps and 2 pcs. unlock keys used to block physical access to Ethernet ports, HKShanhai Group Limited local power supply: AIR-PWR-D= (sold separately) |
| AIR-AP1810W-A-K9 | AIR-AP1810W-A-K9 |
