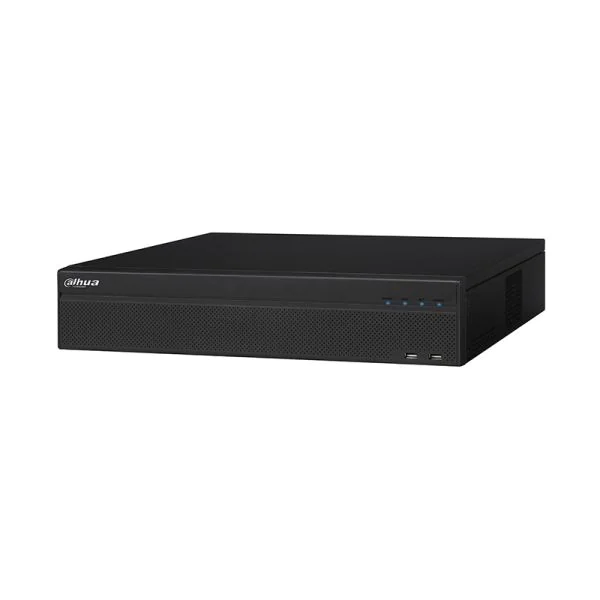

The Dahua X58A3S is a robust and versatile 4K Penta-brid DVR designed to meet advanced security needs with its expansive 16+48 channel capabilities. This advanced 2U rackmount unit is ideal for large-scale surveillance environments, ensuring high-quality video recording and coverage.
Quick Spec
| Channels | 16+48CH |
| Video Resolution | 4K |
| Form Factor | 2U |
| Technology | Penta-brid (TVI, AHD, CVI, CVBS, IP) |
| Storage | Up to 10TB |
Product Features
- Supports 4K video resolution for superior image quality
- Compatibility with multiple video formats: TVI, AHD, CVI, CVBS, IP
- Advanced motion detection and AI capabilities
- Supports multiple storage options for extensive recording capabilities
- User-friendly interface with remote management option
Product Applications
- Large commercial buildings requiring extensive surveillance networks
- Government facilities requiring high security and detailed monitoring
- Large retail stores and warehouses for comprehensive security coverage
Supported Options
| Hard Drive | Seagate SkyHawk 10TB |
| Power Supply | Dahua PWR-5A12 |
| Camera | Dahua HDCVI Bullet Camera |
Compare to Similar Items
| Model | Differences |
| Dahua X54A6S | Supports fewer channels (32CH) |
| Dahua X66A4S | Higher storage capacity (up to 20TB) |
| Dahua X52A1S | Lower resolution (1080P) |
Get more information
Please contact through Live Chat or sales@router-switch.com for further information about the product and its price. Check Dahua X58A3S price and X58A3S datasheet, buy Dahua X58A3S with best price and fast shipping. Free Live Chat is supported.
Dahua X58A3S Specification
X58A3S Specifications |
|
| Brand | Dahua |
| Model | X58A3S |
| Video System | PAL/NTSC |
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| Analog Camera Input | 16 channels, BNC |
| IP Camera Input | 48+16 channels, up to 12MP resolution |
| Audio Input | 1 channel, RCA |
| Video Outputs | HDMI, VGA |
| Audio Output | 1 channel, RCA |
| Internal HDD | 8 SATA ports, up to 8TB capacity for each HDD |
| eSATA | 1 port |
| USB Ports | 1 USB 2.0 port, 1 USB 3.0 port |
| Ethernet | 2 RJ-45 ports (10/100/1000Mbps) |
| Network Functions | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTP, RTSP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P |
| Power Supply | AC100V-240V, 50/60Hz |
| Power Consumption | <15W (without HDD) |
| Operating Temperature | -10��C~+55��C (+14��F~+131��F) |
| Storage Temperature | -20��C~+70��C (-4��F~+158��F) |
| Humidity | 0%~90% RH |
| Dimensions (W x D x H) | 440mm x 455mm x 94.9mm (17.32″ x 17.91″ x 3.74″) |
| Chassis | 2U, rack-mounted |
