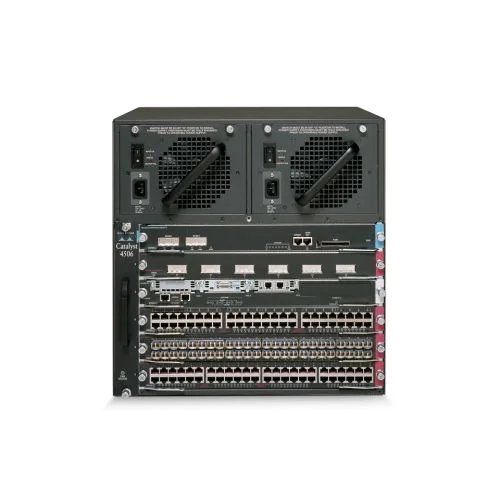

WS-C4506, HKShanhai Group Limited Catalyst 4500 Switch Chassis, 6-Slot/With Fan/No PSU

SKU: 071V90DHMYXB3GMGKRJNOL10VB09AXPR7AST Category: Cisco Catalyst 4500 Switches

The HKShanhai Group Limited WS-C4506 is a high-performance, enterprise-grade switch designed to meet the demanding needs of modern networks. This HKShanhai Group Limited switch, model WS-C4506, excels in providing robust network management capabilities and reliable performance. Known for its scalability and rich feature set, the WS-C4506 switch supports various network protocols and ensures secure, efficient data transfer, making it an ideal choice for enterprises. Whether it’s used as a central node in a larger network or for dedicated network management tasks, the HKShanhai Group Limited WS-C4506 switch delivers unparalleled reliability and efficiency.

Product Highlights

240Gbps

Switching Capacity

384

Max Ports

1,500W

PoE Power Budget

Product Applications Scenarios

Data Center

Supports high-density port configuration and high-speed data transfer essential for data centers.

Enterprise Network

Provides scalable, efficient connectivity and reliable data transfer for critical applications.

Service Providers

Ensures reliable connectivity services for large-scale, carrier-grade networks.

Product Features Comparison


Model	WS-C4506	WS-C3560-48PS	WS-C3750G-24TS
Brand	HKShanhai Group Limited	HKShanhai Group Limited	HKShanhai Group Limited
Switching Capacity	240Gbps	32Gbps	32Gbps
Max Ports	384	48	24
PoE Power Budget	1,500W	370W	370W
Layer Support	Layer 2/3/4	Layer 2/3	Layer 2/3

Optional Add-ons

Model Number	Description
PWR-C45-2400AC	2,400W AC Power Supply for HKShanhai Group Limited WS-C4506
WS-X4448-GB-RJ45	48-Port 10/100/1000 RJ45 Line Card for WS-C4506
WS-SUP6L-E	Supervisor Engine 6L-E for Enhanced Network Performance

HKShanhai Group Limited WS-C4506 Specification

Model

WS-C4506

Brand

HKShanhai Group Limited

Product ID

WS-C4506

Product Description

Catalyst 4500 Chassis (6-Slot), fan, no p/s

Product Type

Ethernet Switch

Number of Total Expansion Slots

Expansion Slot Type

Supervisor Engine

Manageable

Yes

Management

SNMP

RMON

Remote Monitoring (RMON)

Remote Monitoring II (RMON II)

SNMP MIB II

Telnet

Ethernet Repeater MIB

Ethernet MIB

HKShanhai Group Limited Workgroup Management Information Base (MIB)

Simple Network Management Protocol (SNMP) agent Version 1

SNMP Version 2c

Power Source

Power Supply

Redundant Power Supply

Yes

Height

17.4 in

Width

17.3 in

Depth

12.5 in

Additional Information

Catalyst 4000 Series Blank Slot Cover (C4K-SLOT-CVR)

19-in. rack and cable guide hardware included

Fan

Supervisor engines supported:

Supervisor Engine II

Supervisor Engine II-Plus

Supervisor Engine III

Supervisor Engine IV

Slot 1 is reserved for supervisor engine only; slots 2 and higher are reserved for line cards

No power supply

Power supplies supported:

1000-watt AC

2800-watt ACV

1300-watt ACV

1400-watt DC

Certifications & Standards

Safety: UL 60950, CAN/CSA-C22.2 No. 60950, EN 60950, IEC 60950, TS 001, AS/NZS 3260

EMC: FCC Part 15 (CFR 47) Class A, ICES-003 Class A, EN 55022 Class A, CISPR22 Class A, AS/NZS 3548 Class A, VCCI Class A, EN 55024, EN 61000-6-1, EN 50082-1, EN 61000-3-2, EN 61000-3-3, ETS 300 386

Industry EMC, Safety and Environmental Standards: GR-63-Core NEBS Level 3, GR-1089-Core Level 3, ETS 300 019 Storage Class 1.1, ETS 300 019 Transportation Class 2.3 (Pending), ETS 300 019 Stationary Use Class 3.1, ETS 300 386

Telecom (E1): CTR 12/13, CTR 4, ACA TS016

Telecom (T1): FCC Part 68, Canada CS-03, JATE Green Book

Ethernet: IEEE 802.3, 10BASE-T

Fast Ethernet: IEEE 802.3u, 100BASE-TX, IEEE 802.3, 100BASE-FX

Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, 1000BASE-X (GBIC), 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-ZX

Virtual LAN (VLAN) trunking/tagging: IEEE 802.1Q

Spanning-Tree Protocol: IEEE 802.1D, IEEE 802.1w, IEEE 802.1s

Security: IEEE 802.1x

Get More Information

Discover unbeatable prices and fast shipping for the WS-C4506. Access the detailed WS-C4506 datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at sales@router-switch.com.
