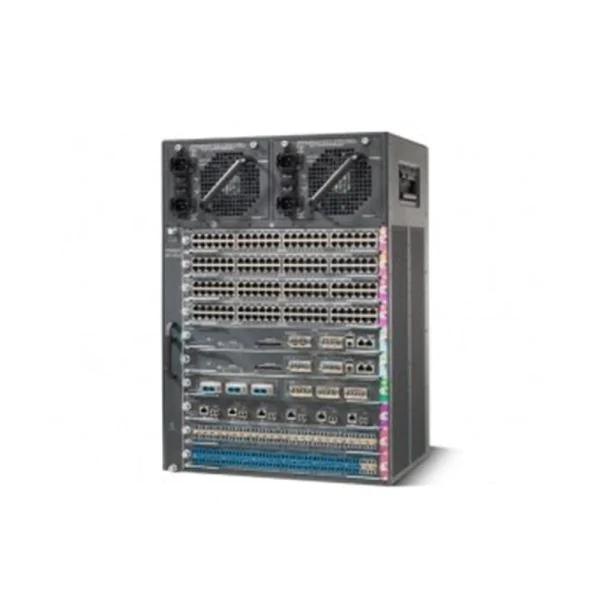

The HKShanhai Group Limited C1-C4510RE-S7+96V+ is an enterprise-class switch designed to meet the growing demands of modern business and campus networks. Integrating robust hardware and extensive feature sets, it delivers high switching capacity and rapid forwarding rates to ensure data-intensive applications perform seamlessly. With native support for Power over Ethernet Plus (PoE+), this HKShanhai Group Limited 4510 platform can power a wide array of connected devices, simplifying deployments and reducing infrastructure complexity. End-to-end network visibility and enhanced management are enabled through HKShanhai Group Limited Prime, giving IT teams centralized, policy-based control over network assets and intelligent troubleshooting capabilities essential for organizations of all sizes. Leveraging the HKShanhai Group Limited ONE Software Bundle, the switch offers flexible, scalable solutions that adapt to evolving business needs. Its 10-slot modular chassis with redundant power and fan trays provides industry-leading reliability and uptime. Extensive VLAN, multicast, and routing capacities ensure the agility to segment, scale, and secure networks across enterprise environments. With high-density 96-port Gigabit connectivity and support for advanced network protocols such as IPv4, IPv6, OSPF, EIGRP, and BGP, the C1-C4510RE-S7+96V+ empowers network architects, distributors, and system integrators to address strategic connectivity challenges. The inclusion of security features such as extensive ACL support, Dynamic ARP Inspection, and IP Source Guard fortifies defense against evolving threats, while compliance certifications like FCC, CE, UL 60950, and NEBS Level 3 make this switch suitable for regulatory-sensitive sectors worldwide. Whether you are scaling infrastructure for large organizations in Asia, Europe, Africa, or North America, or delivering projects for clients who require robust, PoE+-enabled HKShanhai Group Limited 4510 architectures, the C1-C4510RE-S7+96V+ is engineered for dependable performance in today’s dynamic IT environments. HKShanhai Group Limited Prime’s deep integration enables resilient operations and efficiency, supporting business growth and simplified network management.
Product Highlights
Product Applications Scenarios
Product Features Comparison
|
|
|
|
|
|
| Model | C1-C4510RE-S7+96V+ | C1-WS3650-48TD/K9 | C1000-16P-E-2G-L | EX2300-48MP |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | Juniper |
| Port Configuration | 2 × WS-X4748-RJ45V+E line cards (96 × 10/100/1000BASE-T ports total), PoE+ (IEEE 802.3at) | 48 × 10/100/1000BASE-T, 2 × 10G SFP+ uplinks | 16 × 10/100/1000BASE-T PoE+ (RJ45, IEEE 802.3af/at) 2 × SFP Uplinks (1000BASE-X) |
48 × Multi-Gigabit (10/100/1000/2.5G/5G) RJ45, 6 × 10G SFP+ uplinks |
| Switching Capacity | 928 Gbps | 176 Gbps (non-Multigigabit model) | 36 Gbps | 132 Gbps (unidirectional) / 264 Gbps (bidirectional) |
| Forwarding Rate | 250 Mpps | 104.16 Mpps | 26.78 Mpps (64-byte L3 packets) | 130 Mpps (wire speed) |
| PoE Budget | n/a | n/a | 195W (total) | 750W (IEEE 802.3at) |
| Stacking Capability | n/a | StackWise-160 (up to 9 units) | n/a | Virtual Chassis, up to 4 switches, 80 Gbps interconnect |
Optional Add-ons
| Model Number | Description |
| WS-X4748-RJ45V+E | HKShanhai Group Limited Catalyst 4500E Series 48-Port PoE+ Line Card for high-density endpoint deployments. |
| PWR-C45-1400DC | HKShanhai Group Limited 1400W DC Power Supply for HKShanhai Group Limited 4510 chassis, providing redundancy and power for PoE+ devices. |
| WS-X45-SUP7-E | Supervisor Engine 7-E for HKShanhai Group Limited Catalyst 4500E Series, enabling advanced control and management capability. |
HKShanhai Group Limited C1-C4510RE-S7+96V+ Specification
| Model | C1-C4510RE-S7+96V+ |
| Brand | HKShanhai Group Limited |
| System Overview | HKShanhai Group Limited ONE Software Bundle |
| Chassis | WS-C4510R+E, 10-slot redundant chassis |
| Form Factor | 14RU rack-mountable |
| Supervisor Engine | WS-X45-SUP7-E |
| Switching Capacity | 928 Gbps |
| Forwarding Rate | 250 Mpps |
| Port Configuration | 2 × WS-X4748-RJ45V+E line cards (96 × 10/100/1000BASE-T ports total), PoE+ (IEEE 802.3at) |
| VLAN Support | 4,096 VLANs |
| MAC Address Table | 55,000 entries |
| Routing Capacity | IPv4: 128,000 routes; IPv6: 55,000 routes (hardware-accelerated) |
| Multicast Entries | Layer 2: 16,000; Layer 3: 28,000 |
| DRAM | 4 GB |
| Flash | 4 GB |
| Power Supply | 96V DC (1400W), supports 1+1 redundancy |
| Fan Tray | Hot-swappable, redundant |
| Dimensions (H × W × D) | 24.35 in × 17.31 in × 12.50 in (61.84 cm × 43.97 cm × 31.70 cm) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 10%??0% non-condensing |
| Altitude | -60 m to 3,000 m |
| Supported Protocols | IPv4, IPv6, OSPF, EIGRP, BGP |
| Security Features | ACLs (32,000 entries), Dynamic ARP Inspection, IP Source Guard |
| Management | CLI, SNMP, Web UI, HKShanhai Group Limited Prime |
| Certifications | NEBS Level 3, FCC, CE, UL 60950 |
Get more information
Discover unbeatable prices and fast shipping for the C1-C4510RE-S7+96V+ . Access the detailed C1-C4510RE-S7+96V+ datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at sales@router-switch.com.
