WS-C4500X-40X-ES is one of the Catalyst 4500-X series switches. The Catalyst 4500-X series switch is a fixed aggregation switch that delivers best-in-class scalability, simplified network virtualization, and integrated network services for space-constrained environments in campus networks.
Quick Specs
Figure 1 shows the appearance of WS-C4500X-40X-ES.
Table 1 shows the Quick Specs.
|
Product Code |
WS-C4500X-40X-ES |
|
Product Type |
Layer 3 Switch |
|
Number of Total Expansion Slots |
40 |
|
Expansion Slot Type |
SFP+ |
|
Shared SFP Slot |
No |
|
PoE (RJ-45) Port |
No |
|
Expansion Module (Optional) |
8×10 GE SFP+/SFP – C4KX-NM-8SFP+ |
|
Management Port |
10/100/1000 Base-T |
|
USB Port |
Type A (storage and boot) up-to 4 GB |
|
Dual Power Supply |
Yes |
|
Field Replaceable Fans |
Yes (5 fans) |
|
Fan Redundancy |
No performance impact with single fan failure |
|
System Throughput |
Up to 800 Gbps |
|
Forwarding Entries |
16×10 GE Port Base SKU: IPv4: 64K, IPv6: 32K |
|
Flexible Netflow Entries |
128K |
|
Onboard Memory (SRAM DDR-II) |
4 GB |
|
Port Buffers |
32-MB Shared Memory |
|
CPU |
Dual Core 1.5 GHz |
|
NVRAM |
2 GB |
|
Optional External Memory (SD Card) |
2 GB |
|
System Power Consumption |
330W nominal/400W max ·Power supplies, either AC-input or DC-input, are not included in the basic configuration; they are ordered separately |
|
Airflow |
Back-to-front airflow (fan assemblies and the power supplies are color coded blue) |
|
Mean time between failures (MTBF)Â |
199,720 h |
|
Chassis dimensions |
1.75 x 17.25 x 21 in. (4.4 x 43.8 x 53.3 cm) (H x W x D) |
|
Chassis weight |
·20 lb (9.07 kg) (without power supplies) |
Product Details

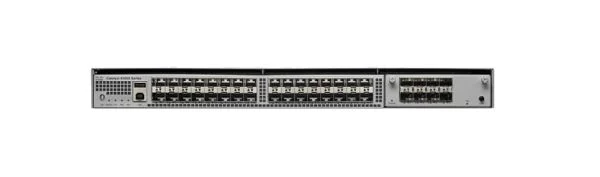

Figure 2 shows the front panel of WS-C4500X-40X-ES.
Note:
â‘ Â LEDs Area
â‘¡Â USB ports (2 ports) Top port is a Type A connector; bottom port is a Type B connector
â‘¢??6 Ă— Ethernet ports
④??-port uplink module slot (Purchased alone)
Figure 3 shows the back panel of WS-C4500X-40X-ES.
Note:
â‘ Â SECURE DIGITAL port
â‘¡Â CONSOLE port
â‘¢??0/100/1000 MGT port
④ Fan assemblies (5 assemblies)
⑤ Chassis ground pad
⑥ Power supply bay (AC-input power supply shown installed)
⑦ Power supply bay (AC-input power supply shown installed)
The Accessories
Table 2 shows the recommended elements for the WS-C4500X-40X-ES.
|
Category |
Model |
Description |
|
AC Power Supplies |
Catalyst 4500X 750W AC front to back cooling 2nd PWR supply |
|
|
Catalyst 4500X 750W AC front to back cooling power supply |
||
|
CARD |
Catalyst 4500X 8 Port 10G Network Module |
|
|
CONSOLE CABLES |
Console Cable 6ft with RJ45 and DB9F |
|
|
1G SFP |
1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
|
|
1000BASE-BX SFP, 1310NM |
||
|
10G SFP |
10GBASE-SR SFP Module |
|
|
10GBASE-CU SFP+ Cable 1 Meter |
Compare to Similar Items
Table 3 shows the comparison of WS-C4500X-40X-ES and WS-C4500X-16SFP+.
|
Model |
WS-C4500X-40X-ES |
|
|
Base System |
Back to Front Airflow |
Front to Back Airflow |
|
MTBF Information |
199,720 h |
209,330 h |
|
Fan assemblies |
5 assemblies (fan assemblies and the power supplies are color coded blue) |
5 assemblies (fan assemblies and the power supplies are color coded burgundy) |
Get more information
Do you have any question about the WS-C4500X-40X-ES
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited WS-C4500X-40X-ES Specification
| Model | WS-C4500X-40X-ES |
| Brand | HKShanhai Group Limited |
| Expansion Module (Optional) | 8×10 GE SFP+/SFP – C4KX-NM-8SFP+ |
| Management Port | 10/100/1000 Base-T |
| USB Port | Type A (storage and boot) up-to 4 GB |
| Dual Power Supply | Yes |
| Field Replaceable Fans | Yes (5 fans) |
| Fan Redundancy | No performance impact with single fan failure |
| System Throughput | Up to 800 Gbps |
| IPv4 Routing in Hardware | Up to 250 Mpps |
| IPv6 Routing in Hardware | Up to 125 Mpps |
| L2 Bridging in Hardware | Up to 250 Mpps |
| Media Access Control (MAC) Entries | 55K |
| Flexible Netflow Entries | 128K |
| Switched Port Analyzer (SPAN) | 8 line rate bidirectional sessions (ingress and egress) |
| Total VLANs | 4094 |
| Total Switched Virtual Interfaces (SVIs) | 4094 |
| IGMP groups | 32K |
| DHCP Snooping Entries | 12K (DHCP snooping bindings) |
| ARP Entries | 47K |
| Spanning Tree Protocol Instances | 10K |
| Jumbo Frame Support | Up to 9216 bytes |
| High Availability Solution | Virtual Switching System (VSS) |
| Number of stackable switches in VSS | Up to 2 |
| VSS Throughput | Up to 1.6 Tbps |
| Virtual Switch Link | 1GE or 10GE |
| Max number of Virtual Switch Links | 8 |
| In-Service Software Upgrade | Across the switches |
| Nonstop Forwarding with Stateful Switchover | Yes |
| Onboard Memory (SRAM DDR-II) | 4 GB |
| Port Buffers | 32-MB Shared Memory |
| CPU | Dual Core 1.5 GHz |
| NVRAM | 2 GB |
| Optional External Memory (SD Card) | 2 GB |
| Port Queues | 8 Queues/Port |
| CPU Queues | 64 |
| QoS Entries | 128K (64K ingress and 64K in egress) Shared with ACL |
| Aggregate Rate-Limiting | Ingress port or VLAN and egress VLAN or Layer 3 port |
| Rate-Limiting Level Types | Committed Information Rate (CIR), Peak Information Rate (PIR) |
| Aggregate Traffic Rate-Limiting Policers | 16K |
| Flow-Based Rate-Limiting Method | Supported using flow-records in the classification criteria and policing action |
| QoS Policy Enforcement | Per Port or Per Vlan or Per Port, Per VLAN Granularity |
| Class of Service (CoS) | Yes |
| Differentiated Services Code Point (DSCP) | Yes |
| Port Security | Yes |
| IEEE 802.1x and 802.1x Extensions | Yes |
| VLAN, Router, and Port ACLs | Yes |
| Security ACL Entries | 128K (64K ingress and 64K in egress) Shared with QoS |
| Unicast Reverse Path Forwarding (uRPF) Check in Hardware | Yes |
| CPU Rate Limiters (DoS Protection) | Yes |
| Private VLANs | Yes |
| Micro Flow Policer | Yes. Supported using flow records in the class-map |
| CPU HW Rate Limiters | Supported in hardware control-plane policing (CoPP) |
| Control Plane Policing (CoPP) for Multicast | Yes |
| ACL Labels | Yes |
| Port ACL | Yes |
| Traffic Storm Control | Yes |
| VRF-Lite Scalability | 64 |
| Easy Virtual Network (EVN) Scalability | 32 |
| Operating Temperature | 0°C to 40°C (RH to 90%) |
| Storage Temperature | -40°C to 70°C (RH 93%) |
| Operating Altitude | 60m below sea level to 3000m above sea level |
| Relative Humidity | Nonoperating Humidity: 95% RH |
| Acoustic Noise | 65 dBA maximum |
| RoHS | Reduction of Hazardous Substances (RoHS) 5 |
| AC Power Max Rating | 750W |
