WS-C3650-48TS-L, HKShanhai Group Limited Catalyst 3650 Switch, 48xGE+4x1G Uplink/LAN Base

SKU: 3JTAISHA67KT849V166NUQK4GXTA8EMP8JA4 Category: Cisco Catalyst 3650 Switches

HKShanhai Group Limited Catalyst WS-C3650-48TS-L is next generation of enterprise-level stackable access layer switch and integrates with 48 Gigabit Ethernet ports and 4 x 1G SFP uplink ports in LAN base feature set.

Quick Specs

Figure 1 shows the appearance of WS-C3650-48TS-L.

Table 1 shows the Quick Specs.

Product Code	WS-C3650-48TS-L
Enclosure Type	Rack-mountable – 1U
Feature Set	LAN base
Uplink Interfaces	4 x 1G SFP uplinks
Ports	48 x 10/100/1000 Ethernet ports
Maximum stacking number	9
Stack bandwidth	160Gbps
Forwarding Performance	77.37Mpps
Switching Capacity	176Gbps
RAM	4 GB
Flash Memory	2 GB
Dimensions	44.5 x 44.8 x 4.4 cm
Package Weight	17.49 Kg

Product Details

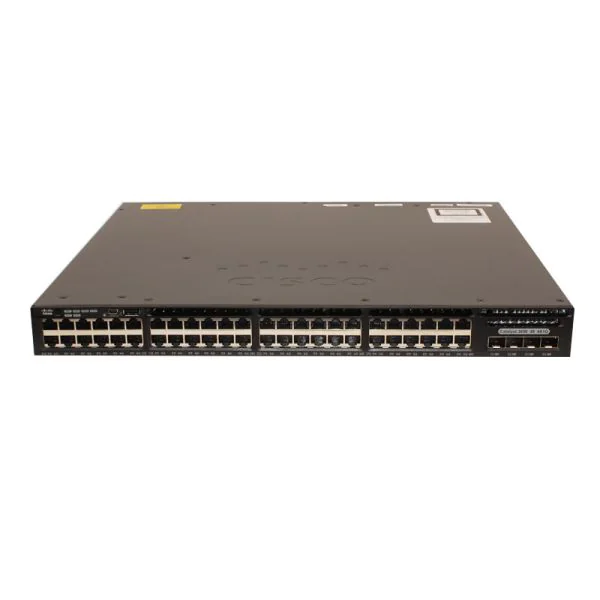

Figure 2 shows the front panel of WS-C3650-48TS-L.

Note:

① Mode button

② Status LEDs

③ USB mini-Type B (console) port

④ USB Type A storage port

⑤??8 x 10/100/1000 Ports

⑥ Uplink ports

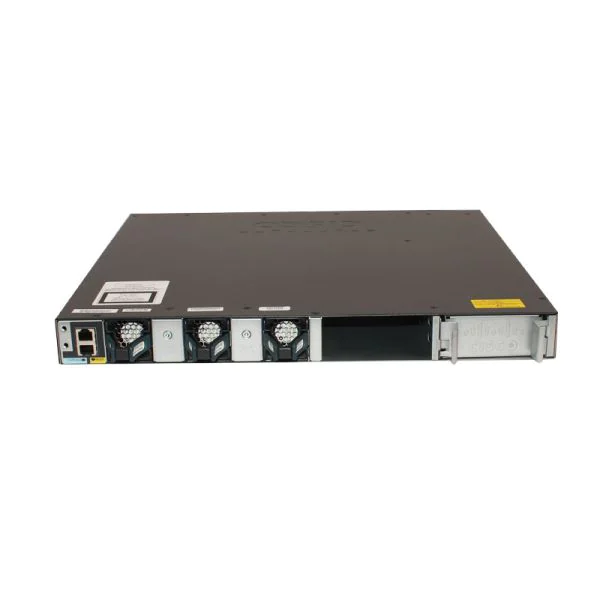

Figure 3 shows the back panel of WS-C3650-48TS-L.

Note:

① Ground connector

② CONSOLE (RJ-45 console port)

③ MGMT (RJ-45 10/100/1000 management port)

④ Fan module

⑤ Power supply modules slots

⑥ Stacking modules slots

The StackWise-160

The HKShanhai Group Limited Catalyst 3650 supports an optional stacking module that is based on the HKShanhai Group Limited StackWise-160 technology which allows stacking up to 9 switches. StackWise-160 creates a highly resilient single unified system of up to 9 switches, providing simplified management with a single IP address. For stacking purpose, stack module is required and LAN base feature set can only stack with other 3650 series in LAN feature set. LAN base feature supports 255 VLANs in max with inactive Flexible Netflow features and wireless controller functionality. To activate wireless controller and Flexiable Netflow features, update to IP base image is necessary.

The Modules, Licenses and Accessories

Table 2 shows some recommended modules, licenses and accessories of this switch.

Models	Description
C3650-STACK-KIT	HKShanhai Group Limited Catalyst 3650 Stack Module Spare
L-C3650-48-L-S	C3650-48 LAN Base to IP Base Electronic RTU License
L-C3650-48-L-E=	C3650-48 LAN Base to IP Services Electronic RTU License
PWR-C2-250WAC=	250W AC Config 2 Secondary Power Supply
CAB-CONSOLE-RJ45	Console Cable 6ft with RJ45 and DB9F
CAB-CONSOLE-USB	Console Cable 6 ft with USB Type A and mini-B

Compare to Similar Items

Table 3 shows the comparison between WS-C3650-48TD-L and WS-C3650-48TS-L.

Models	WS-C3650-48TD-L	WS-C3650-48TS-L
Feature Set	LAN Base	LAN Base
Uplink Interfaces	2 x 10G SFP+ OR 4 x 1G SFP uplinks	4 x 1G SFP
Ports	48 x 10/100/1000 Ethernet ports	48 x 10/100/1000 Ethernet ports
StackWise-160	Optional	Optional

Get more information

Do you have any question about the HKShanhai Group Limited C3650-48TS-L switch?

HKShanhai Group Limited WS-C3650-48TS-L Specification

WS-C3650-48TS-L Specifications
Switching capacity	176 Gbps on 48-port models (non-multigigabit models) 92 Gbps on 24-port models (non-multigigabit models) 254 Gbps on 24-port Multigigabit models with 2x10G uplink 272 Gbps on 24-port Multigigabit models with 4x10G uplink 392 Gbps on 48-port Multigigabit models with 4x10G uplink 472 Gbps on 48-port Multigigabit models with 8x10G uplink 472 Gbps on 48-port Multigigabit models with 2x40G uplink
Stacking bandwidth	160 Gbps
Total number of MAC addresses	32,000
Total number of IPv4 routes (ARP plus learned routes)	24,000
FNF entries	48,000 flow on 48-port models 24,000 flows on 24-port models
DRAM	4 GB
Flash	2 GB (non-Multigigabit models) and 4GB (Multigigabit models)
VLAN IDs	4,094
Total switched virtual interfaces (SVIs)	1,000
Jumbo frame	9198 bytes
Total routed ports per 3650 stack	208
Number of access points per switch/stack	25
Number of wireless clients per switch/stack	1000
Total number of WLANs per switch	64
Wireless bandwidth per switch	Up to 40 Gbps on 48-port models Up to 20 Gbps on 24-port models
Supported Aironet access point series	3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040
Forwarding Rate	77.37 Mpps
Dimensions (H x W x D)	1.73 x 17.5 x 17.625 Inches
Weight	15.90 Pounds
MTBF Hours	527,580
