HKShanhai Group Limited Catalyst WS-C3650-24PWS-S is the next generation enterprise-level standalone with stackable option switch with IP Base image. WS-C3650-24PWS-S has 24 Gigabit Ethernet POE+ ports with 4 fixed 1G SFP uplink ports and provides 5 access point licenses supporting up to 200 wireless connections
Quick Specs

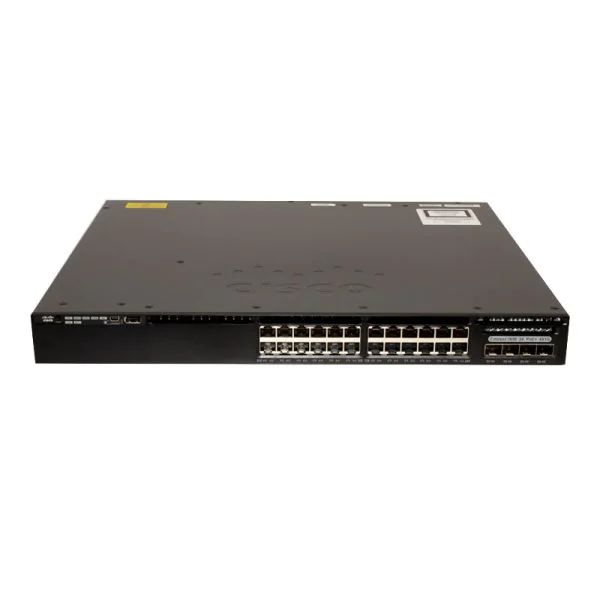

Figure 1 shows the appearance of WS-C3650-24PWS-S.
Table 1 shows the Quick Specs.
|
Product Code |
WS-C3650-24PWS-S |
|
Bundle |
w/5 AP licenses |
|
Enclosure Type |
Rack-mountable – 1U |
|
Feature Set |
IP Base |
|
Uplink Interfaces |
4 x 1G SFP |
|
Ports |
24 x 10/100/1000 (POE+) |
|
Available PoE Power |
390w |
|
Maximum stacking number |
9 |
|
Stack bandwidth |
88Gbps |
|
Forwarding Performance |
41.66Mpps |
|
Switching Capacity |
88Gbps |
|
RAM |
4 GB |
|
Flash Memory |
2 GB |
|
Dimensions |
44.5 cm x 44.5 cm x 4.4 cm |
|
Package Weight |
17.49 Kg |
Product Details
Figure 2 shows the front panel of WS-C3650-24PWS-S.
Note:
|
??/p> |
Mode button |
??/p> |
USB Type A storage port |
|
??/p> |
Status LEDs |
??/p> |
24 x 10/100/1000 POE+ Ethernet Ports |
|
??/p> |
USB mini-Type B (console) port |
??/p> |
4 x 1G SFP Uplink ports |
Figure 3 shows the back panel of the HKShanhai Group Limited C3650-24PWS-S switch.
Note??/p>
|
??/p> |
Ground connector |
|
??/p> |
CONSOLE (RJ-45 console port) |
|
??/p> |
MGMT (RJ-45 10/100/1000 management port) |
|
??/p> |
Fan module |
|
??/p> |
Power supply modules (AC power supply shown) |
|
??/p> |
Power supply modules |
|
??/p> |
StackWise port connector |
The Modules, Licenses and Accessories
Table 2 shows some modules, licenses and accessories of WS-C3650-24PWS-S.
|
Models |
Description |
|
HKShanhai Group Limited Catalyst 3650 Stack Module Spare |
|
|
C3650-24 IP Base to IP Services Electronic RTU License |
|
|
1025W AC Config 2 Secondary Power Supply |
|
|
640W DC Config 2 Secondary Power Supply |
|
|
Console Cable 6ft with RJ45 and DB9F |
|
|
Console Cable 6 ft with USB Type A and mini-B |
Compare to Similar Items
Table 3 shows the comparison between WS-C3650-24PWS-S and WS-C3650-24PS-S.
|
Models |
WS-C3650-24PWS-S |
|
|
Feature Set |
IP Base |
IP Base |
|
Uplink Interfaces |
4 x 1G SFP uplinks |
4 x 1G SFP uplinks |
|
Ports |
24 x 10/100/1000 POE+ Ethernet ports |
24 x 10/100/1000 POE+ Ethernet ports |
|
Available POE Power |
390W |
390W |
|
Bundle |
5 Access Point Licenses |
None |
Get more information
Do you have any question about the HKShanhai Group Limited C3650-24PWS-S switch?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited WS-C3650-24PWS-S Specification
WS-C3650-24PWS-S Specifications |
|
|
Switching capacity |
176 Gbps on 48-port models (non-multigigabit models) 92 Gbps on 24-port models (non-multigigabit models) 254 Gbps on 24-port Multigigabit models with 2x10G uplink 272 Gbps on 24-port Multigigabit models with 4x10G uplink 392 Gbps on 48-port Multigigabit models with 4x10G uplink 472 Gbps on 48-port Multigigabit models with 8x10G uplink 472 Gbps on 48-port Multigigabit models with 2x40G uplink |
|
Stacking bandwidth |
160 Gbps |
|
Total number of MAC addresses |
32,000 |
|
Total number of IPv4 routes (ARP plus learned routes) |
24,000 |
|
FNF entries |
48,000 flow on 48-port models 24,000 flows on 24-port models |
|
DRAM |
4 GB |
|
Flash |
2 GB (non-Multigigabit models) and 4GB (Multigigabit models) |
|
VLAN IDs |
4,094 |
|
Total switched virtual interfaces (SVIs) |
1,000 |
|
Jumbo frame |
9198 bytes |
|
Total routed ports per 3650 stack |
208 |
|
Number of access points per switch/stack |
25 |
|
Number of wireless clients per switch/stack |
1000 |
|
Total number of WLANs per switch |
64 |
|
Wireless bandwidth per switch |
Up to 40 Gbps on 48-port models Up to 20 Gbps on 24-port models |
|
Supported Aironet access point series |
3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040 |
|
Forwarding Rate |
41.66 Mpps |
|
Dimensions (H x W x D) |
1.73 x 17.5 x 17.625 Inches |
|
Weight |
16.00 Pounds |
|
MTBF Hours |
528,280 |
