WS-C3650-48TS-E integrates forty-eight Gigabit Ethernet ports and four fixed 1G SFP uplink ports in IP service feature set that enables advanced layer 3 routing performance with superior QoS capabilities.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
WS-C3650-48TS-E |
|
Enclosure Type |
Rack-mountable – 1U |
|
Feature Set |
IP Service |
|
Uplink Interfaces |
4 x 1G SFP |
|
Ports |
48 x 10/100/1000 Ethernet ports |
|
Maximum stacking number |
9 |
|
Stack bandwidth |
160 Gpbs |
|
Forwarding Performance |
77.37 Mpps |
|
Switching Capacity |
176 Gbps |
|
RAM |
4 G |
|
Flash Memory |
2G |
|
Number of AP per switch/stack |
50 |
|
Number of wireless clients per switch/stack |
1000 |
|
Dimensions |
44.5 cm x 44.8 cm x 4.4 cm |
Product Details
Figure 1 shows the front panel of WS-C3650-48TS-E.
Note:
|
??/p> |
Status LEDs |
|
??/p> |
USB mini-Type B (console) port |
|
??/p> |
USB Type A storage port |
|
??/p> |
48 x 10/100/1000 Ports |
|
??/p> |
Uplink ports |
Figure 2 shows the back panel of WS-C3650-48TS-E.
Note??/p>
|
??/p> |
Ground connector |
|
??/p> |
CONSOLE (RJ-45 console port) |
|
??/p> |
MGMT (RJ-45 10/100/1000 management port) |
|
??/p> |
Fan module |
|
??/p> |
Power supply modules |
|
??/p> |
Stacking modules |

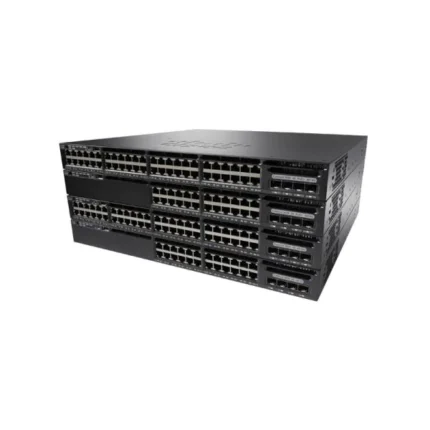

Figure 3 shows the StackWise-160 Kit.
For stacking purpose, stack modules are required; in addition, IP service feature set can only stack with other 3650 series in IP service feature set, in order to stack with LAN/IP base feature set, IP service feature set need to configure in LAN/IP base feature set (Stack module purchase separately).?
The Modules, Licenses and Accessories
Table 2 shows some modules, licenses and accessories of this switch.
|
Models |
Description |
|
HKShanhai Group Limited Catalyst 3650 Stack Module Spare |
|
|
250W AC Config 2 Secondary Power Supply |
|
|
Console Cable 6ft with RJ45 and DB9F |
|
|
Console Cable 6 ft with USB Type A and mini-B |
Compare to Similar Items
Table 3 shows the comparison between WS-C3650-48TS-S and WS-C3650-48TS-E.
|
Models |
WS-C3650-48TS-E |
|
|
Feature Set |
IP Base |
IP Service |
|
Uplink Interfaces |
4 x 1G SFP uplinks |
4 x 1G SFP uplinks |
|
Ports |
48 x 10/100/1000 Ehternet ports |
48 x 10/100/1000 Ehternet ports |
Get more information
Do you have any question about the HKShanhai Group Limited C3650-48TS-E switch
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited WS-C3650-48TS-E Specification
WS-C3650-48TS-E Specification |
|
|
Enclosure type |
Rack-mountable – 1U |
|
Ports |
48 x 10/100/1000 + 4 x 1G SFP |
|
Network management Interface |
· Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling |
|
Available PoE Power |
None |
|
Switching Capacity |
176Gbps |
|
Maximum stacking number |
9 |
|
Stack Bandwidth |
160Gbps |
|
Forwarding Performance |
77.37Mpps |
|
FNF entries |
48000 |
|
Maximum VLANs IDs |
4,094 |
|
MAC Address Table Size |
32K |
|
CPU |
Multicore CPU |
|
RAM |
4 GÂ |
|
Flash Memory |
2 G |
|
Wireless |
|
|
Number of AP per switch/stack |
50 |
|
Number of wireless clients per switch/stack |
1000 |
|
Total number of WLANs per switch |
64 |
|
Wireless bandwidth per switch |
up to 40Gbps |
|
Supported Aironet AP series |
3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040 |
|
Expansion / Connectivity |
|
|
Console ports |
USB (Type-B), Ethernet (RJ-45) |
|
Expansion Slot(s) |
 power redundant slot |
|
Accessory & Rack Moubt Kits |
· ACC-KIT-T1: Accessory kit |
|
Stacking module & cable |
· C3650-STACK-KIT: Stack Module |
|
Power supply |
PWR-C2-1025WAC |
|
Power Device |
Power supply – redundant – plug-in module |
|
Power Redundancy |
optional |
|
Voltage range (Auto) |
100V-240V |
|
Power Consumption of standalone (in Watts) |
86. 4 (max) |
|
Miscellaneous |
|
|
Width |
17.5 Inches (44.5 cm) |
|
Depth |
17.625 Inches (44.8 cm) |
|
Height |
1.73 Inches (4.4 cm) |
|
Shipping Weight |
17.49 Kg |
|
Rack Mounting Kit |
optional |
|
 MTBF in hours |
527,580 |
|
Compliant Standards |
· IEEE 802.1D Spanning Tree Protoco |
|
System software / license |
|
|
System software |
IOS IP Service |
|
EnergyWise license |
ENERGY-MGMT, ENERGY-MGT-100-K9 |
|
Access Point Licenses |
· L-LIC-CT3650-UPG: Primary upgrade license SKU for HKShanhai Group Limited 3650 wireless controller (e-delivery) |
|
Features |
· EEM · RPS Support  · IP service-level agreements (SLAs)  · Advanced IP unicast routing protocols · Jumbo Frames · VLANS · Voice Vlan · VTPv2 · CDPv2 · LLDP · 802.3ad LACP and PAgP · PVST/PVST+ · 802.1W/802.1S · Port Fast/Uplink Fast  · Dynamic Trunking Protocol (DTP) · port CoS Trust and Override · Trusted Boundary · ACL Classification · ingress Policing · Auto QoS · Per VLAN policies · 802.1p queues · Scheduling · Priority Queuing · Configure CoS Priority Queues · Configure CoS Priority Queues · Configure Queue Weights · Configure Buffers and Thresholds · Class & Policy Maps · Modify CoS and DSCP Mapping · Weighted Tail Drop · IGMPv1,v2,v3 and MLDv1, v2 · DHCP server · DSCP transparency · HSRP, VRRP, BLGP · RIPv1, v2 EIGRP, PIM OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4  · VRF-lite  · PIM-SM/DM, PIM sparse-dense mode, SSM · Flexible Netflow |
|
Advanced Network security |
· Port security · DHCP snooping · Dynamic ARP inspection (DAI) · IP source guard · The Unicast Reverse Path Forwarding (uRPF) |
|
Management |
· BRIDGE-MIB · CISCO-AUTH-FRAMEWORK-MIB · CISCO-VTP-MIB · EtherLike-MIB · HC-RMON-MIB · IEEE8021-PAE-MIB · IEEE8023-LAG-MIB |
|
Technical Support and Services |
· HKShanhai Group Limited SMARTnet Service · HKShanhai Group Limited Smart Foundation Service · HKShanhai Group Limited SP Base Service · HKShanhai Group Limited Focused Technical Support Services |
|
Environmental Ranges |
|
|
With AC power supply |
|
|
Operating temperature up to 5000 ft (1500 m) |
23ºF to 113ºF (-5ºC to +45ºC) |
|
Operating temperature up to 10,000 ft (3000 m) |
23ºF to 104ºF (-5ºC to +40ºC) |
|
Short-term exception at sealevel with single fan failure |
23ºF to 113ºF (-5ºC to +45ºC) |
|
Short-term exception up to 5000 feet (1500 m) |
23ºF to 122ºF (-5ºC to 50ºC) |
|
Short-term exception up to 10,000 feet (3000 m) |
23ºF to 113ºF (-5ºC to 45ºC) |
|
With DC power supply |
|
|
Operating temperature up to 6000 ft (1800 m) |
23ºF to 113ºF (-5ºC to +45ºC) |
|
Operating temperature up to 10,000 ft (3000 m) |
23ºF to 104ºF (-5ºC to +40ºC) |
|
Operating temperature up to 13,000 ft (4000m) |
23ºF to 95ºF (-5ºC to 35ºC) |
|
Short-term exception up to 6,000 feet (1800 m) |
23ºF to 131ºF (-5ºC to +55ºC) |
|
Short-term exception up to 10,000 feet (3000 m) |
23ºF to 122ºF (-5ºC to +50ºC) |
|
Short-term exception up to 13,000 feet (4000 m) |
23ºF to 113ºF (-5ºC to +45ºC) |
|
Short-term exception at sealevel with single fan failure |
23ºF to 113ºF (-5ºC to +45º) |
|
Storage environment |
 -40ºF to 160ºF (-40ºC to 70ºC) |
|
Operating altitude |
Up to 16,400 Feet (Up to 5000m) |
|
Storage altitude |
Up to 16,400 Feet (Up to 5000m) |
|
Operating relative humidity |
5% to 96% noncondensing |
|
Storage relative humidity |
5% to 96% noncondensing |
|
Short-term exception at sealevel with single fan failure |
23ºF to 113ºF |
|
Storage environment |
 -40ºF to 160ºF |
