HKShanhai Group Limited Catalyst WS-C3650-48TD-L is next generation of enterprise-level stackable access layer switch and integrates with 48 Gigabit Ethernet ports and 2 x 10G SFP+ & 2 x 1G SFP uplink ports in LAN base feature set.
Quick Specs
Figure 1 shows the appearance of WS-C3650-48TD-L.
Table 1 shows the Quick Specs.
|
Product Code |
WS-C3650-48TD-L |
|
Enclosure Type |
Rack-mountable – 1U |
|
Feature Set |
LAN base |
|
Uplink Interfaces |
2 x 10G SFP+ & 2 x 1G SFP |
|
Ports |
48 x 10/100/1000 Ethernet ports |
|
Maximum stacking number |
9 |
|
Stack bandwidth |
160Gbps |
|
Forwarding Performance |
104.16Mpps |
|
Switching Capacity |
176Gbps |
|
RAM |
4 GB |
|
Flash Memory |
2 GB |
|
Number of AP per switch/stack |
50 |
|
Number of wireless clients per switch/stack |
1000 |
|
Dimensions |
44.5 x 44.8 x 4.4 cm |
|
Package Weight |
17.49 Kg |
Product Details

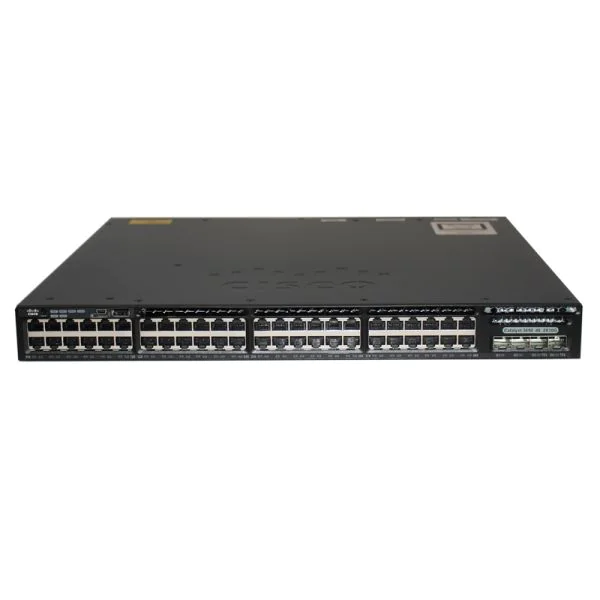

Figure 2 shows the front panel of WS-C3650-48TD-L.
Note:
â‘ Â Status LEDs
â‘¡Â USB mini-Type B (console) port
③ USB Type A storage port
â‘£??8 x 10/100/1000 Ports
⑤ Uplink ports
Figure 3 shows the back panel of WS-C3650-48TD-L.
Note??/p>
â‘ Â Ground connector
â‘¡Â CONSOLE (RJ-45 console port)
③ MGMT (RJ-45 10/100/1000 management port)
④ Fan module
⑤ Power supply modules
⑥ Stacking modules
Table 2 shows some recommended modules, licenses and accessories of this switch.
|
Models |
Description |
|
HKShanhai Group Limited Catalyst 3650 Stack Module Spare |
|
|
C3650-48 LAN Base to IP Base Electronic RTU License |
|
|
C3650-48 LAN Base to IP Services Electronic RTU License |
|
|
1025W AC Config 2 Secondary Power Supply |
|
|
Console Cable 6ft with RJ45 and DB9F |
|
|
Console Cable 6 ft with USB Type A and mini-B |
Compare to Similar Items
Table 3 shows the comparison between WS-C3650-48TD-L and WS-C3650-48TS-L.
|
Models |
WS-C3650-48TD-L |
|
|
Feature Set |
LAN Base |
LAN Base |
|
Uplink Interfaces |
2 x 10G SFP+ & 2 x 1G SFP |
4 x 1G SFP |
|
Ports |
48 x 10/100/1000 Ethernet ports |
48 x 10/100/1000 Ethernet ports |
|
StackWise-160 |
Optional |
Optional |
Get more information
Do you have any question about the HKShanhai Group Limited Catalyst 3650-48TD-L switch?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited WS-C3650-48TD-L Specification
WS-C3650-48TD-L Specifications |
|
|
Switching capacity |
176 Gbps on 48-port models (non-multigigabit models) 92 Gbps on 24-port models (non-multigigabit models) 254 Gbps on 24-port Multigigabit models with 2x10G uplink 272 Gbps on 24-port Multigigabit models with 4x10G uplink 392 Gbps on 48-port Multigigabit models with 4x10G uplink 472 Gbps on 48-port Multigigabit models with 8x10G uplink 472 Gbps on 48-port Multigigabit models with 2x40G uplink |
|
Stacking bandwidth |
160 Gbps |
|
Total number of MAC addresses |
32,000 |
|
Total number of IPv4 routes (ARP plus learned routes) |
24,000 |
|
FNF entries |
48,000 flow on 48-port models 24,000 flows on 24-port models |
|
DRAM |
4 GB |
|
Flash |
2 GB (non-Multigigabit models) and 4GB (Multigigabit models) |
|
VLAN IDs |
4,094 |
|
Total switched virtual interfaces (SVIs) |
1,000 |
|
Jumbo frame |
9198 bytes |
|
Total routed ports per 3650 stack |
208 |
|
Number of access points per switch/stack |
25 |
|
Number of wireless clients per switch/stack |
1000 |
|
Total number of WLANs per switch |
64 |
|
Wireless bandwidth per switch |
Up to 40 Gbps on 48-port models Up to 20 Gbps on 24-port models |
|
Supported Aironet access point series |
3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040 |
|
Forwarding Rate |
104.16 Mpps |
|
Dimensions (H x W x D) |
1.73 x 17.5 x 17.625 Inches |
|
Weight |
15.90 Pounds |
|
MTBF Hours |
527,580 |
