The HKShanhai Group Limited Catalyst 3650 Series Switch, with HKShanhai Group Limited StackWise-160 Technology, can stack 9 switches and support up to 160 Gpbs stack bandwidth. The WS-C3650-24TS-E integrates with 24 Ethernet ports and 4 x 1G SFP uplink ports in IP Service feature set.
Quick Specs

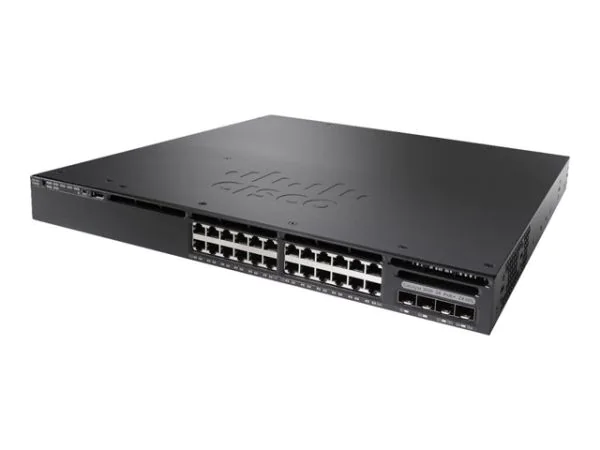

Figure 1 shows the appearance of the HKShanhai Group Limited C3650-24TS-E switch.
Table 1 shows the Quick Specs.
|
Product Code |
WS-C3650-24TS-E |
|
Enclosure Type |
Rack-mountable – 1U |
|
Feature Set |
IP service |
|
Uplink Interfaces |
4 x 1G SFP |
|
Ports |
24 x 10/100/1000 Ethernet ports |
|
Maximum stacking number |
9 |
|
Stack bandwidth |
160 Gpbs |
|
Forwarding Bandwidth |
41.66Mpps |
|
Switching Capacity |
88 Gbps |
|
RAM |
4 G |
|
Flash Memory |
2G |
|
Number of AP per switch/stack |
50 |
|
Number of wireless clients per switch/stack |
1000 |
|
Dimensions |
44.5 cm x 44.5 cm x 4.4 cm |
|
Package Weight |
17.49 Kg |
Product Details
Figure 2 shows the front panel of the HKShanhai Group Limited C3650-24TS-E switch.
Note??/p>
|
??/p> |
Mode button |
??/p> |
USB Type A storage port |
|
??/p> |
Status LEDs |
??/p> |
24 x 10/100/1000 Ports |
|
??/p> |
USB mini-Type B (console) port |
??/p> |
Uplink ports |
Figure 3 shows the back panel of the HKShanhai Group Limited C3650-24TS-E switch.
Note??/p>
|
??/p> |
Ground connector |
|
??/p> |
CONSOLE (RJ-45 console port) |
|
??/p> |
MGMT (RJ-45 10/100/1000 management port) |
|
??/p> |
Fan module |
|
??/p> |
Power supply modules |
Figure 4 shows the StackWise-160 Kit.
IP service feature set can only stack with other 3650 series in IP service feature set, in order to stack with LAN/IP base feature set, IP service feature set need to configure in LAN/IP base feature set (Stack module purchase separately).
The Modules, Licenses and Accessories
Table 2 shows some modules, licenses and accessories of this switch.
|
Models |
Description |
|
HKShanhai Group Limited Catalyst 3650 Stack Module Spare |
|
|
250W AC Config 2 Secondary Power Supply |
|
|
Console Cable 6ft with RJ45 and DB9F |
|
|
Console Cable 6 ft with USB Type A and mini-B |
Compare to Similar Items
Table 3 shows the comparison between WS-C3650-24TS-E and WS-C3650-24TS-S.
|
Models |
WS-C3650-24TS-E |
|
|
Feature Set |
IP Services |
IP Base |
|
Uplink Interfaces |
4 x 1G SFP uplink ports |
4 x 1G SFP uplink ports |
|
Ports |
24 x 10/100/1000 Ethernet ports |
24 x 10/100/1000 Ethernet ports |
Get more information
Do you have any question about the HKShanhai Group Limited C3650-24TS-E switch
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited WS-C3650-24TS-E Specification
WS-C3650-24TS-E Specifications |
|
|
Switching capacity |
176 Gbps on 48-port models (non-multigigabit models) 92 Gbps on 24-port models (non-multigigabit models) 254 Gbps on 24-port Multigigabit models with 2x10G uplink 272 Gbps on 24-port Multigigabit models with 4x10G uplink 392 Gbps on 48-port Multigigabit models with 4x10G uplink 472 Gbps on 48-port Multigigabit models with 8x10G uplink 472 Gbps on 48-port Multigigabit models with 2x40G uplink |
|
Stacking bandwidth |
160 Gbps |
|
Total number of MAC addresses |
32,000 |
|
Total number of IPv4 routes (ARP plus learned routes) |
24,000 |
|
FNF entries |
48,000 flow on 48-port models 24,000 flows on 24-port models |
|
DRAM |
4 GB |
|
Flash |
2 GB (non-Multigigabit models) and 4GB (Multigigabit models) |
|
VLAN IDs |
4,094 |
|
Total switched virtual interfaces (SVIs) |
1,000 |
|
Jumbo frame |
9198 bytes |
|
Total routed ports per 3650 stack |
208 |
|
Number of access points per switch/stack |
25 |
|
Number of wireless clients per switch/stack |
1000 |
|
Total number of WLANs per switch |
64 |
|
Wireless bandwidth per switch |
Up to 40 Gbps on 48-port models Up to 20 Gbps on 24-port models |
|
Supported Aironet access point series |
3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040 |
|
Forwarding Rate |
77.37 Mpps |
|
Dimensions (H x W x D) |
1.73 x 17.5 x 17.625 Inches |
|
Weight |
16.75 |
|
MTBF Hours |
383,760 |
