HKShanhai Group Limited Catalyst 2960X Series 48 ports LAN Lite switch is comprised of 48 x Ethernet 10/100/1000 ports and 2 x 1G SFP uplink interfaces. LAN Lite image functions basic needs for layer 2 switching and does not support stacking.
Quick Specs

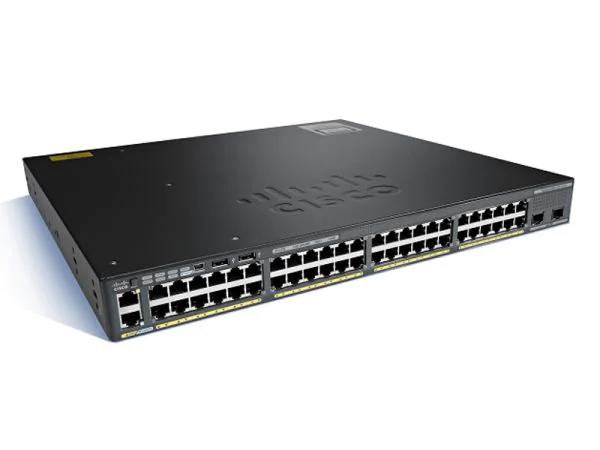

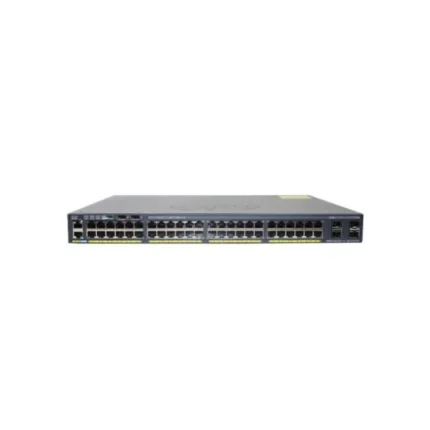

Figure 1 shows the appearance of WS-C2960X-48TS-LL.
Table 1 shows the Quick Specs of WS-C2960X-48TS-LL.
|
Product Code |
WS-C2960X-48TS-LL |
|
Enclosure Type |
Rack-mountable – 1U |
|
Feature Set |
LAN Lite |
|
Uplink Interfaces |
2 x 1G SFP |
|
Ports |
48 x Ethernet 10/100/1000 Gigabit ports |
|
Forwarding Bandwidth |
50Gbps |
|
Switching Bandwidth |
100Gbps |
|
RAM |
256MB |
|
Flash Memory |
64MB |
|
Dimensions |
44.5 cm x 27.9 cm x 4.5 cm |
|
Package Weight |
9.19 Kg |
Product Details
Figure 2 shows the front panel of WS-C2960X-48TS-LL.
Note:
| ??/td> | Ethernet management port | ??/td> | SFP module ports |
| ??/td> | Mode button | ??/td> | 48 x 10/100/1000 ports |
| ??/td> | Switch LEDs | ??/td> | CONSOLE LED |
| ??/td> | USB mini-Type B (console) port | ??/td> | MGMT LED |
| ??/td> | USB Type A ports | ⑩??/td> | RJ-45 console port |
·The Switch LEDs include SYST, STAT, SPEED, RPS, MAST, and STACK LEDs.
Figure 3 shows the back panel of WS-C2960X-48TS-LL.
Note:
| ??/td> | FlexStack-Plus module slot and cover | ??/td> | RPS Connector |
| ??/td> | Fan Exhaust | ??/td> | AC power connector |
The Accessories
Table 2 shows some accessories of WS-C2960X-48TS-LL.
|
Models |
Description |
|
HKShanhai Group Limited GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM |
|
|
1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
|
|
Console Cable 6ft with RJ45 and DB9F |
|
|
Console Cable 6 ft with USB Type A and mini-B |
Get more information
Do you have any question about the WS-C2960X-48TS-LL?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited WS-C2960X-48TS-LL Specification
WS-C2960X-48TS-LL Specification |
|
|
Enclosure type |
Rack-mountable – 1U |
|
Ports |
48 x 10/100/1000 + 2 x 1G SFP Ports |
|
Network management Interface |
10/100 Mbps Ethernet (RJ-45) |
|
Available PoE Power |
None PoE |
|
Forwarding bandwidth(Gbps) |
50Gbps |
|
Maximum stacking number |
None |
|
Stack Bandwidth |
None |
|
Forwarding Performance |
104.2Mpps |
|
Switching bandwidth |
100Gbps |
|
Maximum active VLANs |
64 |
|
MAC Address Table Size |
16K (default) |
|
CPU |
APM86392 600MHz dual core |
|
RAM |
256 MBÂ |
|
Flash Memory |
64 MBÂ |
|
Status Indicators |
Per-port status:Â Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, and link speed |
|
Expansion / Connectivity |
|
|
Console ports |
USB (Type-B), Ethernet (RJ-45) |
|
Stacking cable |
None |
|
Power Redundancy |
Option (PWR-RPS2300) |
|
Voltage range (Auto) |
110V-240V |
|
Power Consumption Operational |
0.46KVA |
|
Miscellaneous |
|
|
Width |
17.5 Inches (44.5 cm) |
|
Depth |
11 Inches (27.9 cm) |
|
Height |
1.75 Inches (4.5 cm) |
|
Weight |
8.9 lb (4.0 Kg) |
|
Package Weight |
20.26 lb (9.19 Kg) |
|
Rack Mounting Kit |
optional |
|
 MTBF in hours |
476,560 |
|
Compliant Standards |
 IEEE 802.1D Spanning Tree Protocol  IEEE 802.3 10BASE-T |
|
System software / license |
|
|
System software |
IOS LAN Lite |
|
license |
NERGY-MGT-100-K9, EW-DO-100-DE |
|
features |
Jumbo Frames VLANS Voice Vlan VTPv2 CDPv2 LLDP 802.3ad LACP PVST/PVST+ 802.1W/802.1S Port Fast/Uplink Fast port CoS Trust and Override Scheduling Priority Queuing Configure CoS Priority Queues Weighted Tail Drop DSCP transparency |
|
Network security |
SSH, SSL and SCP RADIUS and TACACS+ SNMPv3 crypto 802.1x 802.1x Accounting / MIB 802.1x w/ port security 802.1x w/Voice VLAN 802.1x Guest VLAN 802.1x VLAN assignment 802.1x MAC-Auth Bypass BPDU/Root Guard Port Security Private VALN Edge Storm Control Block unknown unicast and multicast IGMP Snooping IGMP Filter/Throttle |
|
Management and Troubleshooting |
Auto-MDOX TDR UDLD IP SLA Responder layer 2 / IP Traceroute SPAN RSPAN Express Setup Device Manager HKShanhai Group Limited Network Assistant Smartports + Advisor Troubleshooting Advisor Drag-and-drop HKShanhai Group Limited IOS Upgrade IP Address DHCP Autoinstall with saved configuration Configuration Replace DHCP Auto Image Upgrade DHCP Port Based Allocation Error Disable MIB |
|
Environmental Ranges |
|
|
Operating temperature up to 5000 ft (1500 m) |
23ºF to 113ºF (-5ºC to 45ºC) |
|
Operating temperature up to 10,000 ft (3000 m) |
23ºF to 104ºF (-5ºC to 40ºC) |
|
Short-term exception at sea level* |
23ºF to 131ºF (-5ºC to 55ºC) |
|
Short-term exception up to 5000 feet (1500 m)* |
23ºF to 122ºF (-5ºC to 50ºC) |
|
Short-term exception up to 10,000 feet (3000 m)* |
23ºF to 113ºF (-5ºC to 45ºC) |
|
Short-term exception up to 13,000 feet (4000 m)* |
23º to 104ºF (-5ºC to 40ºC) |
|
Storage temperature up to 15,000 feet (4573 m) |
-13º to 158ºF (-25º to 70ºC) |
|
Operating altitude |
Up to 10,000 Feet (Up to 3000 Meters) |
|
Storage altitude |
Up to 13,000 (Up to 4000 Meters) |
|
Operating relative humidity |
10% to 95% noncondensing |
|
Storage relative humidity |
10% to 95% noncondensing |
