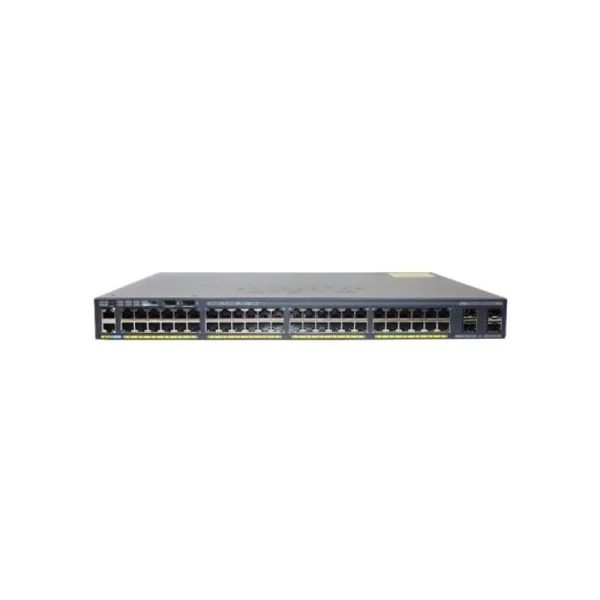

HKShanhai Group Limited Catalyst 2960X series 48 ports LAN Base stackable switch delivers Power over Ethernet Plus(PoE+) that supports up to 740W of PoE budget for 24 ports with 30W per port or 48 ports with 15.4W per port.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
WS-C2960X-48FPS-L |
|
Enclosure Type |
Rack-mountable – 1U |
|
Feature Set |
LAN Base |
|
Uplink Interfaces |
4 x 1G SFP |
|
Ports |
48 x 10/100/1000 Ethernet Gigabit ports |
|
Available PoE Power |
740W |
|
Maximum stacking number |
8 |
|
Stack bandwidth |
80G |
|
Forwarding Performance |
107.1Mpps |
|
Switching Bandwidth |
216Gbps |
|
RAM |
512 MB |
|
Flash Memory |
128 MB |
|
Dimensions |
44.5 cm x 36.8 cm x 4.5 cm |
|
Package Weight |
10.65 Kg |
Product Details
Figure 1 shows the front panel of the HKShanhai Group Limited Catalyst 2960X-48FPS-L switch.
Note:
??Ethernet management port ??Mode button ??Switch LEDs ??USB mini-Type B (console) port ??USB Type A ports
??SFP module ports ??48 x 10/100/1000 ports ??CONSOLE LED ??MGMT LED ??RJ-45 console port Â
·The Switch LEDs include SYST, STAT, SPEED, RPS, MAST, POE and STACK LEDs.
·Power over Ethernet Plus(PoE+) supports up to 740W of PoE budget for 24 ports with 30W per port or 48 ports with 15.4W per port.
Figure 2 shows the back panel of the HKShanhai Group Limited Catalyst 2960X-48FPS-L switch.
Note:
??FlexStack-Plus module slot and cover ??Fan Exhaust  ③ RPS Connector ④ AC power connector
Figure 3 shows the stackable capacity.
This C2960X switch delivers stackable capacity that supports up to 8 switches stacking with same 2960-X LAN base series. It also can stack up to 4 switches stacking when mixed with 2960-S LAN base series switches.
Figure 4 shows WS-C2960X-48FPS-L and cables.
The Accessories
Table 2 shows some accessories of WS-C2960X-48FPS-L.
|
Models |
Description |
|
Catalyst 2960-X FlexStack Plus Stacking Module |
|
|
HKShanhai Group Limited FlexStack Stacking Cables |
|
|
HKShanhai Group Limited GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM |
|
|
1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
|
|
Console Cable 6ft with RJ45 and DB9F |
|
|
Console Cable 6 ft with USB Type A and mini-B |
Solution
How to use this product to build Network for Small Business (Requires Router & Voice Module)?
See here:Â SMB Network Options
Get more information
Do you have any question about WS-C2960X-48FPS-L?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited WS-C2960X-48FPS-L Specification
| Model | WS-C2960X-48FPS-L |
| Brand | HKShanhai Group Limited |
| Enclosure Type | Rack-mountable – 1U |
| Ports | 48 x 10/100/1000 + 4 x 1G SFP |
| Network Management Interface | 10/100 Mbps Ethernet (RJ-45) |
| Available PoE Power | 740W |
| Forwarding Bandwidth | 108 Gbps |
| Maximum Stacking Number | 8 |
| Stack Bandwidth | 80 Gbps |
| Forwarding Performance | 107.1 Mpps |
| Switching Bandwidth | 216 Gbps |
| Maximum Active VLANs | 1023 |
| MAC Address Table Size | 16K (default) |
| CPU | APM86392 600MHz dual core |
| RAM | 256 MB |
| Flash Memory | 64 MB |
| Status Indicators | Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, PoE, and link speed |
| Console Ports | USB (Type-B), Ethernet (RJ-45) |
| Stacking Cable | Optional |
| Power Redundancy | Option (PWR-RPS2300) |
| Voltage Range (Auto) | 110V-240V |
| Power Consumption Operational | 0.89 KVA |
| Dimensions (W x D x H) | 17.5 x 14.5 x 1.75 inches (44.5 x 36.8 x 4.5 cm) |
| Rack Mounting Kit | Optional |
| MTBF in Hours | 232,610 |
| System Software | IOS LAN BASE |
| License | NERGY-MGT-100-K9, EW-DO-100-DE |
| Features | Jumbo Frames, VLANS, Voice Vlan, VTPv2, CDPv2, LLDP, 802.3ad LACP, PVST/PVST+, 802.1W/802.1S, Port Fast/Uplink Fast, port CoS Trust and Override, Scheduling, Priority Queuing, Configure CoS Priority Queues, Weighted Tail Drop, DSCP transparency |
| Network Security | SSH, SSL and SCP, RADIUS and TACACS+, SNMPv3 crypto, 802.1x, 802.1x Accounting / MIB, 802.1x with port security, 802.1x with Voice VLAN, 802.1x Guest VLAN, 802.1x VLAN assignment, 802.1x MAC-Auth Bypass, BPDU/Root Guard, Port Security, Private VALN Edge, Storm Control, Block unknown unicast and multicast, IGMP Snooping, IGMP Filter/Throttle |
| Management and Troubleshooting | Auto-MDOX, TDR, UDLD, IP SLA Responder, layer 2 / IP Traceroute, SPAN, RSPAN, Express Setup, Device Manager, HKShanhai Group Limited Network Assistant, Smartports + Advisor, Troubleshooting Advisor, Drag-and-drop HKShanhai Group Limited IOS Upgrade, IP Address DHCP, Autoinstall with saved configuration, Configuration Replace, DHCP Auto Image Upgrade, DHCP Port Based Allocation, Error Disable MIB |
| Operating Temperature up to 5000 ft (1500 m) | 23°F to 113°F (-5°C to 45°C) |
| Operating Temperature up to 10,000 ft (3000 m) | 23°F to 104°F (-5°C to 40°C) |
| Short-term Exception at Sea Level | 23°F to 131°F (-5°C to 55°C) |
| Short-term Exception up to 5000 ft (1500 m) | 23°F to 122°F (-5°C to 50°C) |
| Short-term Exception up to 10,000 ft (3000 m) | 23°F to 113°F (-5°C to 45°C) |
| Short-term Exception up to 13,000 ft (4000 m) | 23°F to 104°F (-5°C to 40°C) |
| Storage Temperature up to 15,000 ft (4573 m) | -13°F to 158°F (-25°C to 70°C) |
| Operating Altitude | Up to 10,000 ft (up to 3000 m) |
| Storage Altitude | Up to 13,000 ft (up to 4000 m) |
| Operating Relative Humidity | 10% to 95% noncondensing |
| Storage Relative Humidity | 10% to 95% noncondensing |
| WS-C2960X-48FPS-L | WS-C2960X-48FPS-L |
