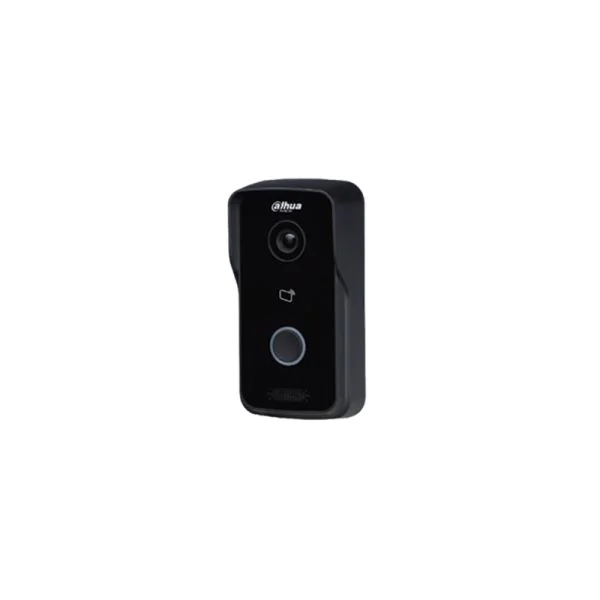

VTO2111D-WP-S1,Dahua 1MP Wi-Fi villa outdoor station, HD CMOS camera; large field of view angle; night vision; voice indication.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
VTO2111D-WP-S1 |
|
Main Processor |
Micro Processor |
|
Operation System |
Embedded LINUX OS |
|
Video Compression |
H.264 |
|
Image Sensor |
1/4″1MP CMOS |
|
Lens |
2.2mm |
|
Angle of View |
H:108��, V:81��, D:135�� |
|
Day/Night |
ICR |
|
Dimensions |
135mmx70.4mmx34.4mm |
Product Details
TheVTO2111D-WP-S1 provides these features:
* HD CMOS camera
* Large field of view angle
* Night vision
* Voice indication
* Remote intercom with mobile APP
* Airfly technology
* Surface mounted
* IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
GetMoreInformation
Do you have anyquestionabouttheVTO2111D-WP-S1
Contact us now via Live Chat or sales@router-switch.com.
Dahua VTO2111D-WP-S1 Specification
VTO2111D-WP-S1 Specification |
|
|
System |
|
|
Main Processor |
Micro Processor |
|
Operation System |
Embedded LINUX OS |
|
Video |
|
|
Video Compression |
H.264 |
|
Image Sensor |
1/4″Â 1MP CMOS |
|
Lens |
2.2mm |
|
Angle of View |
H:108°, V:81°, D:135° |
|
Day/Night |
ICR |
|
Audio |
|
|
Audio Compression |
G.711 |
|
Audio Input |
Omnidirectional Mic |
|
Audio Output |
Audio Output |
|
Bidirectional Talk |
Support Dual-way Bidirectional talk |
|
Operation Mode |
|
|
Keypad Single |
Mechanical Button |
|
Reader |
Mifare Card |
|
Body Approaching |
0.6m |
|
Interface |
|
|
Door Control |
2(1 relay out for main lock, 1 extended by access control module) |
|
Alarm In |
2(1ch unlock button, 1ch feedback) |
|
RS485 |
1 |
|
Network |
|
|
Wi-Fi |
IEEE802.11b/g/n |
|
Ethernet |
10M/100Mbps Self-adaptive |
|
Network Protocol |
TCP/IP |
|
General |
|
|
Ingress Protection  |
IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.) |
|
Tamper Switch |
1 |
|
Wireless Frequency |
433MHz |
|
Memory Slot |
Micro SD, Max 32G |
|
Installation |
Surface |
|
Material |
Plastic |
|
Power |
DC 12V,PoE(802.3af) |
|
Power Consumption |
Work <7W |
|
Working Environments |
??span>30°C to +60°C |
|
Relative Humidity |
10%RH??/span>90%RH |
|
Dimensions |
135mmx70.4mmx34.4mm |
