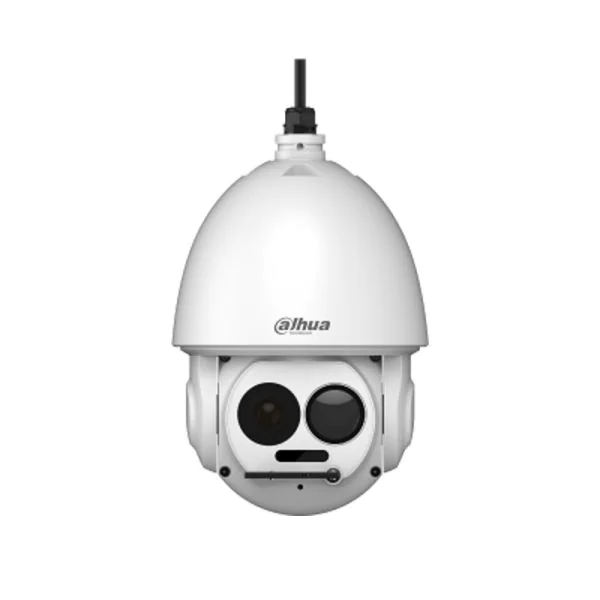

The Dahua TPC-SD8621 is a cutting-edge Thermal Network Hybrid Speed Dome Camera designed for high-efficiency surveillance. Leveraging thermal imaging technology, it ensures precision and reliability even in the most challenging conditions. Perfect for a variety of security applications, it combines advanced features to deliver unparalleled performance.
Quick Spec
| Resolution | 2MP |
| Optical Zoom | 21x |
| Thermal Lens | 35mm |
| PTZ Function | Yes |
| IP Rating | IP66 |
Product Features
- High-resolution 2MP thermal imaging sensor
- 21x optical zoom capability
- Rapid PTZ functionality for wide-area coverage
- Robust IP66 weatherproof design
- Smart tracking and intelligent analysis
Product Applications
- Perimeter Security: Ideal for monitoring large perimeters and detecting intrusions in real-time.
- Traffic Management: Effective for monitoring and managing traffic flow and detecting incidents remotely.
- Industrial Surveillance: Suitable for securing industrial sites and ensuring operational safety.
Supported Options
| Mount Bracket | PFA150 |
| Power Adapter | PFM320D-015 |
| Network Cable | PFM921I-6UN-C |
Compare to Similar Items
| Model | Differences |
| Dahua TPC-SD6421 | Lower resolution (1MP), lesser optical zoom (10x) |
| Dahua TPC-BF2120 | Fixed camera, no PTZ functionality |
| Dahua TPC-SD8320 | Smaller thermal lens (25mm), lower resistance to weather conditions |
Get more information
Check Dahua TPC-SD8621 price and TPC-SD8621 datasheet, buy Dahua TPC-SD8621 Camera with best price and fast shipping. Free Live Chat are supported. Contact us through Live Chat or sales@router-switch.com for further information about the product and its price.
Dahua TPC-SD8621 Specification
TPC-SD8621 Specifications |
|
| Brand | Dahua |
| Model | TPC-SD8621 |
| Product Type | Thermal Network Hybrid Speed Dome Camera |
| Resolution | 640 x 512 thermal resolution |
| Pixel Pitch | 12°m |
| Thermal Lens | 37mm |
| Optical Zoom | 32x |
| Visible Resolution | 1920 x 1080 |
| Frame Rate | 30fps |
| Min. Illumination | 0.005 Lux @F1.6 |
| Pan Range | 360° endless |
| Tilt Range | -20°~90° (auto flip) |
| Network Protocols | IPv4/IPv6, HTTP, HTTPS, FTP, SMTP, SNMP, NTP, RTSP |
| Power Supply | DC 24V/3A (°25%) |
| Power Consumption | Max. 40W |
| Ingress Protection | IP67 |
| Operating Temperature | -40°C to +65°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | °95% RH |
| Dimension | 364mm x 160mm x 162mm |
| Alarm Input/Output | 2/2 |
| Audio Input/Output | 1/1 |
