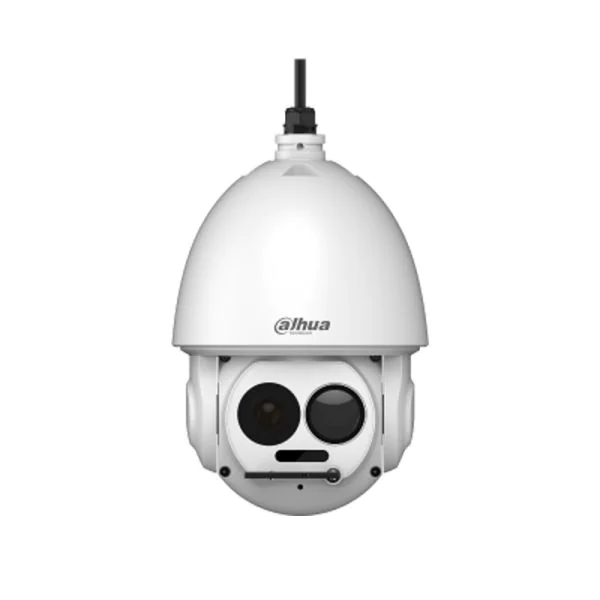

The Dahua TPC-SD8421-T, a state-of-the-art Thermal Network Hybrid Speed Dome, provides unmatched surveillance capabilities by combining thermal imaging with high-speed pan and tilt features. Ideal for monitoring large areas in both day and night conditions, this robust device ensures advanced security with unparalleled precision and clarity.
Quick Spec
| Brand | Dahua |
| Model | TPC-SD8421-T |
| Resolution | 640×512 (Thermal) |
| Lens | 13mm/25mm |
| Pan/Tilt Range | 360��/90�� |
Product Features
- Integrates thermal imaging and optical zoom for superior surveillance
- Advanced pan and tilt functionalities for wide area coverage
- High sensitivity thermal sensor with 640×512 resolution
- Dual-lens system for both thermal and optical imaging
- Robust and weatherproof design suitable for outdoor installations
Product Applications
- Border and perimeter security for detecting intrusions
- Large industrial area surveillance for preventing accidents and theft
- Marine and harbor monitoring to ensure navigational safety and security
Supported Options
| Thermal PTZ Mount | DM2-PM |
| Environmental Housing | EHA-TH2 |
| Power Supply Unit | PSU-48V60W |
Compare to Similar Items
| Model | Differences |
| TPC-SD8321-T | Lower resolution thermal sensor, fewer pan/tilt capabilities |
| TPC-SD8521-T | Higher zoom capability but lacks dual-lens system |
| TPC-SD8621-T | Increased thermal sensitivity but heavier and less compact |
Get more information
To learn more about the Dahua TPC-SD8421-T and its pricing, please contact us through Live Chat or email us at sales@router-switch.com. Check Dahua TPC-SD8421-T price and TPC-SD8421-T datasheet, buy Dahua TPC-SD8421-T Thermal Network Hybrid Speed Dome with best price and fast shipping. Free Live Chat are supported.
Dahua TPC-SD8421-T Specification
TPC-SD8421-T Specifications |
|
| Brand | Dahua |
| Model | TPC-SD8421-T |
| Product Type | Thermal Network Hybrid Speed Dome |
| Resolution | 2MP Optical, 640 x 512 Thermal |
| Optical Zoom | 40x |
| Thermal Lens | 13mm |
| Image Sensor | 1/2.8° CMOS |
| Minimum Illumination | 0.005 Lux @ F1.6 |
| IR Distance | Up to 200m |
| Video Compression | H.265/H.264/MJPEG |
| Frame Rate | Max 25/30fps@1080P |
| Network Interface | 1 RJ-45 (10/100Base-T) |
| Storage | MicroSD Card (up to 256GB) |
| Audio In/Out | 1/1 Channel |
| Alarm In/Out | 7/2 Channel |
| Power Supply | AC 24V/3A |
| Power Consumption | Max. 60W |
| Operating Temperature | -40°C to +70°C |
| Ingress Protection | IP66 |
| Dimensions | °204.7 x 359.9mm |
