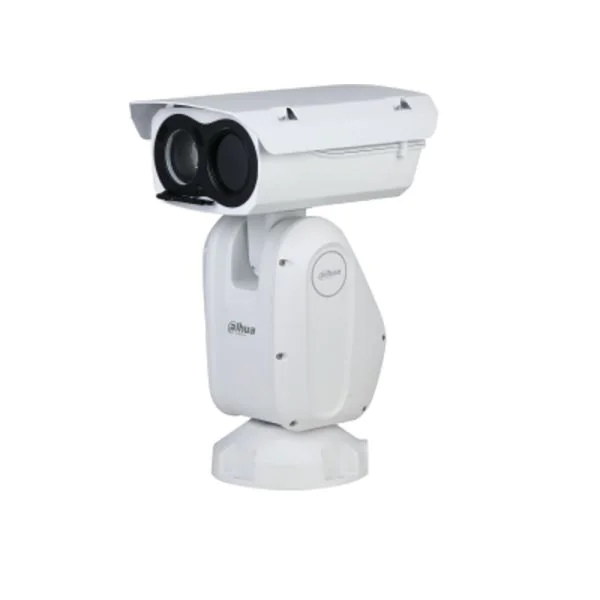

The Dahua TPC-PT8621A Thermal Network Hybrid Pan & Tilt Camera is a cutting-edge surveillance solution combining thermal and visible light imaging technologies. Designed for enhanced security and monitoring, this hybrid camera excels in various environments, providing superior image quality and reliable 24/7 operation.
Quick Spec
| Brand | Dahua |
| Model | TPC-PT8621A |
| Imaging Sensor | Thermal and Visible Light |
| Resolution | 640×512 (Thermal) |
| Pan/Tilt Range | 360�� Continuous Pan, -90�� to +90�� Tilt |
Product Features
- Dual-imaging technology for enhanced detection capabilities
- High thermal sensitivity for accurate heat detection
- Integrated alarm-based on human/vehicle classification
- Robust metal construction for outdoor use, IP66 rated
- Smart motion detection with quick target lock and follow
Product Applications
- Perimeter security for industrial complexes and power plants
- Border surveillance with multi-layer detection and monitoring
- Fire detection and prevention in forests and warehouses
Supported Options
| Wall Mount | PFB302W |
| Ceiling Mount Adapter | PFA200G |
| IR Illuminator | LR1002-1ET |
Compare to Similar Items
| Model | Difference |
| TPC-SD8220-T | Lower thermal resolution |
| TPC-BF5601-B | Fixed lens, no pan/tilt capability |
| TPC-PT8421A | Smaller sensor size and lower max tilt angle |
Get more information
Check Dahua TPC-PT8621A price and TPC-PT8621A datasheet, buy Dahua TPC-PT8621A Camera with best price and fast shipping. Free Live Chat are supported. For further information about the product and its price, please contact through Live Chat or sales@router-switch.com.
Dahua TPC-PT8621A Specification
TPC-PT8621A Specifications |
|
| Brand | Dahua |
| Camera Model | TPC-PT8621A |
| Type | Thermal Network Hybrid Pan & Tilt Camera |
| Resolution | 640 x 512 pixels |
| Lens Type | Motorized Varifocal |
| Thermal Sensitivity | ° 50mK |
| Pan Range | 360° Continuous Rotation |
| Tilt Range | -90° to +90° |
| Optical Zoom | 30x Optical Zoom |
| Digital Zoom | 12x Digital Zoom |
| Frame Rate | 1 to 25/30 fps |
| Storage | MicroSD card slot, up to 128GB |
| Network Protocol | IPv4 / IPv6 |
| Operating Temperature | -40°C to +70°C |
| Power Supply | DC 12V/3A, PoE |
| Power Consumption | Max. 24W |
| Ingress Protection | IP66 |
| Dimension | 230 mm x 368 mm |
| Weight (excluding) | Weight specification is excluded. |
| Audio Interface | 1 input, 1 output |
| Alarm Interface | 2 inputs, 1 output |
